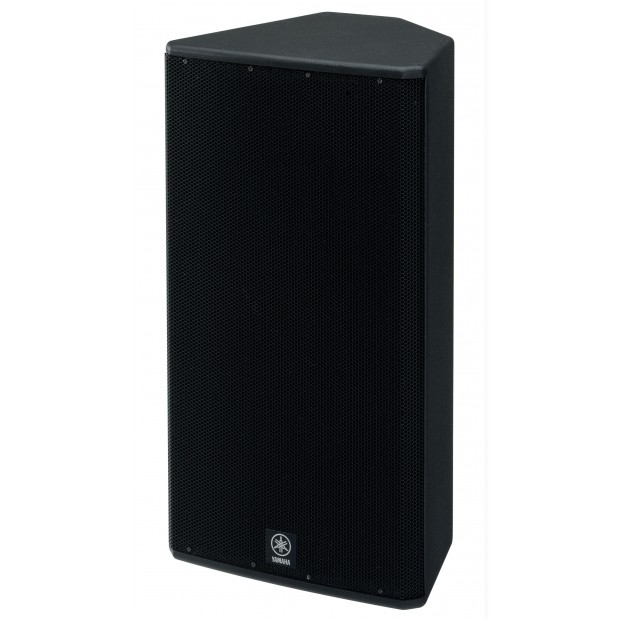

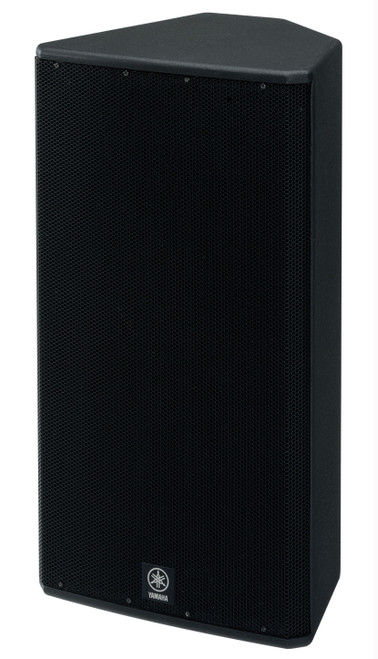

Yamaha IF2112/AS 12" Loudspeaker with 60-100 ° x 60 ° Asymmetrical Horn (Discontinued)
Write a Review
Yamaha IF2112/AS 12" Loudspeaker with 60-100 ° x 60 ° Asymmetrical Horn (Discontinued)
Part #:
IF2112/AS
Model #:
IF2112/AS
Availability:
No Longer Available
Contact us for comparable solutions.
Certified Audio Expertise
FREE Custom System Design
Get Expert Help Fast
Description
The IF2112/AS model features a "multiangle" design that allows them to be used as floor monitors as well as house sound. The IF2112/AS is multi-purpose high-power 2-way speaker system. The IF2112/AS features a 12-inch woofer, and an asymmetrical horn (hence the "AS" designation). The result is exceptionally clear and uniform high-frequency sound over a wide listening area. Dispersion can be controlled by rotating the horn in 90-degree increments, allowing the speaker to easily be installed even in cramped locations with either vertical or horizontal mounting.
Features
- Asymmetrical horn (60°-100° x 60° dispersion pattern)
- Horn can be rotated in 90° increments to any of four positions
- Linear phase design ensures constant group delay (correct timealignment)
- Uniform phase response throughout the entire Installation series minimizes destructive interference between speakers
- Similar sound characteristics make using different models together easy
- The largest size horn possible in an enclosure of this size, giving excellent pattern control with low distortion and good resolution
- FRP horn construction minimizes unwanted resonance
- Multi-angle cabinet design enables floor monitor applications
- Switchable between single-amp and bi-amp operation
- Sixteen 10 mm (M10) threaded inserts
- Four M10 shoulder eyebolts for flying are included as standard
- Optional matching U-bracket available

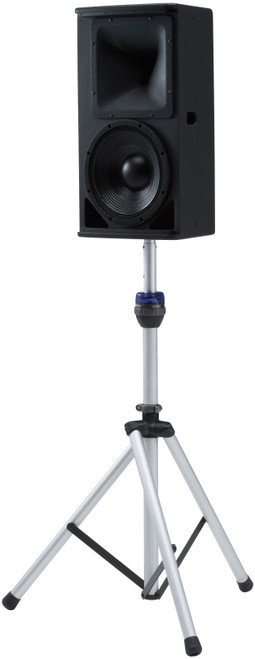

- Pole mountable
- Two handles for carrying comfort
- Parallel-wired two Neutrik NL4 and barrier strip connectors
- Durable black or white finish, which can be painted to match any interior
Specifications
| Drive Mode | Passive, Bi-amp mode (LF, HF) |
|---|---|
| Frequency Range (-10 dB) | 55 Hz-20 kHz (Bi-amp mode) |
| Frequency Range (±3 dB) | 70 Hz-20 kHz (Bi-amp mode) |
| Nominal Coverage (-6 dB) | 60-100° x 60°, can be rotated to 60° x 60-100° |
| Power Rating | NOISE: 600W; PGM: 1200W; MAX: 2400W |
| Power Rating (Bi-amp LF) | NOISE: 700W (AES); PGM: 1400W (AES); MAX: 2800W (AES) |
| Power Rating (Bi-amp HF) | NOISE: 110W (AES); PGM: 220W (AES); MAX: 440W (AES) |
| Nominal Impedance | 8 ohms |
| Sensitivity (1 W@1 m) SPL | Passive: 96dB; Bi-amp LF: 96dB; Bi-amp HF: 108dB |
| Calculated Peak SPL | Passive: 130dB; Bi-amp LF: 130dB; Bi-amp HF: 134dB |
| Calculated Continuous SPL | Passive: 124dB; Bi-amp LF: 124dB; Bi-amp HF: 128dB |
| Components (LF) | 12" woofer, 4" voice coil |
| Components (HF) | Rotatable Constant Directivity Horn, 1.4" (38 mm) exit, 3" (76 mm) Voice Coil Compression Driver |
| Shape | Multi-angle wedge |
| Material | 5/8 inch (16 mm), 11-ply Finnish Birch |
| Grill | 16 gauge powder coated perforated steel grilles, backed w/ acoustically transparent reticulated foam |
| Connectors | 2 x Neutrik NL4 and barrier strip, wired in parallel |
| Flying Hardware | 16 x M10 for shoulder eyebolts and U-bracket |
| Pole Mounts | One |
| Handle | Two |
| Dimensions (H x W x D) | 27.4" (695 mm) x 14.9" (378 mm) x 13.1" (333 mm) |
| Weight | 64 lbs (29 kg) |
Reviews
Write a ReviewRelated Products
Sold Out

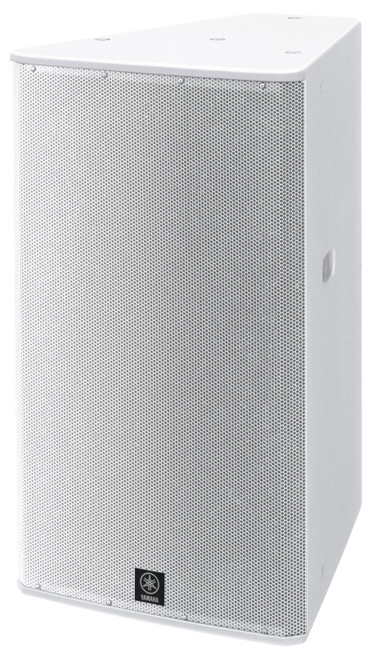

Yamaha IF2115/AS 15" Loudspeaker 60 - 100 ° x 60 ° Asymmetrical Horn (Discontinued)
The IF2115/AS model features a “multiangle” design that allows them to be used as floor monitors as well as house sound.
The IF2115/AS is multi-purpose high-power 2-way speaker system. The...
MSRP:
$2,259.99
$2,259.00
Usually arrives in 5-9 business days.
Sold Out

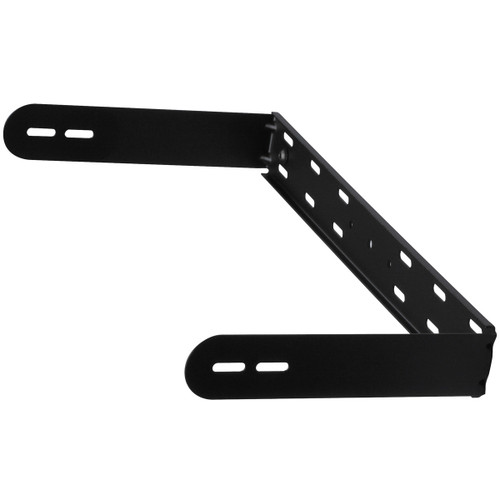

Yamaha UB2112 U-Bracket for IF2112 Speakers - Black (Discontinued)
