Yamaha IF2115/AS 15" Loudspeaker 60 - 100° x 60° Asymmetrical Horn (Discontinued)
Yamaha IF2115/AS 15" Loudspeaker 60 - 100° x 60° Asymmetrical Horn (Discontinued)
Yamaha IF2115/AS 15" Loudspeaker 60 - 100° x 60° Asymmetrical Horn (Discontinued)
Yamaha IF2115/AS 15" Loudspeaker 60 - 100° x 60° Asymmetrical Horn (Discontinued)
Yamaha IF2115/AS 15" Loudspeaker 60 - 100° x 60° Asymmetrical Horn (Discontinued)
Yamaha IF2115/AS 15" Loudspeaker 60 - 100° x 60° Asymmetrical Horn (Discontinued)
Yamaha IF2115/AS 15" Loudspeaker 60 - 100° x 60° Asymmetrical Horn (Discontinued)
By Yamaha

Yamaha IF2115/AS 15" Loudspeaker 60 - 100° x 60° Asymmetrical Horn (Discontinued)

Write a Review
Part #:
IF2115/AS
Model #:
IF2115/AS
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

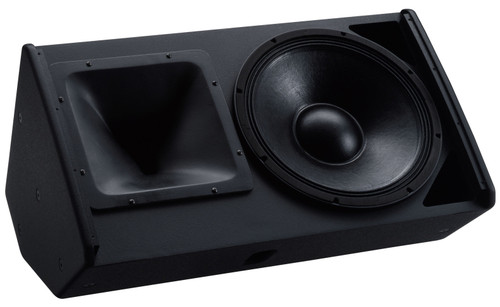

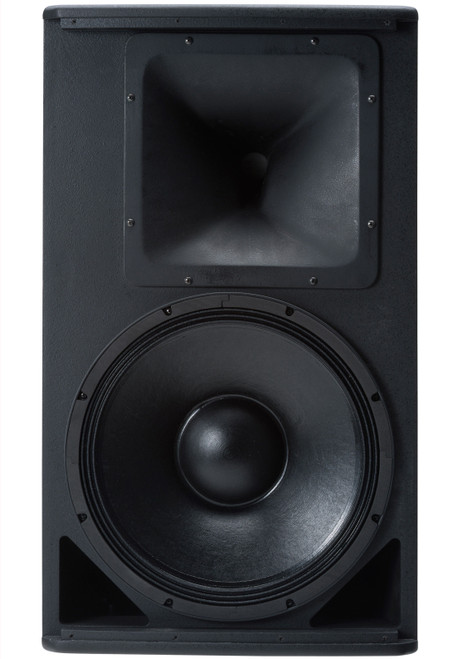

The Yamaha IF2115/AS model features a “multiangle” design that allows them to be used as floor monitors as well as house sound.

Description

The IF2115/AS model features a “multiangle” design that allows them to be used as floor monitors as well as house sound.

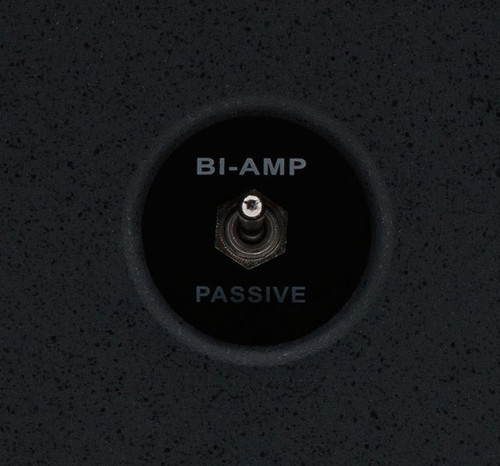

The IF2115/AS is multi-purpose high-power 2-way speaker system. The IF2115/AS features a 15-inch woofer‚ and an asymmetrical horn (hence the “AS” designation). The result is exceptionally clear and uniform high-frequency sound over a wide listening area. Dispersion can be controlled by rotating the horn in 90-degree increments, allowing the speaker to easily be installed even in cramped locations with either vertical or horizontal mounting. The IF2115/AS is also extremely versatile, as they can be installed vertically, hung from ceilings, placed on the floor as stage foldback monitors, or mounted on pole stands. A single control allows you to easily switch the speaker between bi-amp mode, which provides greater sonic control and superior quality, than passive mode.

Features
  • Linear phase design ensures constant group delay (correct timealignment).
  • Uniform phase response throughout the entire Installation series minimizes destructive interference between speakers.
  • Similar sound characteristics make using different models together easy.
  • Asymmetrical horn (60°-100° x 60° dispersion pattern).
  • Horn can be rotated in 90° increments to any of four positions.
  • The largest size horn possible in an enclosure of this size, giving excellent pattern control with low distortion and good resolution.
  • FRP horn construction minimizes unwanted resonance.
  • Multi-angle cabinet design enables floor monitor applications.
  • Switchable between single-amp and bi-amp operation.
  • Sixteen 10 mm (M10) threaded inserts.
  • Four M10 shoulder eyebolts for flying are included as standard.
  • Durable black or white finish, which can be painted to match any interior.
  • Optional matching U-bracket available.
  • Pole mountable.
  • Two handles for carrying comfort.
  • Parallel-wired two Neutrik NL4 and barrier strip connectors.

Specifications
Nominal coverage @-6dB 60°-100° x 60° (rotatable)
Nominal impedance Passive: 8Ω; Bi-amp LF/HF: 8Ω
Power rating Passive NOISE: 600W; PGM: 1200W; MAX: 2400W
Power rating (Bi-amp) NOISE: LF - 700W; HF - 110W
PGM: LF - 1400W, HF - 220W
MAX: LF - 2800W, HF - 440W
Recommended amplifier Passive - T5n, PC9501N, XP7000; Bi-amp LF/HF - LF: T5n, PC9501N, HF: XP1000, PC2001N
Sensitivity (1W, 1m) Passive - 97dB SPL; Bi-amp mode - LF: 98dB SPL, HF: 108dB SPL
Continuous SPL (calculated) Passive - 125dB SPL; Bi-amp mode - LF: 126dB SPL, HF: 128dB SPL
Peak SPL (calculated) Passive - 131dB SPL; Bi-amp mode - LF: 132dB SPL, HF: 134dB SPL
Components (LF) 15" woofer, 4" voice coil
Components (HF) Rotatable constant directivity horn, 1/4" exit, 3" diaphram compression driver
Frequency range (-10dB) 45 Hz-20k Hz
Connectors 2x NL4 and barrier strip, wired in parallel
Shape Multi-angle wedge
Flying hardware 16x M10
Dimensions (W x H x D) 30.3" (770 mm) x 17.6" (448 mm) x 14.7" (374 mm)
Weight 77 lbs (35 kg)
