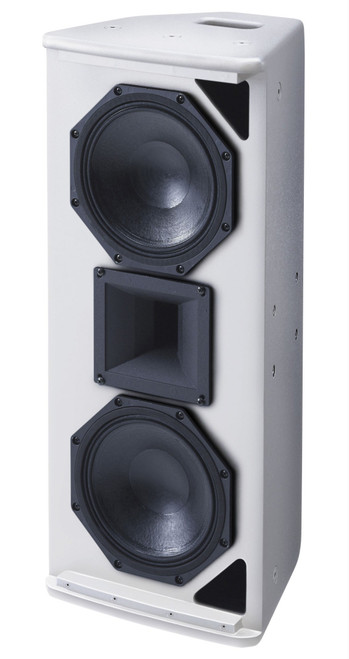

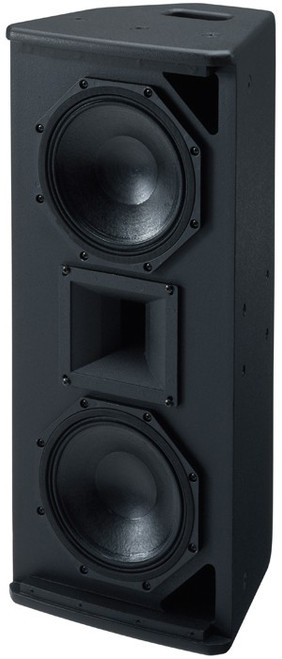

Yamaha IF2208 Dual 8" Loudspeaker with 90° x 60° Rotatable Horn (Discontinued)

Name: Yamaha IF2208 Dual 8" Loudspeaker with 90° x 60° Rotatable Horn (Discontinued)
Brand: Yamaha
SKU: YAMAHA-IF2208
Price: 1129 USD
Availability: OutOfStock

Write a Review

Part #:

IF2208

Model #:

IF2208

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Yamaha IF2208 is highly versatile, highly compact 2-way full-range speaker system that is ideal for small-to-medium applications.

Description

Yamaha's Installation Series Speakers address a number of important issues that give them unprecedented performance and handling characteristics for live sound applications, including permanent installations. In particular, phase characteristics have been kept smooth and consistent throughout the entire series, so you can mix and match speakers to suit any system and venue without ending up with hot and dead spots due to phase interference. And of course sonic quality is superb throughout the entire reproduction range so the full impact of the source material reaches the audience undiluted.

Features

90º x 60º dispersion pattern
Horn can be rotated 90-degrees, allowing vertical or horizontal mounting
Multi-angle cabinet design enables floor monitor applications
1.75" high-frequency compression driver with 1" exit
Eleven 10mm-screw (M10) and six 8mm-screw (M8) suspension points provided for flexible rigging
Parallel-wired two Neutrik NL4 and barrier strip connectors
Optional matching U-bracket available
Durable black or white finish (can be painted to match any interior)

Specifications

Drive Mode	Passive
Nominal Impedance	8 ohms
Nominal Coverage (H x V, -6 dB)	90° x 60°, can be rotated to 60° x 90°
Frequency Range (-10 dB)	55 Hz-19k Hz
Power Rating	NOISE 200W; PGM 400W; MAX 800W
Sensitivity (1 W@1 m)	95dB SPL
Calculated Peak	124dB SPL
Calculated Continuous	118dB SPL
Components (LF)	2x 8" woofer 2" voice coil
Components (HF)	Rotatable Constant Directivity Horn, 1" (25 mm) exit, 1.7" (44 mm) Voice Coil Compression Driver
Shape	Multi-angle wedge
Material	5/8 inch (16 mm), 11-ply Finnish Birch
Grill	16 gauge powder coated perforated steel grilles, backed w/ acoustically transparent reticulated foam
Connectors	2 x Neutrik NL4 and barrier strip, wired in parallel
Flying Hardware	11x M10, 6x M8
Pole Mounts	One
Handle	One
Dimensions (H x W x D)	26.5" (673 mm) x 11.1" (283 mm) x 9.8" (250 mm)
Weight	42 lbs (19 kg)
