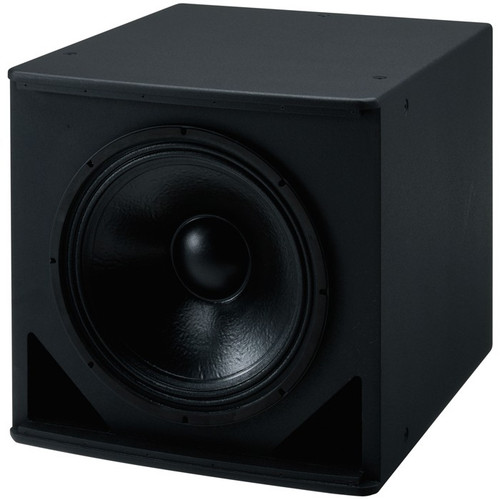

The Yamaha IS1118 is a high power 18" subwoofer ideal for medium to large-scale installations.

Description

The IS1118 is a high power subwoofer system comprised of a single 18-inch woofer. This IS1118 can be clustered in the same fashion as the 2-way models. Many eyebolt suspension points have been provided for easy flying. The IS1118 is an ideal match for full-range speakers such as IF2112/2115 - for maximum power and full-spectrum reproduction.

Features
  • High power 18" subwoofer
  • 3/4 inch (19 mm), 13-ply Finnish Birch for Baffle
  • Internally braced construction
  • Twelve 10 mm (M10) threaded inserts
  • Four M10 shoulder eyebolts for flying are included as standard
  • Durable black or white finish, which can be painted to match any interior
  • Optional matching Array frame available
  • Two handles for carrying comfort

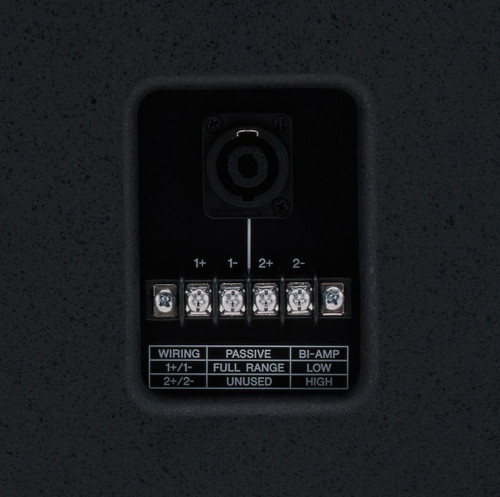

  • Parallel-wired Neutrik NL4 and barrier strip connectors

Specifications
Frequency Range (-10 dB) 33Hz-3kHz
Power Rating NOISE: 700W; PGM: 1400W; MAX: 2800W
Nominal Impedance 8ohms
Sensitivity (1 W@1 m) SPL 96dB SPL
Calculated Peak SPL 130dB SPL
Calculated Continuous SPL 124dB SPL
Components 18" woofer, 4" voice coil
Shape Rectangular
Material 3/4 inch (19 mm), 13-ply Finnish Birch (Baffle), 5/8 inch (16 mm), 11-ply Finnish Birch
Grill 16 gauge powder coated perforated steel grilles, backed w/ acoustically transparent reticulated foam
Connectors 1 x Neutrik NL4 and barrier strip, wired in parallel
Flying Hardware 12x M10
Handle Two
Dimensions (H x W x D) 23.3" (591 mm) x 24" (610 mm) x 27.9" (709 mm)
Weight 97 lbs (44 kg)

Related Products

Sold Out

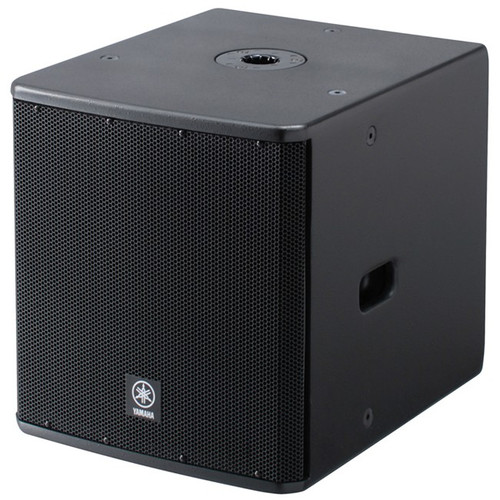

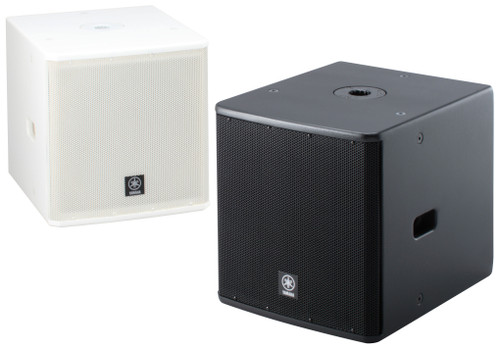

Yamaha IS1112 12" 8 ohm Subwoofer (Discontinued) Yamaha IS1112 12" 8 ohm Subwoofer (Discontinued)
