The M7CL series is a digital live-sound console that carries on the digital evolution from the acclaimed PM1DV2 and PM5D consoles. It includes an impressive array of advanced concepts such as the "Centralogic" control interface that makes it as easy and intuitive to use as an analog console, and in-depth access management facilities that will be particularly appreciated in installations. The M7CL is familiar and comfortable to use, offering a level of convenience that overturns the preconception that "digital is difficult". A surprising range of functions that you would normally have to supply in the form of peripheral equipment is built in, and all of this is provided in a space that is dramatically less than an analog console of similar scope.

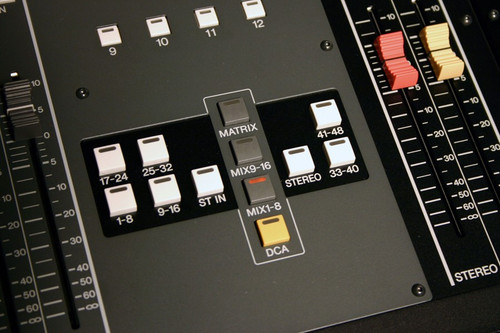

Centralogic is an innovative Yamaha approach to console operation that allows total control from an easily accessible central area. Blocks of eight channels can be brought to the center of the console via simple navigation keys, and operated via a central interface including a touch-panel display and encoders directly below the display. Yamaha's acclaimed Selected Channel interface is also implemented, providing a range of operating options that make this advanced digital console as easy and intuitive as an analog console to use in live sound applications.
The M7CL has been designed to offer a visually familiar, comprehensive control environment. Every aspect of the console, from the layout of the navigation keys to the advanced graphic on-screen features including channel name icons and a virtual rack for EQ and effects, provides visual cues that let you operate major system functions without having to refer to a manual. And with the touch-panel display you can simply reach out and operate functions as if they were physical controls. The M7CL integrates everything you need for top-quality live sound with an intuitive interface that makes the transition from analog to digital a real pleasure.
| Input Terminal: INPUT 1-32 | GAIN: +10dB |
|---|---|
| Input Terminal: ST IN 1-4 [L,R] | GAIN: -62dB |
| Input Terminal: TALKBACK | GAIN: -60dB, -16dB |
| Actual LoadImpedance | 3 kΩ |
| For Use WithNominal | 50-600Ω Mics & 600Ω Lines |
| INPUT 1-32 | –10dBu (245 μV) |
| ST IN 1-4 [L,R] | –82dBu (61.6 μV) |
| TALKBACK | –70dBu (0.245 μV), –26dBu (38.8 μV) |
| INPUT 1-32 | +10dBu (2.45 μV) |
| ST IN 1-4 [L,R] | –62dBu (0.616 mV) |
| TALKBACK | –60dBu (0.775μV), –16dBu (0.123 μV) |
| INPUT 1-32 | +30dBu (24.5 μV) |
| ST IN 1-4 [L,R] | –42dBu (6.16 mV) |
| TALKBACK | –40dBu (7.75 μV), +4dBu (1.23 μV) |
| Connector | XLR-3-31 type (Balanced) |
| Output Terminal: OMNI OUT 1-16 | Actual Source Impedance: 75 kΩ |
| Output Terminal: OMNI OUT 1-16 | For Use WithNominal: 600 Ω Lines |
| Output Terminal: OMNI OUT 1-16 | +24 dB (default) |
| Output Terminal: PHONES | Actual Source Impedance: 15 kΩ |
| Output Terminal: PHONES | For Use With Nominal: 8 Ω Phones 40 Ω Phones |
| OMNI OUT 1-16 | +4 dBu (1.23 V) |
| PHONES | 75 mW, 65 mW |
| OMNI OUT 1-16 | +24 dBu (12.28 V) |
| PHONES | 150 mW |
| Connector | XLR-3-32 type (Balanced), Stereo Phone Jack (TRS)(Unbalanced) |
| Terminal | 2TR OUT DIGITAL, AES/EBU |
| Format | AES/EBU Professional Use |
| Data Length | 24 bit |
| Level | RS422 |
| Connector | XLR-3-32 type (Balanced) |
| Terminal | NETWORK, MIDI: IN OUT, WORD CLOCK: IN OUT, LAMP 1 (32ch), 2 (48 ch), USB HOST |
| Format (NETWORK) | IEEE802.3 |
| Format (MIDI) | MIDI |
| Format (USB HOST) | USB 1.1 |
| Level (WORD CLOCK) | TTL/75 Ω |
| Level (LAMP 1(32ch), 2(48ch)) | 0 V – 12 V |
| Connector (NETWORK) | RJ-45 |
| Connector (MIDI) | DIN Connector 5P |
| Connector (WORD CLOCK) | BNC Connector |
| Connector (REMOTE) | D-Sub Connector 9P (Male) |
| Connector (LAMP 1(32ch), 2(48ch)) | XLR-4-31 type |
| Connector (USB HOST) | A type USB Connector |
| Sampling Frequency (Internal) | 44.1 kHz, 48 kHz |
| Sampling Frequency (External) | 44.1 kHz (–10%) to 48 kHz (+6%) 44.1 kHz (–2.5%) to 48 kHz (+2.5%) |
| Signal Delay | Less than 2.5 ms INPUT or OMNI IN to OMNI OUT (@ Fs = 48 kHz) |
| Fader | 100mm motorized x 62 (46) |
| Fader Resolution | +10 to –138, –dB (1024 steps/100 mm) |
| Maximum Voltage Gain | M7CL-32/48: 86 dB INPUT 1-48 to OMNI OUT |
| Maximum Voltage Gain | M7CL-48ES: 86 dB OMNI IN 1-8 to OMNI OUT 1-8 |
| Crosstalk (@1kHz) | -100dB, -80dB Adjacent input Channels |
| Crosstalk (@1kHz) | M7CL-32/48/48ES -100dB, -80dB Input to output |
| Power Requirements (wattage) | 250 W, 100V 50/60Hz |
| Operation free-air Temperature Range | +10 °C to +35 °C |
| StorageTemperature Range | –20 °C to +60 °C |
| Dimensions (H x W x D) | 11.25" (286 mm) x 41.75" (1060 mm) x 27.63" (701 mm) |
| Net Weight | 92.6 lbs (42 kg) |
