The M7CL includes an impressive array of advanced concepts such as the Centralogic control interface that makes it as easy and intuitive to use as an analog console, and in-depth access management facilities that will be particularly appreciated in installations. The M7CL is familiar and comfortable to use, offering a level of convenience that overturns the preconception that digital is difficult. A surprising range of functions that you would normally have to supply in the form of peripheral equipment is built in, and all of this is provided in a space that is dramatically less than an analog console of similar scope. The M7CL is the ideal digital mixing console for medium size live sound applications that have previously been handled by analog gear.
The M7CL has been designed to offer a visually familiar, comprehensive control environment. Every aspect of the console, from the layout of the navigation keys to the advanced graphic on-screen features including channel name icons and a virtual rack for EQ and effects, provides visual cues that let you operate major system functions without having to refer to a manual. And with the touch-panel display you can simply reach out and operate functions as if they were physical controls. The M7CL integrates everything you need for top-quality live sound with an intuitive interface that makes the transition from analog to digital a real pleasure.
| Input Terminals : INPUT 1-48 | GAIN : –62 dB |
|---|---|
| Input Terminals : ST IN 1-4 [L,R] | GAIN : –62 dB |
| Input Terminals : TALKBACK | GAIN : –60 dB, –16 dB |
| Actual LoadImpedance | 3 kΩ |
| For Use WithNominal | 50-600Ω Mics & 600Ω Lines |
| INPUT 1-48 | –82dBu (61.6 μV) |
| ST IN 1-4 [L,R] | –82dBu (61.6 μV) |
| TALKBACK | –70dBu (0.245 μV), –26dBu (38.8 μV) |
| INPUT 1-48 | –62dBu (0.616 mV) |
| ST IN 1-4 [L,R] | –62dBu (0.616 mV) |
| TALKBACK | –60dBu (0.775μV), –16dBu (0.123 μV) |
| INPUT 1-48 | –42dBu (6.16 mV) |
| ST IN 1-4 [L,R] | –42dBu (6.16 mV) |
| TALKBACK | –40dBu (7.75 μV) |
| Connector | XLR-3-31 type (Balanced) 2 |
| Output Terminals : OMNI OUT 1-16 | Actual Source Impedance : 75 kΩ |
| Output Terminals : PHONES | Actual Source Impedance : 15 kΩ |
| Output Terminals : OMNI OUT 1-16 | For Use With Nominal : 600 Ω Lines |
| Output Terminals : PHONES | For Use With Nominal : 8 Ω Phones, 40 Ω Phones |
| Output Terminals : OMNI OUT 1-16 | GAIN SW 3 : +24 dB (default) |
| Output Level : OMNI OUT 1-16 | Nominal : +4 dBu (1.23 V) |
| Output Level : PHONES | Nominal : 75 mW 4, 65 mW 4 |
| Output Level : OMNI OUT 1-16 | Max. Before Clip : +24 dBu (12.28 V) |
| Output Level : PHONES | Max. Before Clip : 150 mW |
| Connector | XLR-3-32 type (Balanced) 1, Stereo Phone Jack (TRS)(Unbalanced) |
| Terminal | 2TR OUT DIGITAL 1 : AES/EBU |
| Format | AES/EBU Professional Use |
| Data Length | 24 bit |
| Level | RS422 |
| Connector | XLR-3-32 type (Balanced) |
| Terminal : NETWORK | Format : IEEE802.3 |
| Terminal : MIDI (IN, OUT) | Format : MIDI |
| Terminal : USB HOST | Format : USB 1.1 |
| Terminal : WORD CLOCK (IN, OUT) | Level : TTL/75 Ω |
| Terminal : REMOTE | Level : RS422 |
| Terminal : LAMP | Level : 0 V – 12 V |
| Terminal : NETWORK | Connector : RJ-45 |
| Terminal : MIDI (IN, OUT) | Connector : DIN Connector 5P |
| Terminal : WORD CLOCK (IN, OUT) | Connector : BNC Connector |
| Terminal : REMOTE | Connector : D-Sub Connector 9P (Male) |
| Terminal : LAMP | Connector : XLR-4-31 type 1 |
| Terminal : USB HOST | Connector : A type USB Connector |
| Sampling Frequency | Internal: 44.1 kHz, 48 kHz |
| Sampling Frequency | External: 44.1 kHz (–10%) to 48 kHz (+6%) 44.1 kHz (–2.5%) to 48 kHz (+2.5%) |
| Signal Delay | Less than 2.5 ms INPUT or OMNI IN to OMNI OUT (@Fs = 48 kHz) |
| Fader | 100mm motorized x 62 (46) |
| Fader Resolution | +10 to –138, –dB (1024 steps/100 mm) |
| Maximum Voltage Gain | 86 dB INPUT 1-48 to OMNI OUT |
| Crosstalk (@1kHz) | -100dB, -80dB Adjacent input Channels, -100dB, -80dB Input to output |
| Power Requirements (wattage) | 300 W, 100V 50/60Hz |
| Operation free-air Temperature Range | +10 °C to +35 °C |
| StorageTemperature Range | –20 °C to +60 °C |
| Included Accessories | Owner’s Manual, Dust cover, Power cord, Cord clamp |

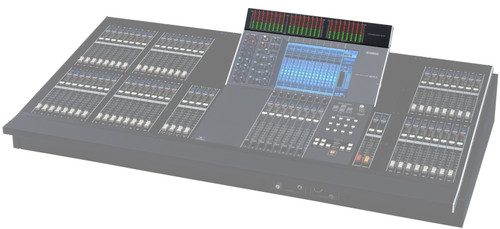

| Optional Accessories | Meter Bridge MBM7CL, Mini-YGDAI cards, Gooseneck Lamp LA1L |
| Optional Accessories | Power Supply PW 800W, Power Supply Link Cable PSL360 |
| Dimensions (H x W x D) | 11.25" (286 mm) x 50.19" (1274 mm) x 27.63" (701 mm) |
| Net Weight | 110.3 lbs (50 kg) |
