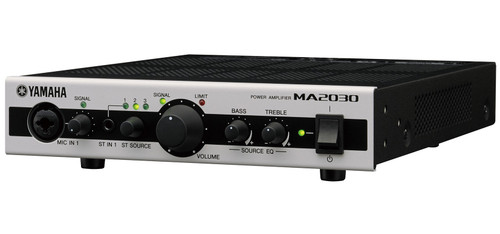

Yamaha MA2030 2 Channel Compact Mixer Amplifier 70V/100V/4 Ohm with DSP (Discontinued)

Part #:
MA2030
Model #:
MA2030
Availability: This model has been replaced.
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The MA2030 Mixer Amplifier features an interface that has been specifically designed for effortless operation.

Description

Acclaimed Yamaha DSP Features Built-In

The Yamaha MA2030 compact power amplifier brings years of experience and success in the commercial audio field together in a compact but powerful amplifier designed specifically for installations. The entire unit is built into a rugged metal chassis for outstanding durability. The MA2030 combines a familiar, unassuming construction with efficient, flexible performance.

The MA2030 offers 2-channel mixing capability with source EQ (Bass/Treble), as well as a number of the same acclaimed Yamaha's state-of-the-art DSP technologies featured in our top of the line professional audio gear. Whether providing background music for a cafe or restaurant, or powering a conference room or any number of applications requiring a microphone, the MA2030 provides you with a compact, yet powerful tool to help shape your ideal commercial sound environment.

The MA2030 Mixer Amplifier interface has been specifically designed for effortless operation. A layout that gives priority to the frequently used output volume knob while other controls are visually subdued, for example, significantly enhances control efficiency in normal day-to-day operation. And there’s no need for computers or complex programming procedures for installation or operation. After a quick, easy setup procedure that requires no special knowledge or skill, the system is ready to deliver outstanding sound in a wide range of applications.

3 stereo inputs and 2 microphone inputs (XLR combo jack and Euroblock) provide plenty of input capacity for small installations. Features that contribute to high quality music playback and microphone use include a feedback suppressor that effectively stops feedback that can occur when a microphone picks up sound from the system’s speakers, automatic ducking that smoothly adjusts the background program level when microphone input is detected, and automatic leveling that keeps overall volume constant regardless of changes in source level.

Features

  • Lo-Z/Hi-Z switchable compact Class-D mixer amplifier
  • Easy setup, and a user-friendly interface for effortless operation
  • Flexible 3 stereo inputs and 2 microphone inputs
  • Advanced DSP functions for music playback and microphone use
  • Stereo source EQ with enhancer function
  • Built-in EQ for optimum Yamaha VXC/VXS series speaker performance
  • Service zones can be expanded by adding a PA2030
  • Remote volume control and microphone on/off switching via the optional DCP1V4S control panel
  • Yamaha quality control ensures safe, reliable operation
  • Space-saving 1U half-rack size (Sufficient space must be provided above and below the unit for airflow and cooling)

Specifications

Output Power - 1kHz THD+N = 1%: 3Ω, 30W x 2
Output Power - High Impedance 70V/100V line: 60W x 1
Total Harmonic Distortion ≤ 0.1%
Frequency Response 0dB, -2.5dB, +1.0dB
Crosstalk ≤ -70dB (Stereo in to other Stereo in)
I/O Connectors
Mic Input MIC IN 1: XLR combo jack, balanced, MIC IN 2: 3.5 mm Euroblock 3-pin, balanced
Stereo Input ST IN 1: Stereo mini phone (3.5 mm), unbalanced
ST IN 2 / ST IN 3: Stereo RCA pin, unbalanced
Speaker Output Barrier strip x 2 pairs
Line Out Stereo RCA pin, unbalanced
Control Ports RJ-45 (DCP1V4S)
Input Level -10.0 dBV: Sensitivity / Nominal, +10.0 dBV: Max before clip
(Unbalanced / Stereo Input)
Output Level 10.0 dBV, Nominal (Line Out)
Protection Circuit
Load Protection Power on/off: Mute output, Output voltage protection: Compress output,
DC-fault: Power supply shutdown
Amplifier Protection Thermal: Limit the output → Mute → Shutdown (Restored automatically)
Power Supply Protection Thermal: Power supply shutdown, Over voltage: Power supply shutdown
Amplifier Class Class D
Cooling Conventional cooling, bottom to up airflow
Power Consumption: Music Source Equivalent 30W (1/8max. power, 3Ω, AC 100V, pink noise at all channels)
Operating Temperature 0°C to + 40°C
Storage Temperature -20°C to + 60°C
Accessories AC power cable, 3.5 mm Euroblock plug (3-pin) x 1, Owner’s manual, Specification sheet
Options RKH1 (Rack-mount Accessory)
DCP1V4S (Digital Control Panel)
Other Rack-mountable when ensuring sufficient ventilation above and below the unit
Dimensions (H x W x D) 2.1" (54 mm) x 8.5" (215 mm) x 11.4" (288 mm)
Net Weight 4 lbs (1.8 kg)
