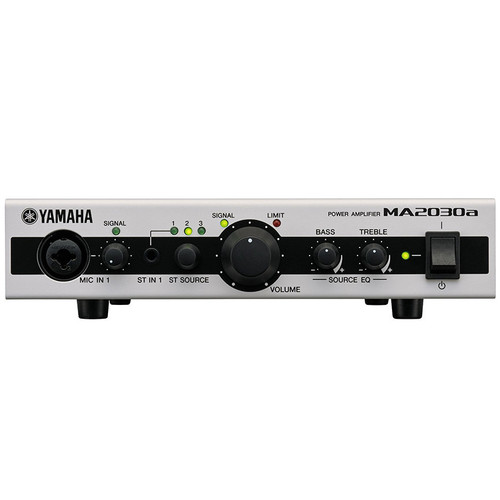

With a quick, easy setup and simple intuitive operation, it's never been easier to bring your commercial space to life than with Yamaha's newest addition to their Commercial Installation Solutions lineup with the MA2030a compact mixer power amplifier. This model combines a familiar, unassuming construction with efficient, flexible performance and offers 2-channel mixing capabilities with source EQ (Bass/Treble), as well as a number of the same acclaimed Yamaha's state-of-the art DSP technologies featured in their top of the line professional audio gear. Whether providing background music for a cafe or restaurant, or powering a conference room or any number of applications requiring a microphone, the MA2030a provides you with a compact, yet powerful tool to help shape your ideal commercial sound environment.
| Output Power - 1kHz | THD+N = 1%: 3Ω/4Ω/8Ω, 30W x 2 |
|---|---|
| Output Power - High Impedance | 70V/100V line: 60W x 1 |
| Total Harmonic Distortion | ≤ 0.1% |
| Frequency Response | 0dB, -2.5dB, +1.0dB |
| Crosstalk | ≤ -70dB (Stereo in to other Stereo in) |
| I/O Connectors | |
| Mic Input | MIC IN 1: XLR combo jack, balanced, MIC IN 2: 3.5 mm Euroblock 3-pin, balanced |
| Stereo Input | ST IN 1: Stereo mini phone (3.5 mm), unbalanced ST IN 2 / ST IN 3: Stereo RCA pin, unbalanced |
| Speaker Output | Barrier strip x 2 pairs |
| Line Out | Stereo RCA pin, unbalanced |
| Control Ports | RJ-45 (DCP1V4S) |
| Input Level | -10.0 dBV: Sensitivity / Nominal, +10.0 dBV: Max before clip (Unbalanced / Stereo Input) |
| Output Level | 10.0 dBV, Nominal (Line Out) |
| Protection Circuit | |
| Load Protection | Power on/off: Mute output, Output voltage protection: Compress output, DC-fault: Power supply shutdown |
| Amplifier Protection | Thermal: Limit the output → Mute → Shutdown (Restored automatically) |
| Power Supply Protection | Thermal: Power supply shutdown, Over voltage: Power supply shutdown |
| Amplifier Class | Class D |
| Cooling | Conventional cooling, bottom to up airflow |
| Power Consumption: Music Source Equivalent | 30W (1/8max. power, 3Ω, AC 100V, pink noise at all channels) |
| Operating Temperature | 0°C to + 40°C |
| Storage Temperature | -20°C to + 60°C |
| Accessories | AC power cable, 3.5 mm Euroblock plug (3-pin) x 1, Owner’s manual, Specification sheet |
| Options | RKH1 (Rack-mount Accessory) DCP1V4S (Digital Control Panel) |
| Other | Rack-mountable when ensuring sufficient ventilation above and below the unit |
| Dimensions (H x W x D) | 2.1" (54 mm) x 8.5" (215 mm) x 11.4" (288 mm) |
| Net Weight | 4 lbs (1.8 kg) |
