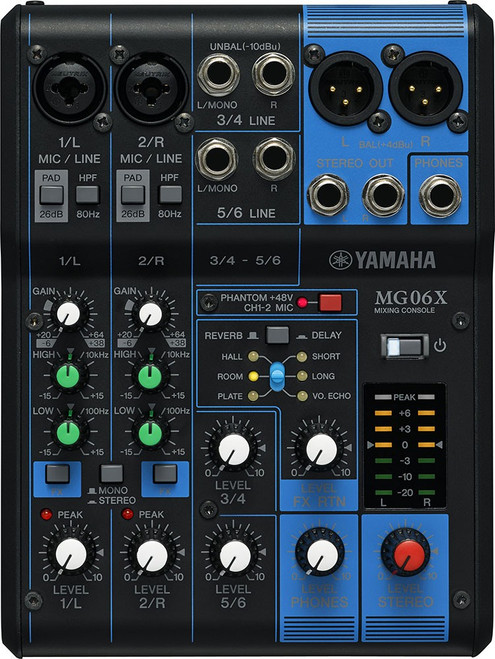

The Yamaha MG06X analog mixer is well-suited for ultra-compact mixing rigs, with its rich features and outstanding sound quality. The MG06X's quality op-amp ensures that your mix sounds transparent and articulate. The MG06X's crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring on-board digital effects, switchable phantom power, a pad switch, EQ, and LED metering, the MG06X can take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha's high-end consoles, the MG06X is ready to work for you!
For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivaled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles let you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivaled in its class.
Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or color to give it a "signature" sound, and the MG Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class.
| Mixing Capability | On-board processors: SPX algorithm: 6 programs |
|---|---|
| I/O | +48 V Phantom power |
| Input Channels | |
| Mono [MIC/LINE] | 2 |
| Stereo [LINE] | 2 |
| Output Channels | |
| STEREO OUT | 2 |
| PHONES | 1 |
| Bus | Stereo: 1 |
| Input Channel Function | |
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono) |
| EQ HIGH | (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ LOW | (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB] |
| Total Harmonic Distortion | 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min |
| Frequency Response | +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Hum & Noise Level | |
| Equivalent Input Noise | -128 dBu (Mono Input Channel, Rs: 150 ohm, GAIN knob: Max) |
| Residual Output Noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) |
| Crosstalk | -88 dB |
| Power Requirements | PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m) |
| Power Requirements | 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha |
| Power Consumption | 12W |
| Others | Operating Temperature: 0 to +40 degrees celsius |
| Dimensions (H x W x D) | 2.4" (62 mm) x 5.9" (149 mm) x 7.9" (202 mm) |
| Net Weight | 1.98 lbs (0.9 kg) |
