| Tone Generator |
AWM2, with Expanded Articulation |
| Polyphony |
128 notes |
| Multi Timbral Capacity |
16 Parts (internal), Audio Input Parts (A/D, FW*), *1 stereo Part |
| Wave |
741 MB (when converted to 16-bit linear format), 3,977 waveforms |
| Voice |
Preset: 1,024 Normal Voices + 64 Drum Kits. GM: 128 Normal Voices + 1 Drum Kit . User: 128 x 4 |
| Performance |
User: 128 x 4 (up to 4 Parts) |
| Filter |
18 types |
| Effect System |
Reverb x 9 types, Chorus x 22 types, Insertion (A, B) x 53 types x 8 Parts (up to 16 units) |
| Samples |
Up to 128 Waveforms (Multi Samples) Up to 256 Key Banks per Waveform Up to 512 Key Banks |
| Sampling Sources |
Analog input L/R, Stereo output (Resampling) FW (available when the FW16E has been installed) |
| A/D Conversion |
24-bit, 64x oversampling |
| D/A Conversion |
24-bit,128x oversampling |
| Sample Data Bits |
16 |
| Sampling Frequency |
44.1kHz, 22.05kHz, 11.025kHz, 5.5125kHz (Stereo/Mono) Sampling Frequency via FW 44.1kHz (fixed) |
| Sampling Memory |
Internal SDRAM: 128M |
| Sample Length |
Mono: 32 MB Stereo: 64 MB |
| Sampling Time |
44.1kHz:6 min. 20 sec. 22.05kHz:12 min. 40 sec. 11.025kHz: 25 min. 20 sec. 5.0125kHz: 55 min. 40 sec |
| Sample Format |
Original format, WAV, AIFF |
| Sampling Sources |
Analog input L/R, Stereo output (Resampling) FW (available when the FW16E has been installed) |
| Note Capacity |
Approx. 130,000 notes |
| Note Resolution |
480 ppq (parts per quarter note) |
| Maximum Polyphony |
124 notes |
| Tempo (BPM) |
5 – 300 |
| Recording type |
Real time replace Real time overdub. Real time punch in/out |
| Tracks |
Pattern: 16 Phrase tracks Pattern Chain: Pattern track, Tempo track, Scene track Song: 16 sequence tracks (Loop on/off can be set for each track), Tempo track, Scene track |
| Patterns |
64 Patterns |
| Phrases |
User Phrases: 256 per Pattern |
| Songs |
64 Songs Mixing Voices: 16 Voices per Song and up to 256 Voices for all Songs Mixing Templates: 32 for all Songs and Patterns |
| Arpeggio |
Preset: 7,881 types User: 256 types MIDI Sync |
| Scene Memory |
5 per Song |
| Sequence Format |
Original format, SMF format 0, 1 (Format 1 load only) |
| Master |
User: 128 *8 Zones (Master keyboard settings), Assignable Knob/Slider settings, Program Change Table |
| Sequence Software compatible with the Remote Control function |
Cubase 4 – 5,SONAR 5.2 – 8 For Mac:Cubase 4 – 5, Logic 7.2 – LogicStudio, Digital Performer 5.1 – 6 |
| Controllers |

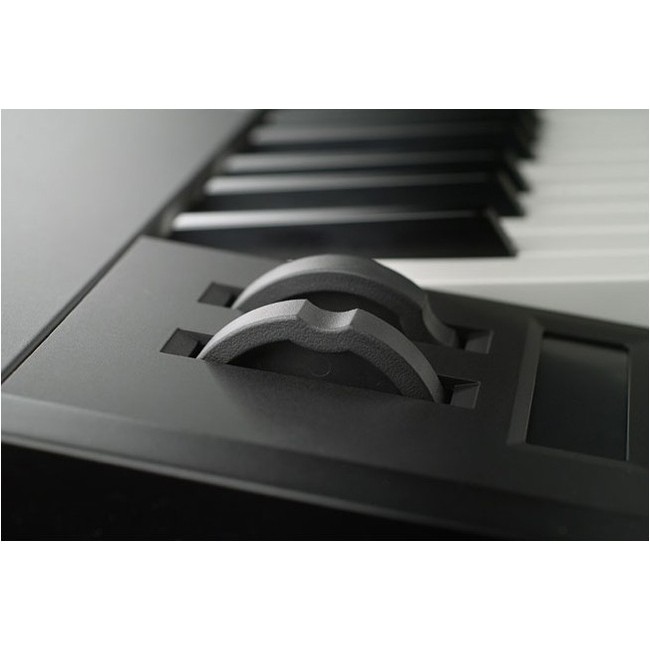

Pitch Bend wheel, Modulation wheel, Ribbon Controller, Assignable Control Sliders x 8, Assignable Knobs x 8, Assignable Function buttons x 2, Data dial |
| Display |
320 x 240 dot, 5.7 inch graphic color backlit LCD |
| Power Consumption |
30W |
| Dimensions (H x W x D) |
4.8" (122 mm) x 49.3" (1252 mm) x 15.4" (391 mm) |
| Weight |
37.9 lbs (17.19 kg) |
