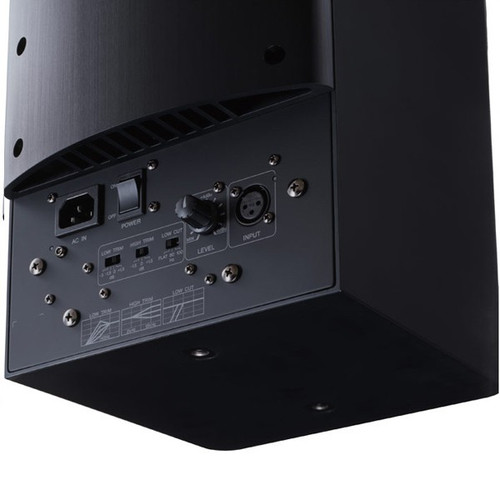

Yamaha MSP7 STUDIO Monitor 6.5 inch Speaker (Discontinued)

Part #:
MSP7STUDIO
Model #:
MSP7 STUDIO
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Yamaha MSP7 STUDIO is a top choice for recording and production engineers who demand unmatched accuracy and resolution that reveals critical sonic details.


Description

The trend towards choosing powered speakers for production monitoring is based on some very sound logic. By integrating and matching the power amplifiers and speakers, the relationship between them can be kept under perfect control for superior performance in the widest possible range of systems. Naturally the power amplifiers themselves are of the finest quality and, unlike component power amplifiers that must be designed for acceptable matching with the widest possible range of speakers, are designed and manufactured specifically to drive the system's woofer and tweeter in their specific enclosure. No matter where the MSP7 Studio monitors are used, and with what sources or other audio gear, you know that you're always receiving the benefits of a perfectly matched power amplifier and speaker system. You'll hear the difference. You'll also benefit from the convenience of not having to deal with external amplifiers and cabling. There are a number of advantages to multi-amp speaker setups, but the added cost and extra equipment required can make them impractical in many situations. With the MSP7 STUDIO everything you need is built-in – all you have to do is supply the line-level input. The 6.5 inch cone woofer is driven by an 80-watt power amplifier, while the 1 inch dome tweeter has its own 50-watt power amplifier. In the MSP7 STUDIO this particular power and driver combination results in the perfect balance between the low-mid and high frequency ranges. The frequency ranges are divided via a carefully designed electronic crossover before the power amplifier inputs, featuring steep 30-dB/octave roll-off curves in both the low- and high-pass filters. The steep roll-off minimizes inter-modulation between the frequency bands at the crossover point, achieving significantly smoother, cleaner crossover performance in the critical midrange.

Features

  • Powered for Uncompromised Quality
  • Advanced Bi-Amp Design
  • Titanium Dome Tweeters
  • Perfectly Matched Amplifier and Speaker System

Specifications

Crossover Frequency 2.5 kHzLF: 30dB/oct, HF: 30dB/oct
Overall Frequency Response 45 Hz - 40 kHz (-10 dB)
Maximum Output Level 106 dB, 1 m on Axis
Indicators LED Green: Power On; Red: Clipping
Power Consumption 100 W
Magnetic Shielding Yes
Components LF 6.5" cone
Components HF 1.0" Titanium dome
Enclosure Type Bass-Reflex
Enclosure Material PP
Output Power LF 80 W THD = 0.05 %, RL = 4 Ω
Output Power HF 50 W THD = 0.05 %, RL = 6 Ω
Input Sensitivity XLR-3-31 +4 dBu, LEVEL = Center-6 dBu, LEVEL = Max
Input Connectors, Impedance XLR-3-31 (balanced), 10 kΩ
Controls LEVEL control 31 Positions Detent type VR (Min = -∞ Attenuation)
Controls LOW CUT switch FLAT/80 Hz (12 dB/oct)/100 Hz (12 dB/oct)
Controls HIGH TRIM +1.5/0/-1.5 dB at 15 kHz
Controls LOW TRIM +1.5/0/-1.5/-3 dB at 45 Hz
Controls POWER SWITCH on/off
Dimensions (H x W x D) 13" (330 mm) x 8.63" (218 mm) x 9.25" (235 mm)
Weight 26.9 lbs (12.2 kg)
