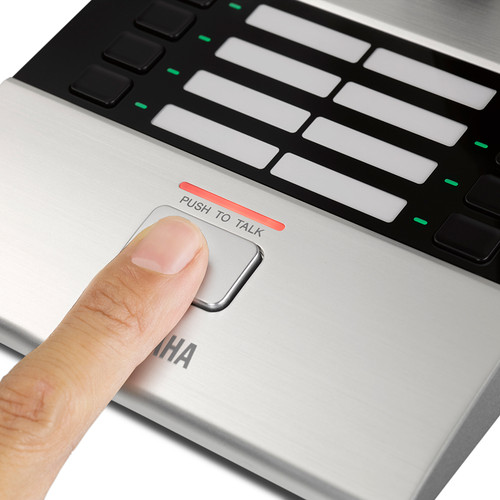

Yamaha PGM1 Paging Station Microphone

Description

The Yamaha PGM1 is an advanced paging station microphone that can be used with the MTX5-D or MRX7-D.

Features

• Dante network support
• 8 buttons can be assigned to any functions (Output destinations and input sources are specified via the MTX-MRX Editor)
• Up to 4 units can be connected per system
• PoE powered

Specifications

Power Supply Voltage	Power supplied via PoE (IEEE802.3af)
Power Consumption	4.8 W max.
Operating Temperature Range	0°C – 40°C
Storage Temperature Range	-20°C – 60°C
Max Number of Usable Units Simultaneously	A maximum of four PGM1 units can be installed in one MTX/MRX system (There are limits on the total number of units within a system that includes other devices) A maximum of two PGX1 units can be added for each PGM1 unit
Operating Lifespan	10 years
Included Items	Gooseneck Mic, Zone Label, Installation Manual
Dimensions (H x W x D)	2.2" (56 mm) x 5.2" (132 mm) x 6.06" (154 mm) (exluding mic)
Weight	2.65 lbs (1.2 kg) including mic 2.20 lbs (1.0 kg) exluding mic

DOCUMENTS

In The Box

• (1) PGM1 Paging Station
• (1) Gooseneck Mic
• (1) Zone Label
• (1) Installation Manual
