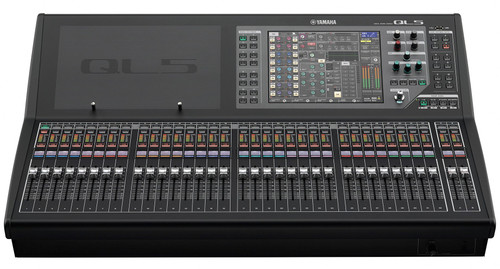

Yamaha QL5 Compact Digital Mixing Console 32 Mic/Line Inputs 16 Analog Omni Outputs with Dante
The Yamaha QL5 Digital Mixing Console is a little brother to the highly-acclaimed CL Series, inheriting its natural sound quality, Dante networking capability and many of its features like the Premium Rack. QL also introduces some new talents such as built-in Dugan Automixing and Port to Port routing which offers more flexibility, value and application possibilities.
QL series consoles feature circuitry and components that have been designed and selected with the utmost care, achieving outstanding audio purity from input to output. With that solid sonic foundation it becomes possible to take full advantage of built-in premium internal processors such as the Portico 5033/5043 created in cooperation with Rupert Neve, to shape and create as required. For a wide range of speech applications built-in automatic mixing functionality from Dan Dugan Sound Design provides optimum channel balance while allowing the operator to concentrate fully on optimizing the overall sound.
Full creative freedom can only be achieved when the sonic foundation is accurate, uncolored, and faithful to the source. The same pure, natural sound that is a highly regarded feature of the CL series is achieved in the compact QL series consoles as well. Every detail, from mechanical construction through port location, power supply, grounding, and individual components has been painstakingly analyzed and brought together in a system that affords extraordinary audio quality. Noise that can affect digital mixer performance in a number of ways has also been thoroughly scrutinized and effectively eliminated. Because it can affect AD/ DA converter performance, system clock jitter has been subject to detailed analysis and optimized by revising the internal FPGA layout and rerouting the clock signal. All of these details combine to realize performance that not only passes the strictest scientific tests, but also satisfies the critical ears of some of the most demanding sound engineers in the business. Must ship by LTL due to size of package.
| Sampling Frequency Rate | |
|---|---|
| Internal | 44.1kHz / 48kHz |
| External | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) |
| Signal Delay | Less than 2.5ms, INPUT to OMNI OUT, Fs= 48kHz |
| Fader | 100mm motorized, Resolution=1024 steps, +10dB to –138dB, –∞dB all faders |
| Total Harmonic Distortion | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, INPUT to OMNI OUT, Input Gain= Min |
| Frequency Response | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OMNI OUT |
| Dynamic Range | 112dB typ: DA Converter / 108dB typ.: INPUT to OMNI OUT, Input Gain = Min |
| Hum & Noise Level | |
| Equivalent Input Noise | -128dBu typ., Equivalent Input Noise, Input Gain=Max |
| Residual Output Noise | -88dBu, Residual output noise, ST master off |
| Crosstalk | -100dB, adjacent INPUT/OMNI OUT channels, Input Gain = Min |
| Power Requirements | 100-240V 50/60Hz |
| Power Consumption | 135W |
| Accessories | Owner’s Manual, dust cover, power cord, DVS license sheet |
| Options | Mini-YGDAI cards, Gooseneck Lamp LA1L, Nuendo Live |
| Others | Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃ |
| Dimensions (H x W x D) | 10.7" (272 mm) x 32.6" (828 mm) x 22.2" (563 mm) |
| Net Weight | 48.1 lbs (21.8 kg) |
