The RUio16FLX-D provides 16 channels of either analog input, analog output, or AES/EBU output so systems can be easily configured for use with Yamaha digital mixers and processors. Source channels can be selected in groups of two, providing flexible support for I/O expansion.
The Dante-compatible RUio16FLX-D is a flexible I/O rack that gives you the freedom to select 16 I/O channels from analog inputs, analog outputs, and AES/EBU outputs, providing an optimal solution for designing systems where the I/O configuration may change or exact requirements have not yet been determined. When you need to add a few more channels or route an AES/EBU output to a specific location, this reliable I/O rack provides a simple, effective solution.

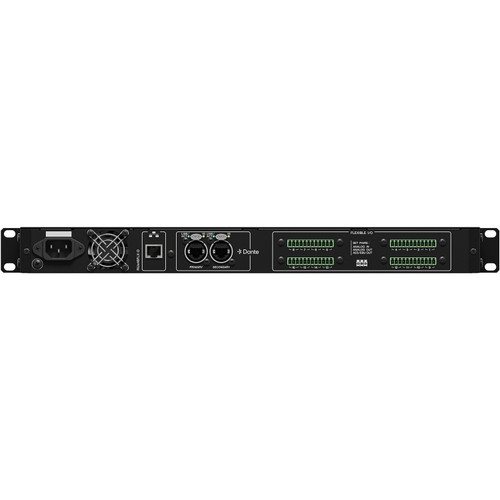

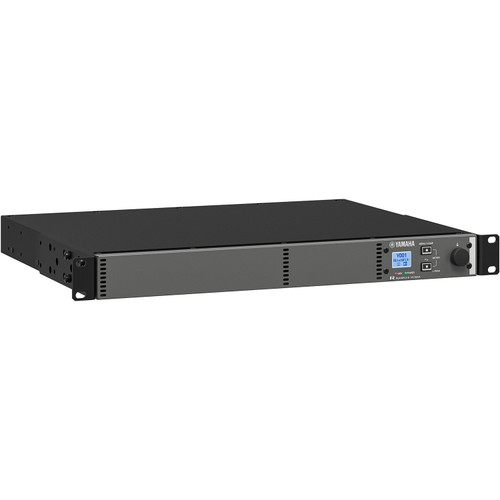

The I/O provides 16 channels of flexible connectivity with Euroblock connectors, supporting analog input, analog output, or AES/EBU output. Dante provides 16 receive channels and 16 transmit channels, while the local display and controls allow gain and phantom power settings to be checked and adjusted directly. The RUio16FLX-D has a power consumption of 45W.
| Analog Inputs/Outputs | 16 (flexible I/O) |
|---|---|
| AES/EBU Outputs | 16 (flexible I/O) |
| Dante I/O | 16 receive/16 transmit |
| Sampling Rate | 44.1/48/88.2/96 kHz ±200 ppm |
| Signal Delay | Less than 1.7 ms @ Fs=96 kHz/2.0 ms @ Fs=48 kHz |
| Total Harmonic Distortion | Less than 0.05% +4 dBu @ 20 Hz - 20 kHz, Gain 0 dB/Less than 0.15% +4 dBu @ 20 Hz - 20 kHz, Gain +64 dB |
| Frequency Response | +0.5, -1.5 dB, 20 Hz - 20 kHz |
| Dynamic Range | 109 dB typ. Input to Output |
| Equivalent Input Noise | -128 dBu typ., Gain +64 dB |
| Residual Output Noise | -88 dBu |
| Dante Data Length | 24-bit/32-bit |
| Power Requirements | 100-240V, 50 Hz/60 Hz |
| Power Consumption | 45W |
| Dimensions (H x W x D) | 1.7" (44 mm) x 18.9" (480 mm) x 14.5" (369 mm) |
| Weight | 8.8 lbs (4 kg) |
