Yamaha Tio1608-D2 Dante Equipped I/O Rack

More Views

Yamaha Tio1608-D2 Dante Equipped I/O Rack

Part # Tio1608-D2

Model # Tio1608-D2

The Yamaha Tio1608-D2 is a Dante-compatible I/O rack equipped with 16 mic/line inputs and 8 line outputs. It can control gain from TF Series and DM3 consoles remotely, allowing the construction of a simple stagebox system. The versatile Tio1608-D2 also supports 96k, making it perfect for use as an I/O rack in large installations with products such as the RIVAGE PM or DME7.

Availability:

Qty:

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

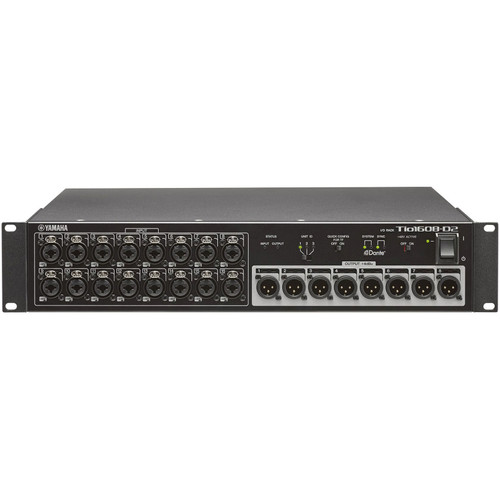

Yamaha Tio1608-D2 Dante Equipped I/O Rack

Simple, versatile, high-definition Dante Stagebox

The Tio1608-D2 is a Dante-compatible I/O rack equipped with 16 mic/line inputs and 8 line outputs. It can control gain from TF Series and DM3 consoles remotely, allowing the construction of a simple stagebox system. The versatile Tio1608-D2 also supports 96k, making it perfect for use as an I/O rack in large installations with products such as the RIVAGE PM or DME7.

The versatility and scalability of Dante

The Dante audio network standard is utilized in the DM3 and TF series, as well as in the CL and QL digital mixers. These consoles can be freely combined with the Tio1608-D2 or an R series I/O rack to create a system that matches the required scale and budget. Patching can be enabled via "Dante Controller" while Remote HA can be controlled by "R Remote" software.

*Please note that Remote HA on the Tio1608-D2 can be implemented only via the Primary port. Remote HA control of the Tio1608D2 is not available on the secondary network, even when using the product in combination with a TF or CL/QL console.

Features

Features

Works Remotely with TF Series Consoles
Cable Connection to Console via Dante
Preamp with Balanced Inputs & Outputs
16 Combo XLR/TRS Input Jacks
8 XLR Output Jacks
Supports 48V Phantom Power
2 CAT5e LAN Ports (Primary & Secondary)
Quick Config Automates TF-Series Setup
DIP Switches Determine Startup Mode
Daisy-Chain up to 48 Inputs / 24 Outs

Specification

External Sampling Frequency Rate	44.1kHz, 48kHz, 88.2kHz, 96kHz
Total Harmonic Distortion	Less than 0.2% +4 dBu@20Hz-20kHz into 600Ω, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=88.2kHz, 96kHz; Less than 0.1% +4 dBu@20Hz-20kHz into 600Ω, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18 dB/octave filter @80kHz
Frequency Response	+0.5, -1.5 dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT
Dynamic Range	108 dB, INPUT to OUTPUT, Gain=-6 dB / 110 dB, DA Converter, Fs 96kHz; 108 dB, INPUT to OUTPUT, Gain=-6 dB / 112 dB, DA Converter, Fs 48kHz
Hum & Noise Level	Equivalent input noise: -128 dBu, Gain=+66 dB, Fs 96kHz, 48kHz Measured with A-weighting filter Residual output noise: -86 dBu, Fs 96kHz / -88 dBu, Fs 48kHz, ST main off Measured with A-weighting filter
Crosstalk	-100 dB, adjacent INPUT/OUTPUT channels, Input Gain = -6 dB *Measured with a -30 dB/octave filter @22kHz
Heat Dissipation	100-240V, 50/60Hz, 43.5kcal/h
Power Requirements	100-240V, 50/60Hz
Power Consumption	50W
Dimensions (H x W x D)	3.5" (88 mm) x 18.88" (480 mm) x 14.38" (364 mm)
Net Weight	12.6 lbs (5.7 kg)
