Yamaha RX-A3060 AVENTAGE 11.2 Channel Network AV Receiver (Discontinued)

Description

Details

Experience best-in-class performance with the highest level of processing power offered for AVENTAGE network AV receivers. This 9.2-channel (11.2-channel processing) AV receiver features Dolby Atmos® and DTS:X™ for surround sound realism. With the latest in HDMI® technologies, experience movies in stunning 4K Ultra HD and high dynamic range (HDR). The free MusicCast app makes it easy to access your music library and streaming music services. Add audio in up to 9 additional rooms with MusicCast wireless speakers or other MusicCast devices. Wi-Fi®, Bluetooth® and AirPlay® wireless connectivity, a phono input for vinyl playback and advanced HDMI zone switching provide added system versatility.

Features

Features

The AVENTAGE Advantage: Designed to deliver the highest levels of audio performance through engineering
Aluminum front panel with door, symmetrical amplifier layout, H-shaped cross frame, double-bottom chassis
9.2-channel with Dolby Atmos®, DTS:X™ and CINEMA DSP HD3 (7.1.2-ch or 5.1.4-ch)
11.2-channel processing (up to 7.2.4-ch expandability with external 2-ch amplifier)
Add audio in up to 9 additional rooms with MusicCast
8-in, 2-out HDMI with 4K Ultra HD pass-through and upscaling
Advanced HDMI zone switching (Zone 2)
HDCP 2.2, High dynamic range (HDR) and BT.2020 compatibility
High-performance digital-to-analog conversion (ESS SABRE32 Ultra DAC ES9016S and ESS Premier DAC ES9006A)
Fully loaded with Wi-Fi, Bluetooth, AirPlay and Spotify Connect
Stream Pandora®, Spotify, Napster®, SiriusXM Internet Radio and thousands of free internet radio stations
DSD 2.8 MHz / 5.6 MHz, FLAC / WAV / AIFF 192 kHz / 24-bit, Apple® Lossless 96 kHz / 24-bit playback
Phono input to connect to your favorite turntable

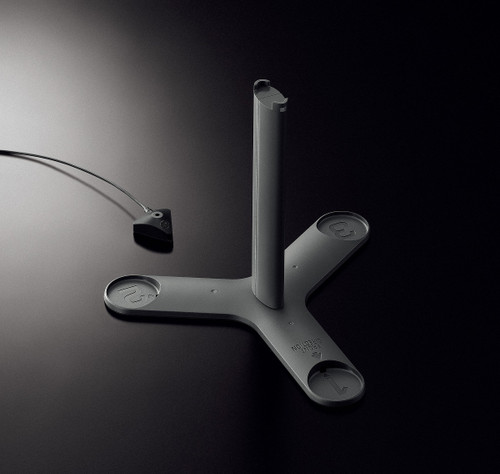

Room acoustics optimization using YPAO™- R.S.C. with 3D, 64-bit precision EQ calculation and angle measurement

Specification

Amplifier Section
Channel	9.2
Rated Output Power (1kHz, 2ch Driven)	165 W (8 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch Driven)	150 W (8 ohms, 0.06% THD)
Dynamic Power Per Channel (8/6/4/2 ohms)	175 / 220 / 295 / 410 W
Surround Sound Processing
CINEMA DSP	Yes (HD3)
DSP Programs	24
Dialog Level Adjustment	Yes
Virtual Presence Speaker	Yes
Virtual Surround Back Speaker	Yes
Dialogue Lift	Yes (No Presence Speakers Required)
Silent Cinema / Virtual Cinema DSP	Yes (Virtual Cinema Front)
Dolby Atmos	Yes
Dolby TrueHD	Yes
Dolby Digital Plus	Yes
Dolby Pro Logic IIx	Yes
DTS:X	Yes
DTS-HD Master Audio	Yes
Audio Features
Pure Direct	Yes (with Video on Mode)
Compressed Music Enhancer	Yes
High-resolution Music Enhancer	Yes
YPAO Multi-Point measurement	Yes with R.S.C. (Reflected Sound Control), 3D, 64-Bit Precision EQ Calculation and Angle Measurement
YPAO Volume	Yes
Adaptive DRC (Dynamic Range Control)	Yes
Initial Volume & Maximum Volume Setting	Yes
A.R.T. Wedge	Yes
Bi-Amp Capability	Yes
Audio Delay	Yes (0-500 ms)
192kHz/24-Bit DACs for All Channels	ESS SABRE32™ Ultra DAC (for Main 7 Channels)
Video Features
4K Ultra HD Pass-Through and Upscaling	Yes (4K / 60p, 4:4:4)
HDMI 3D Pass-Through	Yes
HDMI Audio Return Channel	Yes
HDMI Upscaling	Yes (Analog to HDMI / HDMI to HDMI)
Video Adjustment	Yes
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync	Yes

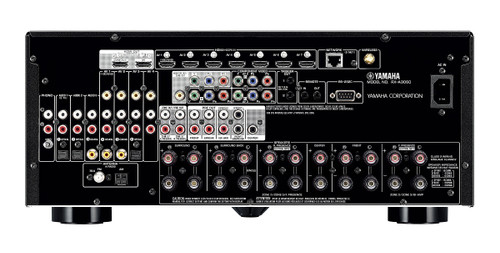

Extensive Connection
HDMI Input/Output	8 (HDMI® 1-7: HDCP2.2 Compatible) / 2 (HDCP 2.2 Compatible)
HDMI CEC	Yes (Scene, Device Control)
USB Input	USB Memory, Portable Audio Player
Network Port	Yes
Connectivity
Wi-Fi	Yes (With Wireless Direct)
AirPlay	Yes
Bluetooth	Yes (SBC / AAC)
Extensive Connection
Front AV Input	HDMI / USB / Analog Audio / Composite
Digital Audio Input/Output: Optical	3 / 0
Digital Audio Input/Output: Coaxial	3 / 0
Analog Audio Input/Output	9 (Front 1) / 0
Phono Input	Yes
Component Video Input/Output	3 / 1
Composite Video Input/Output	5 (Front 1) / 1
Preout	11.2-Ch
Headphone Output	1
Tuner Section
FM/AM Tuner	Yes
User Interface
On-Screen Display	Graphical User Interface
Scene	Scene Plus 12 Sets)

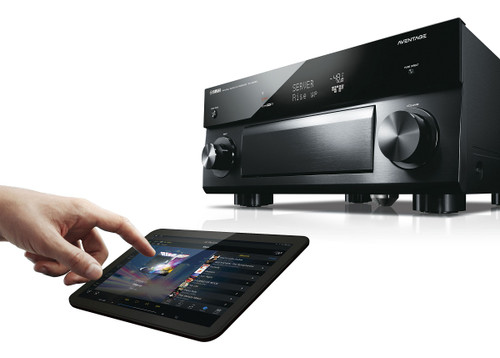

App Control	Yes (iPhone / iPad / Android Phone / Tablet)
Web Browser Control	Yes
Remote Control Unit	Yes (Preset)
Zone Control
Zone 2 Audio Output	Preout / HDMI
Zone 3 Audio Output	Preout
Zone 4 Audio Output	HDMI
Powered Zone	Zone 2 / 3
Zone Video Output	HDMI / Component / Composite
Zone HDMI	Yes (Advanced HDMI Zone Switching)
Zone B Output	HDMI
Zone GUI	Yes
RS-232C Interface	Yes
+12V Trigger Output	2
Remote (IR) Input/Output	1 / 1
Party Mode	Yes
General
Standby Power Consumption (IR only)	≤0.1W
Auto Power Standby	Yes
ECO Mode	Yes
Dimensions (H x W x D)	7.5" (190.5 mm) x 17.125" (434.975 mm) x 18.625" (473.075 mm)
Weight	39.9 lbs (18.098 kg)
