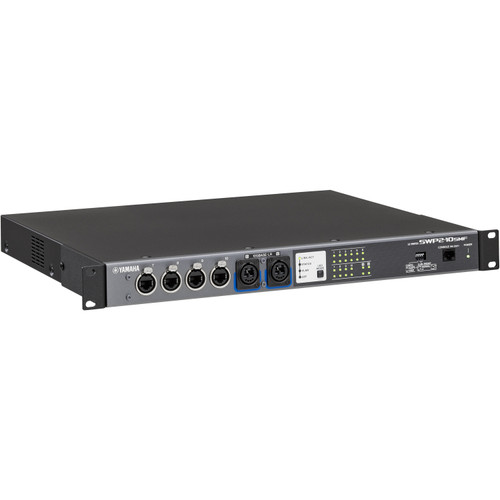

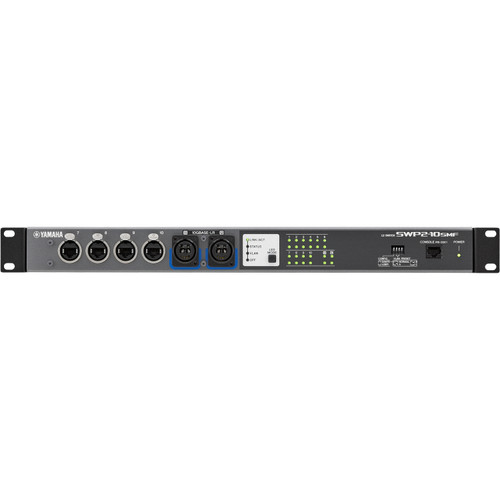

The SWP2-10SMF is a professional-grade 10-port EtherCON L2 network switch engineered specifically for high-performance Dante audio networks. With recommended Dante settings accessible via a simple DIP switch, the SWP2-10SMF ensures stable, low-latency operation-ideal for live sound, installed systems, broadcast environments, and mission-critical digital audio transport. Its 10GBASE-LR single-mode fiber uplink provides exceptional long-distance connectivity and abundant bandwidth, enabling reliable Dante performance even at higher sampling rates such as 96 kHz.
Built for reliability, the SWP2-10SMF integrates VLAN presets for separating audio and control traffic, helping maintain a stable and organized network. Network visibility is made easy through Yamaha’s Audio Network Monitor software, which offers real-time status monitoring of Dante devices and switch health. Rugged EtherCON and opticalCON ports come standard, providing secure locking connections for mobile rigs or permanent installations where cables may be stressed or exposed.
For added peace of mind, the switch supports redundant power via its V-Lock AC inlet and external 24V DC input. Combined with its rackmount design and high-durability construction, the SWP2-10SMF delivers the safety, stability, and long-haul performance required for modern, professional Dante audio networks.
| Number of LAN ports | 10 (1000BASE-T/100BASE-TX/10BASE-T, etherCON connector) |
|---|---|
| Number of SFP+ ports | 0 (10GBASE-SR, opticalCON DUO connector) |
| Number of SFP+ ports | 2 (10GBASE-LR, opticalCON DUO connector) |
| Console Port | 1 (RJ-45) |
| Automatic Negotiation | Available |
| Auto MDI/MDI-X | Available |
| DIP Switches | CONFIG, VLAN PRESET |
| Indicators (Front) | POWER, LED MODE × 4 PORT × 10 × 2, SFP+ × 2 × 2 |
| Operating Temperature Range | 0 to 40°C |
| Storage Temperature Range | −20 to 60°C |
| Power Supply (AC IN Inlet) | AC100V – 240V, 50/60Hz, Internal power supply (no power switch) Power supply inlet: locking type |
| Power Supply (EXT DC INPUT Inlet) | 24VDC±2V, 0.78A, XLR-4-32 type Connector |
| Maximum Power Consumption (Wattage, Current) | 21W, 0.35A |
| Heat Dissipation | 18.5 kcal/h |
| Body Material | Metal case, no fan |
| Hazardous Substances Management | RoHS compliant |
| Dimensions (H x W x D) | 1.73" (44 mm) x 18.90" (480 mm) x 14.25" (362 mm) |
| Weight | 9.9 lbs (4.5 kg) |
