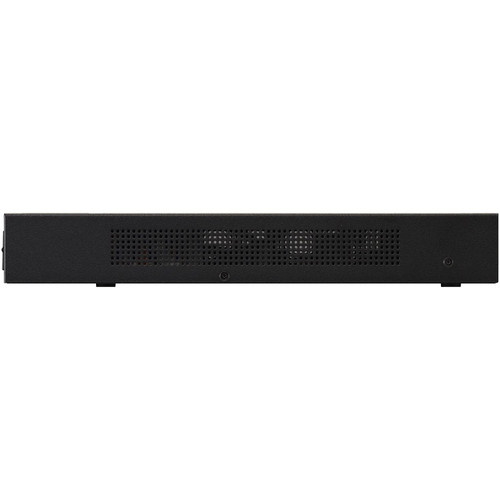

The SWX2210P-10G is a professional-grade 10-port intelligent L2 network switch designed for AV and Dante audio networks. Combining Yamaha's expertise in networking and professional audio, it delivers reliable, low-latency performance for small to medium ADECIA systems and other Dante-enabled AV installations.
Ports 1-8 support PoE+, providing up to 30W per port with a total power budget of 124W. This allows you to power compatible Dante-enabled devices, IP speakers, and other networked equipment directly through the Ethernet connection, eliminating the need for separate power cabling and simplifying installation.
The switch automatically applies recommended Dante settings upon connection to ADECIA devices and supports QoS, IGMP Snooping, and Energy Efficient Ethernet (EEE), ensuring stable, high-performance operation even in complex networks. Its compact 1/2RU form factor makes it ideal for rack-mount installations where space is limited, offering a reliable, scalable, and high-quality networked audio solution.
| LAN Ports | Standard: IEEE 802.3 (10BASE-T/100BASE-TX/1000BASE-T) Number of Ports: 10 Communication Mode: Auto negotiation Connector Type: RJ-45 Polarity: Automatic detection of straight/cross, or fixed at straight |
|---|---|
| Performance | Switching Bandwidth: 20 Gbit/s Forwarding Rate: 14.88 Mpps Flame Buffer: 512 KB |
| Ports Available for PoE Power Supply | 8 ports (1-8) |
| PoE Standards | IEEE 802.3at |
| Power Supply System | Alternative A |
| Maximum Power Supply | Per Port: 30W, All Ports: 124W |
| Indicators | POWER, LAN port (LINK/ACT, SPEED), PoE STATE |
| MAC Address | Indicated in product label on top panel of unit |
| Number of Fans | 2 |
| Operating Environment | Ambient temperature: 0 - 50 °C, Ambient humidity: 15 - 80 % (non-condensing) |
| Storage Environment | Ambient temperature: -20-60˚C, Ambient humidity 10–90% (non-condensing) |
| Power Supply Voltage, Frequency | AC100 - 240V, 50/60 Hz |
| Maximum Power Consumption | 169W |
| Accessories | Manual (Read This First), Power cords, Power cord clamp, Legs |
| Dimensions (H x W x D) | 1.65" (42 mm) x 8.66" (220 mm) x 11.57" (294 mm) |
| Weight | 4.19 lbs (1.9 kg) |
