The Yamaha VS6 6.5" 2-way surface mount speakers deliver high-quality audio with a stylish black design. With 90° coverage, indoor/outdoor durability, and selectable 70V/100V or low-impedance operation, they are ideal for retail, restaurants, hospitality, offices, and commercial installations.

Description

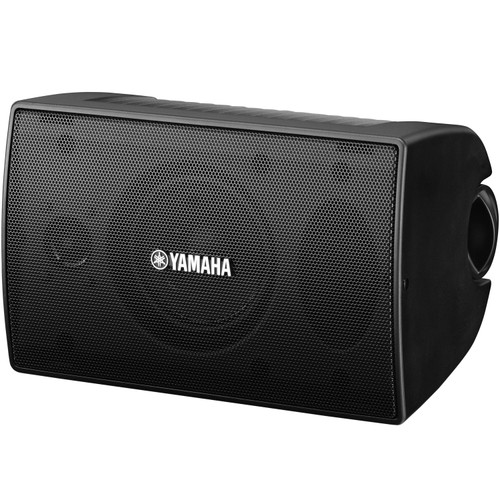

Yamaha VS6 6.5-Inch 2-Way Black Surface Mount Speakers

The VS6 6.5" 2-way surface mount speakers combine elegant design with excellent audio performance, making them an ideal choice for commercial installations where sound quality and visual integration are equally important. Featuring a 6.5" woofer and a 1" balanced-dome tweeter, the VS6 delivers full, articulate sound with wide 90° coverage, perfect for background music, paging, and foreground playback in restaurants, retail spaces, meeting rooms, hospitality venues, and more.

Built for both indoor and outdoor environments, the VS6 meets IEC60529 IPX3 standards for water resistance, ensuring reliable performance even in exposed or semi-outdoor areas. With internally mounted transformers, the speakers support 70V/100V distributed systems as well as standard low-impedance configurations, providing installation flexibility across projects of any scale. The included color-matched steel U-bracket allows for horizontal or vertical mounting, ensuring optimal placement and secure installation.

To support architectural design requirements, the enclosure and black grille are fully paintable, allowing seamless blending into any interior or exterior style. Yamaha also integrates an overload protection circuit to help protect internal components, ensuring long-term reliability. Stylish, adaptable, and sonically refined, the VS6 is an excellent solution for professionally installed sound.

Features

  • 6.5" 2-way surface mount speakers for commercial installed sound
  • Wide 90° coverage for clear and consistent audio distribution
  • Balanced dome tweeter and woofer deliver detailed full-range sound
  • Supports 70V and 100V distributed lines or standard low-impedance setups
  • IPX3-rated construction for indoor or outdoor installation
  • Dedicated black steel U-bracket included for horizontal or vertical mounting
  • Paintable enclosure and grille for seamless design integration
  • Overload protection circuit helps safeguard speaker components
  • Compact, modern design ideal for aesthetic environments
  • Black finish blends naturally with architectural interiors

Specifications

System Type 2-way, Bass-reflex
Components LF: 6.5" Cone
HF: 1" balanced dome tweeter
Frequency Range (-10 dB) 80 Hz - 20 kHz
Coverage Angle (Horizontal x Vertical) 90° x 90°
Nominal Impedance
Transformar Taps 70V: 25W, 12.5W, 6.3W, 3.1W
100V: 25W, 12.5W, 6.3W
Power Rating NOISE: 25W, PGM: 50W, MAX: 100W
Sensitivity (1W, 1m) 90 dB SPL
Maximum SPL (Calculated, 1m) 110 dB SPL
Connectors 2 pairs of barrier strip (parallel-wired)
Color Black
Packaging Pair
IP Rated IPX3
Dimensions (H x W x D) 12.1" (308 mm) x 7.5" (190 mm) x 8.6" (219 mm)
Weight 15.3 lbs (6.94 kg)

DOCUMENTS

In The Box

  • (2) VS6 Black Speakers
  • (2) Brackets
  • (4) Retaining Knobs
  • (2) Terminal Covers
  • (4) Screws
  • Owner's Manual
