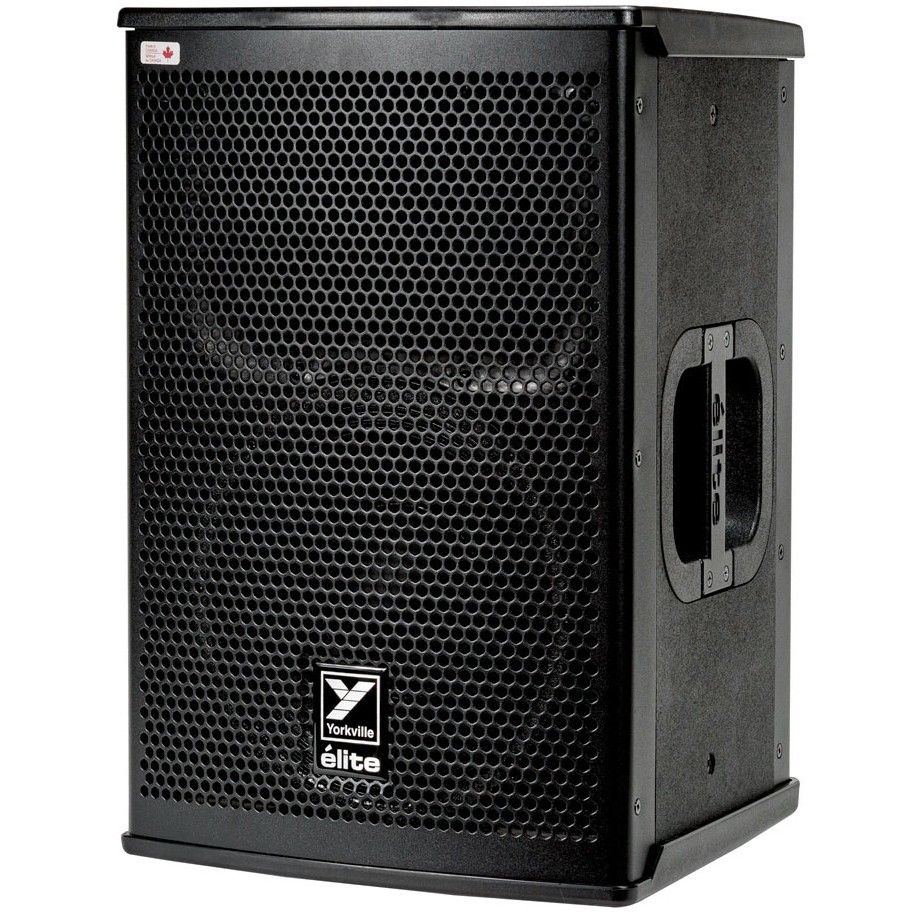

Yorkville Elite EF10P 10" Active Loudspeaker High Output, High Quality
and Extremely Durable Dedicated Front of House BoxBuilding upon the success of the original Elite series, the Yorkville EF10P is a powered, full-range loudspeaker with an integrated mixer, DSP, and Bluetooth control app. The unit utilizes a bi-amp module which delivers 500W to the 10" neodymium woofer and 100W to the 1.5" titanium compression driver; combined, they deliver a frequency response of 48 Hz to 20 kHz with a maximum SPL of 129 dB peak.

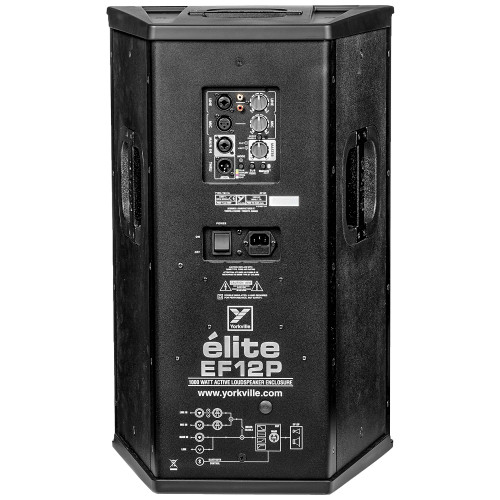

The rear panel offers a variety of inputs and outputs including a combination XLR-1/4" line input, an 1/8" TRS line input, and an XLR mic input. Additionally, there is a combo XLR-1/4" main input and an XLR thru output for connecting additional loudspeakers (up to 16). The built-in DSP offers four voice modes including club, concert, vocal, and user which is accessed and controlled via the free Yorkville control app available for iOS and Android. The Yorkville EF10P includes a 25' IEC power cord.
- Features
Features
- Completely redesigned next generation élite 600-watt front of house box
- ABS coated birch plywood cabinet construction
- Multiband DSP limiting with 4 playback performance modes
- 1.5-inch titanium diaphragm compression driver
- 10-inch neodymium woofer with 2.5-inch voice coil
- iOS and Android App for added cabinet control
- Made in Canada
- Specification
System Type 2-Way Active or Passive Active Program Power (Watts) 600 Watts (1200 Watts Peak) Max SPL (dB) 129dB Peak (123dB Continuous) Frequency Response (Hz +/- 3dB) 48 - 20k (Hz +/- 3dB) Crossover Frequency (Hz) 1400 Driver Configuration LF - 10-inch, HF - 1.5-inch Diaphragm HF Driver(s) 1.5 Inch Voicecoil (Titanium Diaphragm) HF Dispersion (°H x °V) 90 x 30 LF Driver(s) 10-inch neo magnet w/2.5-inch Voice coil HF Power Amplifier (Watts) 100 HF Amplifier Type 2-Tier High Headroom LF Power Amplifier (Watts) 500 LF Amplifier Type Class-D Power Cable 25 ft (7.6m) Heavy Gauge Detachable IEC Current Draw 2A Typical, 3.2A Max In / Out Connections 1 x XLR & 1/4-inch Combi-jack, RCA Line Inputs
1 x XLR microphone Input
1 x XLR & 1/4-inch Combi-jack Main Input
1 x XLR-M ThruputInput Impedance (Bal/UnBal) 95KOhms / 90kOhms Input Sensitivity (Vrms Sine) +4dBv / 1.23V Controls Mixer Enable
Mic Input w/level
Line Input w/level
DSP Mode (Club, Concert, Vocal, Custom)
Sub (100Hz HP Filter)
Bluetooth Control Enable
Master LevelBar Handles 2 x Side / 1 x Top Flypoints 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback) Pole Mount Adapter 1 Bottom (1 3/8-inch / 3.5cm) Enclosure Materials ABS Coated Baltic Birch Plywood Dimensions (H x W x D) 20" (508 mm) x 13.7" (348 mm) x 13" (330 mm) Weight 42 lbs (19.1 kg) - Documents
