    Yorkville EF12 Elite Series 12" Passive Loudspeaker 600 Watts (1200 Watts Peak)

    More Views

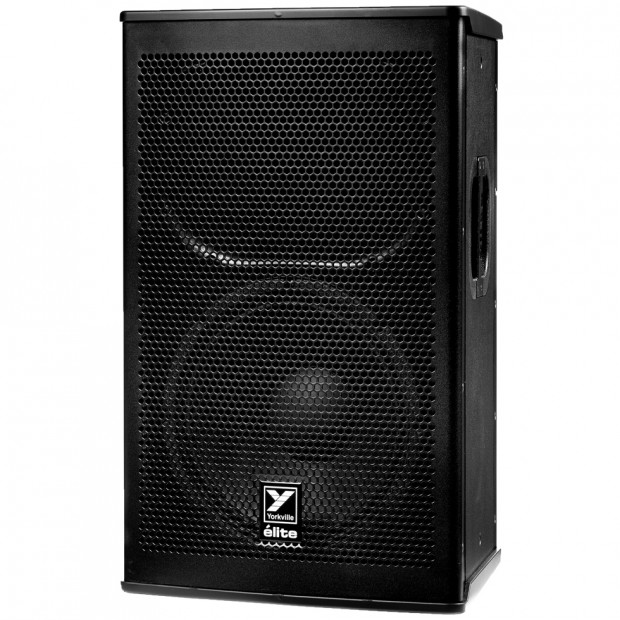

    Yorkville EF12 Elite Series 12" Passive Loudspeaker 600 Watts (1200 Watts Peak)

    Part # EF12
    Model # EF12
    The Yorkville EF12 Elite 12" 600W (1200W Peak) passive speaker features a 60° x 40° horn and provides elite-level performance. Provide the perfect solution for installations and venues with existing power amps.
    Availability: Usually arrives in 5-9 business days.

    Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.
    Description

    Details

    Yorkville EF12 Elite Series 12" Passive Loudspeaker

    The EF12 Elite 12" 600W (1200W Peak) passive speaker features a 60° x 40° horn and provides elite-level performance. Provide the perfect solution for installations and venues with existing power amps.

    Features

    Features

    • 12-inch two-way passive loudspeaker
    • 600 Watts (1200 Watts peak)
    • 127dB peak (124dB continuous) Max SPL
    • 55 - 18k (Hz +/- 3dB)
    • Made in Canada
    Specification
    System Type2-Way
    Active or PassivePassive
    Program Power (Watts)600 Watts (1200 Watts Peak / 300 Watts Continuous)
    Max SPL (dB)128dB Peak (125dB Continuous)
    Frequency Response (Hz +/- 3dB)55 - 18k (Hz +/- 3dB)
    Crossover Frequency (Hz)1900
    Driver Configuration12-inch, 3-inch Diaphragm
    HF Driver(s)3-inch Voice coil (Titanium Diaphragm)
    HF Dispersion (°H x °V)60 x 40
    LF Driver(s)12-inch Neo magnet w/3-inch Voice coil

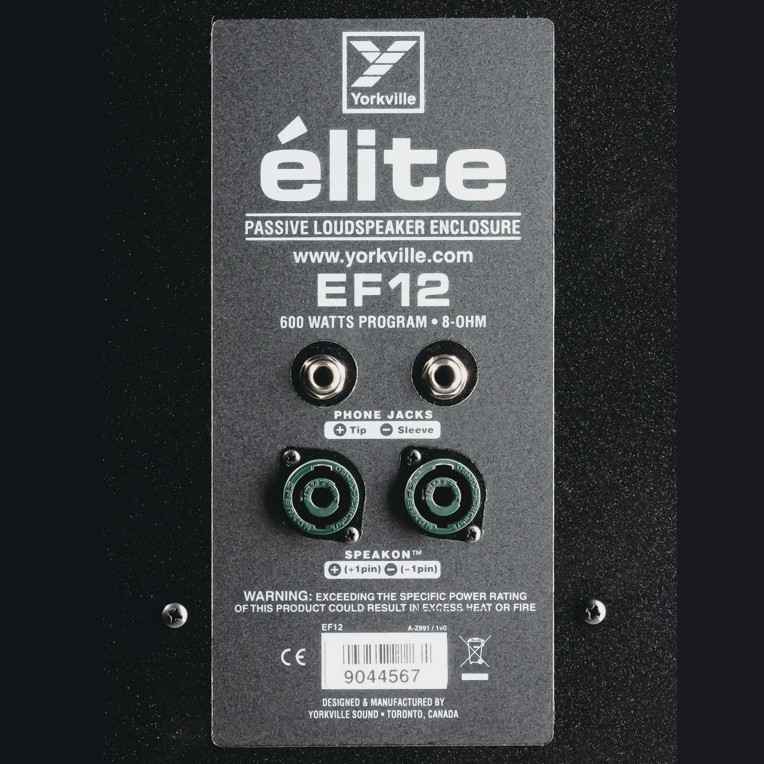

    Inputs(2) 1/4" Jack
    (2) Speakon 4-pin
    Bar Handles2
    Flying Hardware3/8-inch x 3 (2 Top, 1 Back)
    Pole Mount Adapter1 Bottom (1 3/8-inch / 3.5cm)
    Enclosure Materials15mm (5/8inch) 11-ply Russian Birch
    Dimensions (H x W x D)25.5" (647.7 mm) x 16" (406.4 mm) x 14" (355.6 mm)
    Weight51 lbs (23 kg)
    Documents

    Documents

    Owner's Manual
