Yorkville PS10P Parasource 10-Inch Powered Loudspeaker

The PS10P ParaSource powered loudspeaker is the most compact model in the Parasource series, designed to deliver professional performance in a portable format. Featuring a 10-inch woofer with a 2-inch voice coil and a 1-inch compression driver, it produces clear, balanced sound with strong low end and up to 1600 watts of peak power, reaching a maximum continuous SPL of 124 dB.

Advanced onboard DSP provides transparent multiband limiting to maintain clarity and protect critical midrange content such as vocals and instruments. Two selectable cabinet voicing modes allow the PS10P to adapt to different environments, with Concert mode optimized for longer throw and Club mode enhancing low frequency response. A selectable subwoofer mode applies a 100 Hz high-pass filter for easy integration with external subwoofers.

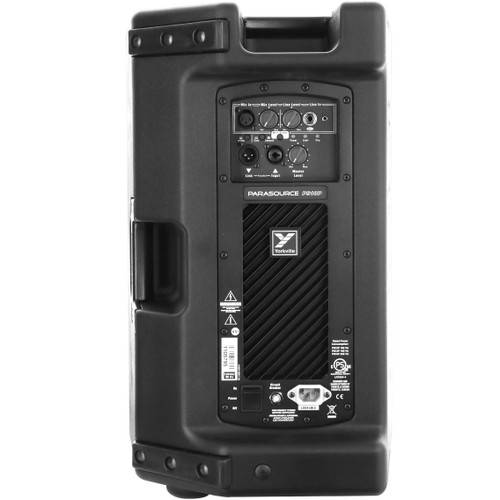

The rear panel includes a main Combi Jack input, parallel Link output, and a built-in 2-channel mixer with microphone and line inputs. Multiple Parasource cabinets can be linked together, enabling up to three onboard mixers without the need for an external console. Housed in a rugged, lightweight ABS cabinet with an integrated pole mount and reinforced flypoints, the PS10P is well-suited for portable, installed, or stage monitor use.

Features

Features

Compact 10-inch powered loudspeaker with 800W program power
1600W peak output with 124 dB continuous SPL
Onboard DSP with multiband limiting
Selectable Concert and Club voicing modes
Subwoofer mode with 100 Hz high-pass filter
Built-in 2-channel mixer with mic and line inputs
Linkable design supports multiple Parasource speakers
Lightweight ABS cabinet construction
Integrated stand mount adapter and reinforced flypoints

Specification

System Type	2-way
Powered or Passive	Powered
Program Power	800 watts (1600 watts peak)
Max SPL	127 dB continuous
Frequency Response (Hz +/- 3 dB)	55 - 20k (Hz +/-3 dB)
Crossover Frequency	1.6 kHz
LF Woofer	10"
HF Driver(s)	1"
HF Dispersion (H x V)	90° x 70°
Power Cable	Detachable IEC
Inputs	2 x XLR, 2 x 1/4"
Mixer Controls	Sub Mode HPF, Bass Boost, Mixer Enable
Level Controls	Master Level, Mic Level, Line Level
EQ Controls	Pushbutton select, Concert, Club, w/Sub
Other Features	Sub In/Out, Mixer In/Out, Stereo/Mono Out
Flying Hardware	2 x Top, 2 x Bottom, 2 x Pullback EYEBOLT1/4A
Bar Handles	1 x Side/1 x Top
Pole Mount Adapter	1 Bottom (1 3/8"/3.5 cm)
Enclosure Materials	ABS Cabinet
Grille	Powdered Coated Perforated Steel
Dimensions (H x W x D)	23" (584.2 mm) x 14" (355.6 mm) x 12" (304.8 mm)
Weight	40 lbs (18.2 kg)
