Yorkville PS15P Parasource 15" 2-Way 1400W Powered Loudspeaker

Description

Details

Yorkville PS15P Parasource 15-Inch Powered Loudspeaker

The PS15P Parasource powered loudspeaker is designed for demanding professional sound reinforcement applications where power, clarity, and flexibility are essential. Featuring a 15-inch woofer with a 3-inch voice coil and a 1-inch compression driver, it delivers deep low-frequency performance, clear highs, and up to 4400 watts of peak power with a maximum continuous SPL of 129 dB.

Advanced onboard DSP ensures consistent, controlled sound through transparent multiband limiting that protects midrange clarity for vocals and lead instruments. Two selectable cabinet voicing modes allow the PS15P to adapt to different environments, with Concert mode optimized for longer throw and Club mode enhancing low frequency response. A selectable subwoofer mode applies a 100 Hz high-pass filter, allowing easy pairing with external subwoofers without the need for an external crossover.

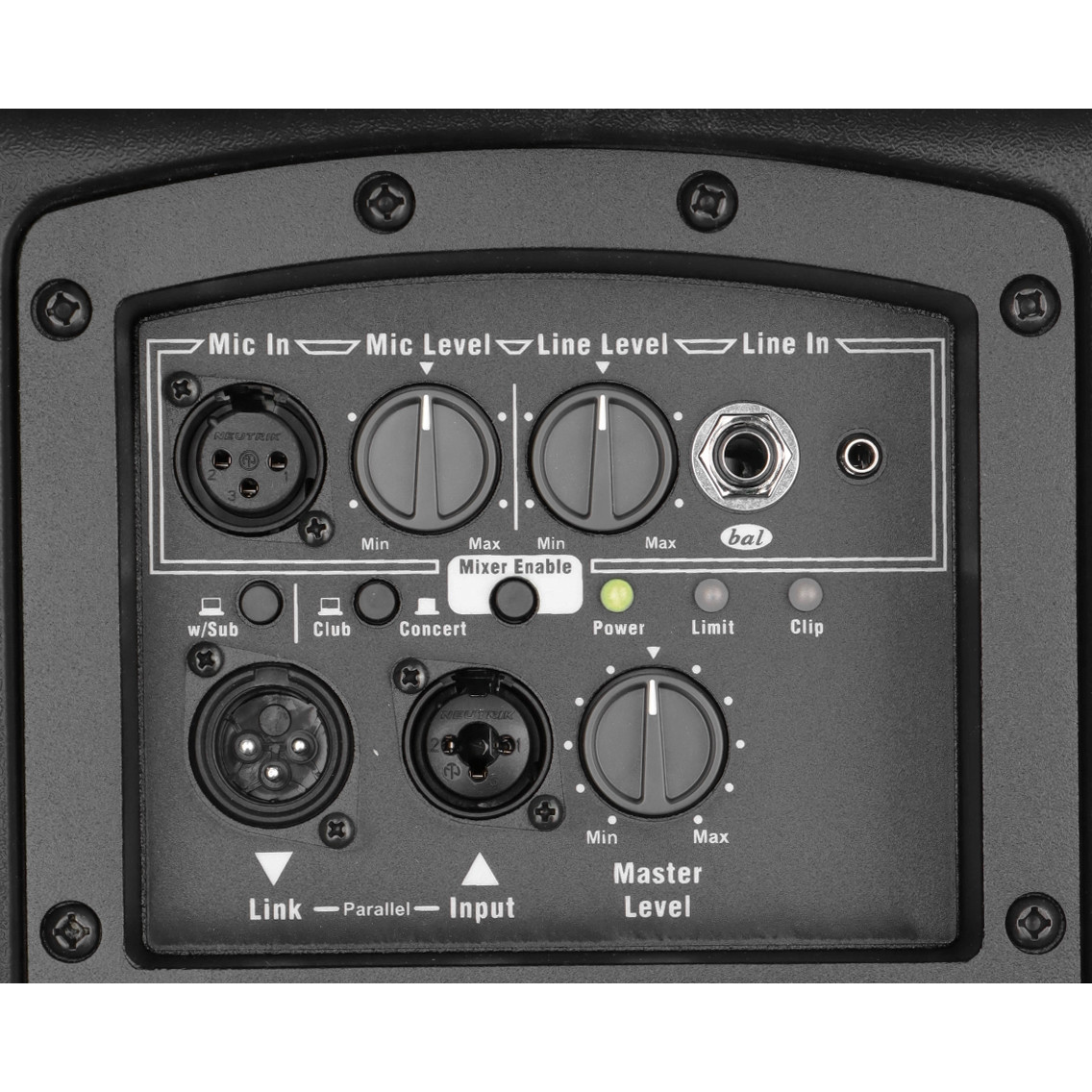

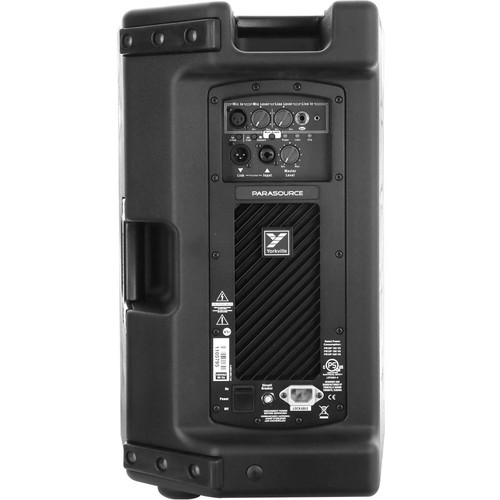

The rear panel features a main Combi Jack input, parallel Link output, and a built-in 2-channel mixer with microphone and line inputs. Multiple Parasource cabinets can be linked together, enabling up to three onboard mixers without an external console. Housed in a rugged, lightweight ABS cabinet with an integrated pole mount adapter and reinforced flypoints, the PS15P is well-suited for portable systems, permanent installations, or stage monitor use.

Features

Features

High output 15-inch powered loudspeaker with 1400W program power
4400W peak output with 129 dB continuous SPL
Onboard DSP with transparent multiband limiting
Selectable Concert and Club voicing modes
Subwoofer mode with 100 Hz high-pass filter
Built-in 2-channel mixer with mic and line inputs
Linkable design supports multiple Parasource speakers
Lightweight ABS cabinet construction
Integrated stand mount adapter and reinforced flypoints

Specification

System Type	2-way
Powered or Passive	Powered
Program Power	1400 watts (4400 watts peak)
Max SPL	134 dB continuous
Frequency Response (Hz +/- 3 dB)	45 - 26k (Hz +/-3 dB)
Crossover Frequency	1.0 kHz
LF Woofer	15"
HF Driver(s)	38 mm Compression Driver with 1" Exit
HF Dispersion (H x V)	85° x 50°
Power Cable	Detachable IEC
Inputs	2 x XLR, 2 x 1/4"
Mixer Controls	Sub Mode HPF, Bass Boost, Mixer Enable
Level Controls	Master Level, Mic Level, Line Level
EQ Controls	Pushbutton select, Concert, Club, w/Sub
Other Features	Sub In/Out, Mixer In/Out, Stereo/Mono Out
Flying Hardware	2 x Top, 2 x Bottom, 2 x Pullback EYEBOLT1/4A
Bar Handles	1 x Side/1 x Top
Pole Mount Adapter	1 Bottom (1 3/8"/3.5 cm)
Enclosure Materials	ABS Cabinet
Grille	Powdered Coated Perforated Steel
Dimensions (H x W x D)	30.75" (781.05 mm) x 20.5" (520.7 mm) x 14.2" (360.68 mm)
Weight	65 lbs (29.5 kg)
