The SA102 expands the Synergy Array Series with a compact yet powerful 10-inch full-range powered loudspeaker built for medium and large venues, outdoor festivals, and inclined-seating theatres. Delivering 2400 watts of peak power (1200 watts program), the SA102 combines high output with exceptional clarity and control.
At the heart of the SA102 is Tom Danley's patented Paraline Lens and Synergy Horn technology. This innovative design shapes the wavefront to precisely match the horn's physical coverage pattern while coupling the high-frequency driver and 10-inch woofer into a single coherent source. The result is increased efficiency, outstanding directivity control, and reduced comb-filtering often associated with traditional array systems.
The SA102 supports vertical, inverted vertical, and horizontal placement. Its asymmetrical vertical coverage allows users to change directivity simply by inverting the cabinet, eliminating the need for complex steering software or mechanical tilting. When paired with the SA115S subwoofer, the SA102 creates a powerful, high-performance point source system with remarkable clarity and impact.
| System Type | Full-Range Powered Speaker |
|---|---|
| Powered or Passive | Powered |
| Program Power | 2400 watts peak, 1200 watts program |
| Measured Max SPL | 127 dB Cont. 133 dB Peak (C-Weighted, Max Hold) |
| Frequency Response | 60 - 18k (Hz +/- 3 dB) |
| Crossover Frequency | 750 Hz |
| Cabinet Configuration | Patented Synergy Horn and Paraline Lens Technology |
| LF Woofer | 1 x 10" (3" Voice Coil) |
| HF Driver | 1 x 4" |
| HF Dispersion (°H x °V) | 30 x 45 Asymmetrical (7 Up, 38 Down) |

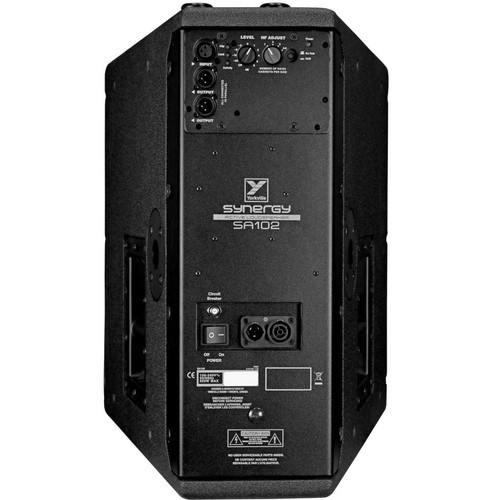

| Power Cable | Removable Locking Powercon True Input and Loop Thru Output |
| Level Controls | Volume |
| EQ Controls | HF Boost select, Fullrange/Sub switch |
| Inputs | 1 XLR, 2x XLR Loop |
| Standard Rigging Hardware | 1/4" - 20 Thread Eyebolts (4x Top, 4x Bottom) |
| Stacking Feature | Interlocking UHMW Feet (Top and Bottom) |
| Bar Handles | 2 (Sides) |
| Pole Mount Adapter | 1x Bottom (1 3/8-inch/3.5 cm) |
| Enclosure Materials | Multi-ply 15 mm Birch Plywood |
| Grille | Powdered Coated Perforated Steel |
| Covering/Finish | Paint |
| Dimensions (H x W x D) | 22.8" (579.12 mm) x 17.4" (441.96 mm) x 21.3" (541.02 mm) |
| Weight | 69 lbs (31.3 kg) |
