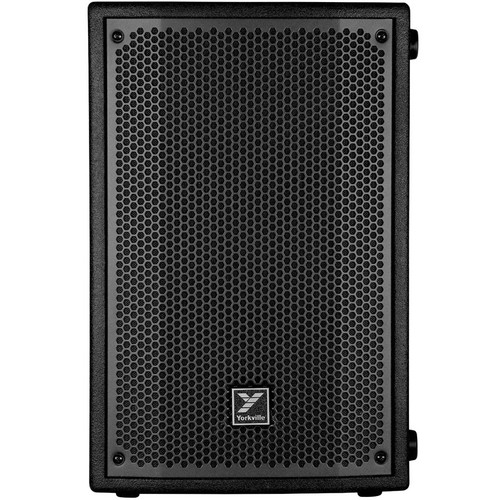

The YXL10SP is the most compact and versatile subwoofer in the YXL Series, designed to deliver professional-quality bass in a lightweight, portable package. With 1000 watts of peak power, this 10" powered subwoofer provides deep, controlled low frequencies without overpowering the mix, making it perfect for small to mid-sized venues, mobile DJs, and rehearsal spaces.

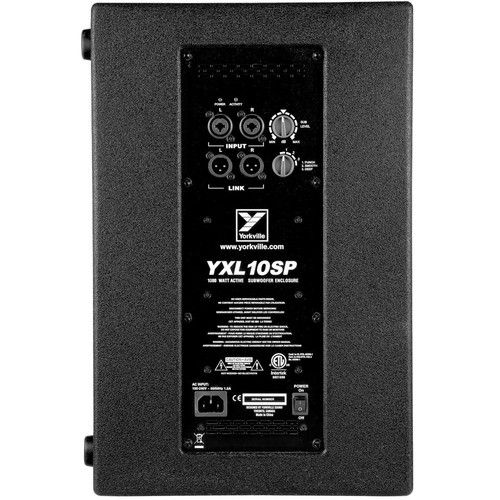

Featuring two XLR/1/4" combi-jack inputs and two XLR link outputs, the YXL10SP integrates seamlessly with any full-range speaker. Advanced DSP with component protection ensures reliable performance while protecting your investment, and three selectable voicing modes, Punch, Smooth, and Deep, allow you to tailor the low-end response to your room or mix.
Compact, lightweight, and easy to transport, the YXL10SP is an ideal companion for other YXL top boxes, providing clear, powerful bass reinforcement with excellent price-to-performance value.
| System Type | Subwoofer |
|---|---|
| Powered or Passive | Powered |
| Power Rating | 1000 watts peak, 500 watts program |
| Max SPL | 125 dB continuous |
| Frequency Response | 50 - 100 Hz (Hz +/- 3 dB) |
| Crossover Frequency | 100 Hz |
| LF Woofer | 10" (2.4" Voice Coil) |
| LF Amplifier Type | Class D |
| Cooling Scheme | Speed Controlled Fan |
| Power Cable | Yes (Detachable IEC) |
| Level Controls | Master |
| EQ Controls | Pushbutton select, Punch, Smooth, Deep |
| Inputs | 2x Combi-jack (XLR/1/4") |
| Outputs | 2x LINK (XLR Male) |
| Bar Handles | 1x Top |
| Pole Mount Adapter | 1x Side (1 3/8-inch/3.5 cm) |
| Enclosure Materials | 12 mm Plywood |
| Grille | Powdered Coated Perforated Steel |
| Covering/Finish | Textured Paint |
| Dimensions (H x W x D) | 18.8" (477.52 mm) x 12" (304.8 mm) x 18.3" (464.82 mm) |
| Weight | 34.5 lbs (15.6 kg) |
