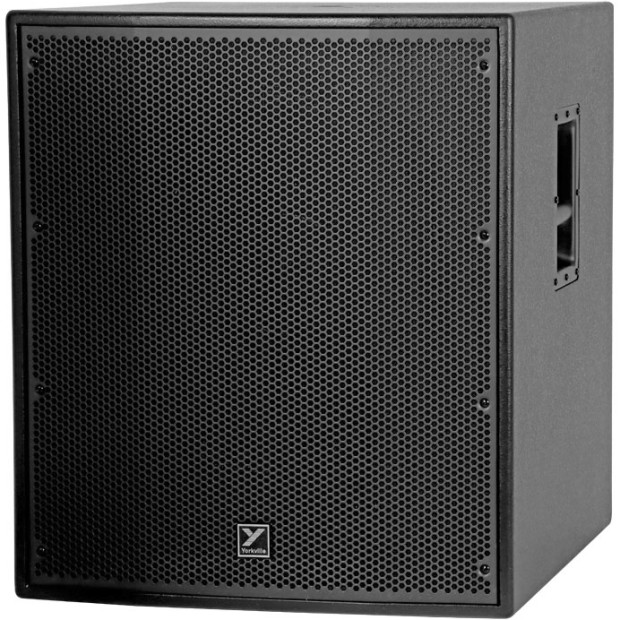

The YXL18SP is the largest and most powerful subwoofer in the YXL Series, engineered to provide professional-quality low-frequency reinforcement for mid-sized and large venues. With 1000 watts of peak power (500W program), this 18" powered subwoofer delivers deep, controlled bass that complements any full-range speaker or YXL top box.
Equipped with two XLR/1/4" combi-jack inputs and two XLR link outputs, the YXL18SP integrates seamlessly into a wide range of PA setups. Advanced DSP with component protection ensures reliable performance while safeguarding your investment. Three selectable voicing modes, Punch, Smooth, and Deep, allow precise tuning of the low-end response to suit the room and application.
Compact for its class and easy to transport, the YXL18SP offers a combination of power, clarity, and value that makes it an ideal choice for performers and venues seeking professional bass reinforcement.
| System Type | Subwoofer |
|---|---|
| Powered or Passive | Powered |
| Power Rating | 1000 watts peak, 500 watts program |
| Max SPL | 130 dB continuous |
| Frequency Response | 40 - 100 Hz (Hz +/- 3 dB) |
| Crossover Frequency | 100 Hz |
| LF Woofer | 18" (3" Voice Coil) |
| LF Amplifier Type | Class D |
| Cooling Scheme | Speed Controlled Fan |
| Power Cable | Yes (Detachable IEC) |
| Level Controls | Master |
| EQ Controls | Pushbutton select, Punch, Smooth, Deep |
| Inputs | 2x Combi-jack (XLR/1/4") |
| Outputs | 2x LINK (XLR Male) |
| Bar Handles | 2x Side |
| Pole Mount Adapter | 1x Top (1 3/8-inch/3.5 cm) |
| Enclosure Materials | 12 mm Plywood |
| Grille | Powdered Coated Perforated Steel |
| Covering/Finish | Textured Paint |
| Dimensions (H x W x D) | 25.5" (647.7 mm) x 21.8" (553.72 mm) x 24.8" (629.92 mm) |
| Weight | 78 lbs (35.4 kg) |
