Bose EdgeMax™ Multi-Media Presentation Room Sound System
Audio Visual installations are one of the most successful ways to dramatically enhance your overall presentations and capture the attention and imagination of your audience. Utilize this system in large video presentation rooms such as larger conference halls, hospitality banquet facilities, university lecture halls, executive boardrooms, conference rooms, meeting rooms, training rooms or anywhere multi-media presentation events are held.

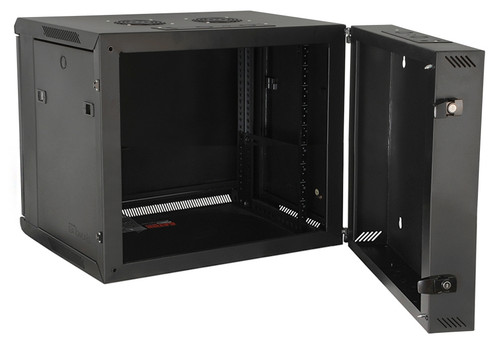

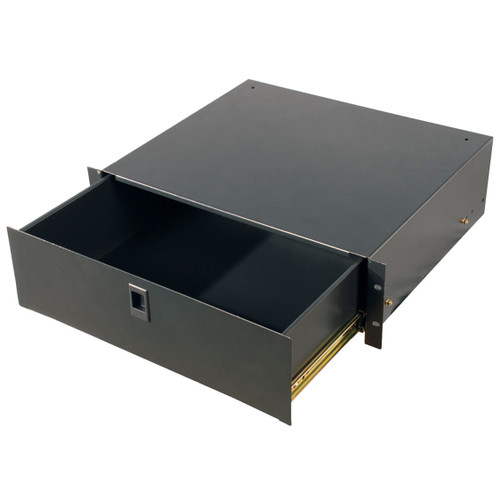

This AV flex room sound system includes four Bose EdgeMax™ EM90 in-ceiling premium loudspeakers with proprietary PhaseGuide® technology to create clear room-filling audio coverage, perfect for applications where mounting ceiling speakers in the middle of the room are not an option. This media presentation audio system also includes a Bose PowerShare PS602 power amplifier, Shure SCM820 8-channel digital intellimix automatic mixer, Shure QLXD124/85 handheld and lavalier combo wireless microphone system, Tascam BD-01U Blu-Ray player, Atlas Sound AP-S15LA 15LA power conditioner and distribution unit, Gator GRW2009508 9U wall rack, Gator GRW-DRW3 rack drawer and all the cables you need. This system will ensure that your multimedia presentations are delivered with optimal impact.
For maximum coverage, the unique Bose EdgeMax™ speakers should be spaced approximately 30 feet apart and are ideal for ceilings up to 14 feet.

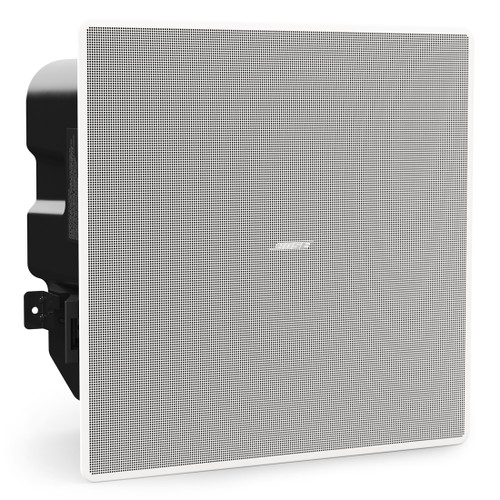

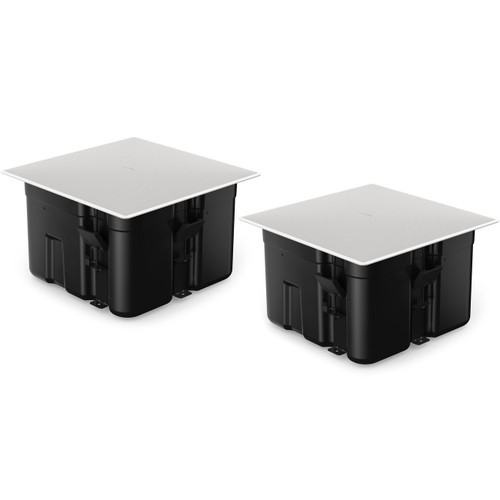

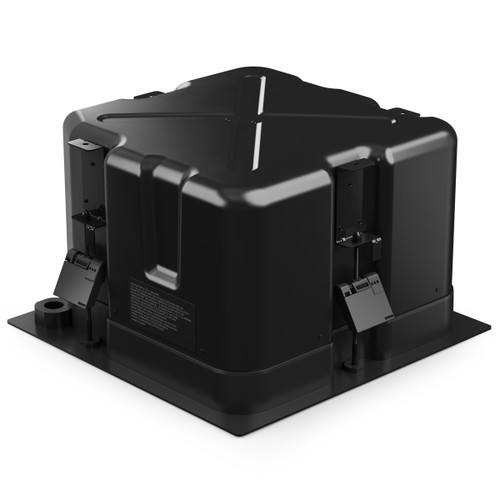

Bose EdgeMax™ EM90 Premium In-Ceiling Loudspeakers

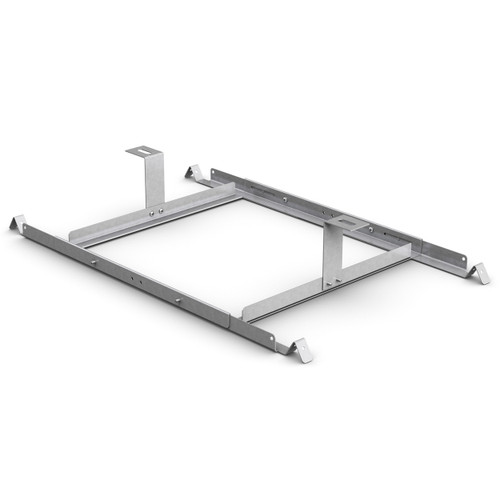

The Bose EdgeMax™ EM90 in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide® technology to create a category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax™ loudspeakers provide improved audio quality and coverage, while reducing the number of required units. Bose Professional EdgeMax™ Premium In-Ceiling Speakers are ideal for applications such as retail stores, restaurants, hospitality venues, hotels, offices, meeting rooms and architectural custom sound design applications. They feature magnetically attached white grilles for quick access to wiring, and 8Ω or 70/100V transformer tap settings, as well as auto-hold, spring-loaded mounting arms for fast and easy installations, and they ship with an accompanying tile bridge. They are UL1480 listed for air-handling plenum space code requirements.
Bose PowerShare PS602 Adaptable Power Amplifier
The Bose® PS602 is a 2-channel installed amplifier that allows its total 600 watts to be shared across both outputs. Independently control the output level, EQ, and low-impedance/high-impedance (Low-Z/Hi-Z) settings for each output. Onboard configurable loudspeaker processing and direct access to zone controllers eliminate the need for an additional signal processor in many installations, while outstanding audio performance and reliability are assured with patented technologies inherited from the field-proven PowerMatch® line. This unique set of features and technologies makes PowerShare one of the most versatile high-performance amplifiers available.
Shure SCM820 8-Channel Digital IntelliMix Automatic Mixer
The Shure SCM820 is an 8-channel digital automatic mixer designed for use in speech applications, including sound reinforcement, broadcasting, and audio recording. It uses IntelliMix® technology to dramatically improve audio quality when many channels of microphones need to operate simultaneously. Multiple I/O configurations and networking options ensure analog and digital connectivity between devices.

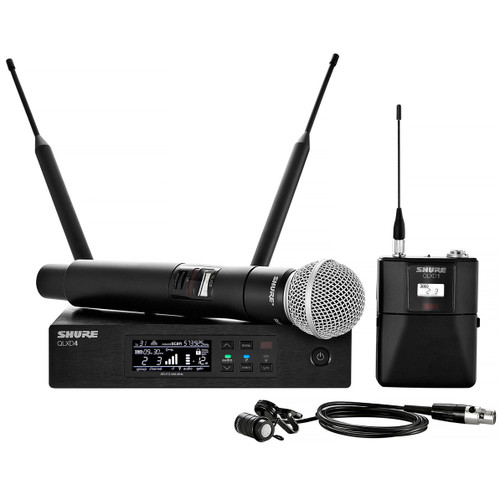

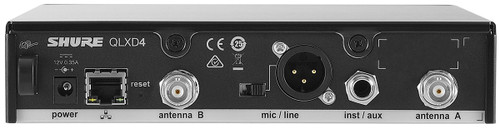

Shure QLXD124/85 Handheld and Lavalier Combo Wireless Microphone System
Featuring an SM58 handheld wireless microphone transmitter and WL185 lavalier microphone, QLXD124/85 combines professional features with simplified setup and operation. The QLXD124/85 Handheld and Lavalier Combo Wireless Microphone System is part of the QLX-D wireless systems family. QLX-D delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.
Note: Bodypack and handheld transmitters cannot be used simultaneously.

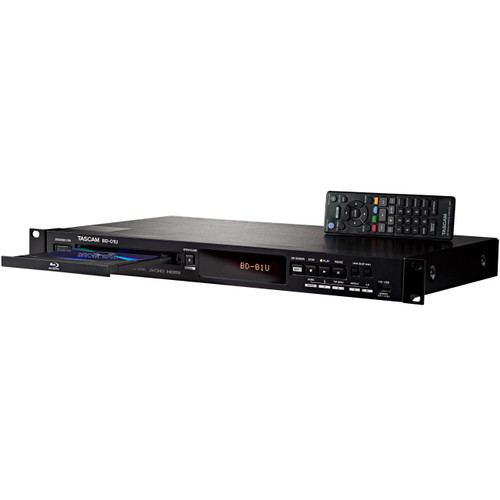

Tascam BD-01U Rackmount Blu-Ray Player

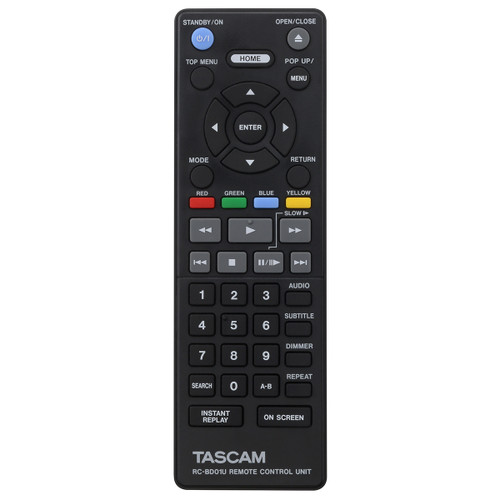

TASCAM's BD-01U is a rugged, professional, single-rackspace Blu-Ray player for installation and studio use. Building on the success of the install-standard DV-D01U, the Hi-Definition player includes control via LAN, RS-232C, and an included wireless remote. DVD, WAV, MP3, DTS, and Dolby playback are also supported from optical and USB flash drives. Media can be played back at up to 130% speed. A pair of balanced XLR and RCA unbalanced outputs is provided on the rear panel, in addition to the HDMI audio/video output. The analog outputs can be attenuated up to -12dB. Both optical and coaxial digital audio outs are also provided. Other professional features include a defeatable on-screen display, chapter repeat function, and JPEG slideshow. TASCAM channels the years of experience gained with the DV-D01U to create the ultimate source playback for education, houses of worship, boardroom, and other high-stress installs.
Atlas Sound AP-S15LA 15LA Power Conditioner and Distribution Unit
The AP-S15LA features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies. Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15LA's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds. The AP-S15LA includes a pull out from lamp, 12 foot removable IEC cord with retainer.
Optional:
Audio-Technica U859QL 18.9" Gooseneck Microphone with AT8647QM/S Shock Mount Plate
Designed to plug directly into a panel- or desk-mounted XLRF-type connector, the U859QL features an ultra-flexible small-diameter gooseneck and accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine line cardioid polar patterns. Equipped with self-contained electronics, the phantom-powered microphone also offers an 80 Hz low-cut UniSteep filter that reduces pickup of low-frequency ambient noise. The microphone is 18.9" long.
This Audio-Technica shock-mount plate effectively isolates mounted microphones from impact vibration and mechanical noise normally transmitted from the surface. It is intended for use with microphones mounted on lecterns, pulpits, conference tables and similar surfaces. Designed especially for UniPoint gooseneck microphones, it may be used with other lightweight microphones as well. This mount incorporates a sturdy yet flexible suspension panel which provides the mechanical isolation. The AT8647QM/S accepts plug-in mics and features a phantom-powered mute switch with a lighted "on" indicator.
