Classroom Sound System with 2 Bose EdgeMax EM90 Premium In-Ceiling Loudspeakers Pure Resonance Audio MA30BT Bluetooth Mixer Amplifier and Wireless Microphone
Part # CRSS-2EM90MA30BT
Model # CRSS-2EM90MA30BT

This Bose EdgeMax™ educational classroom sound system comes with 2 Bose EdgeMax™ EM90 in-ceiling premium loudspeakers, a Pure Resonance Audio MA30BT Bluetooth 7-channel mixer amplifier and a Samson Concert 288 all-in-one dual channel wireless system, was engineered to meet the demands of today's high technology classrooms.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Bose EdgeMax™ Educational Classroom Sound System

This Bose classroom sound system comes with 2 Bose EdgeMax™ EM90 in-ceiling premium loudspeakers that create room-filling coverage, a Pure Resonance Audio MA30BT Bluetooth 7-channel mixer amplifier and a Samson Concert 288 all-in-one dual channel wireless system. This solution was engineered to meet the demands of today's high technology classrooms and with Bluetooth capability it allows you to connect with your phone, iPod, iPad, MP3 player, computer or any other Bluetooth-enabled device. It is perfect for classrooms, k12 environments, school lecture halls, study halls, labs, and any other application where high-performance audio quality and integration with multiple media formats is needed. Fill your learning environment with a crystal clear intelligible sound.

For maximum coverage, the unique Bose EdgeMax™ speakers should be spaced approximately 30 feet apart and are ideal for ceilings up to 14 feet.

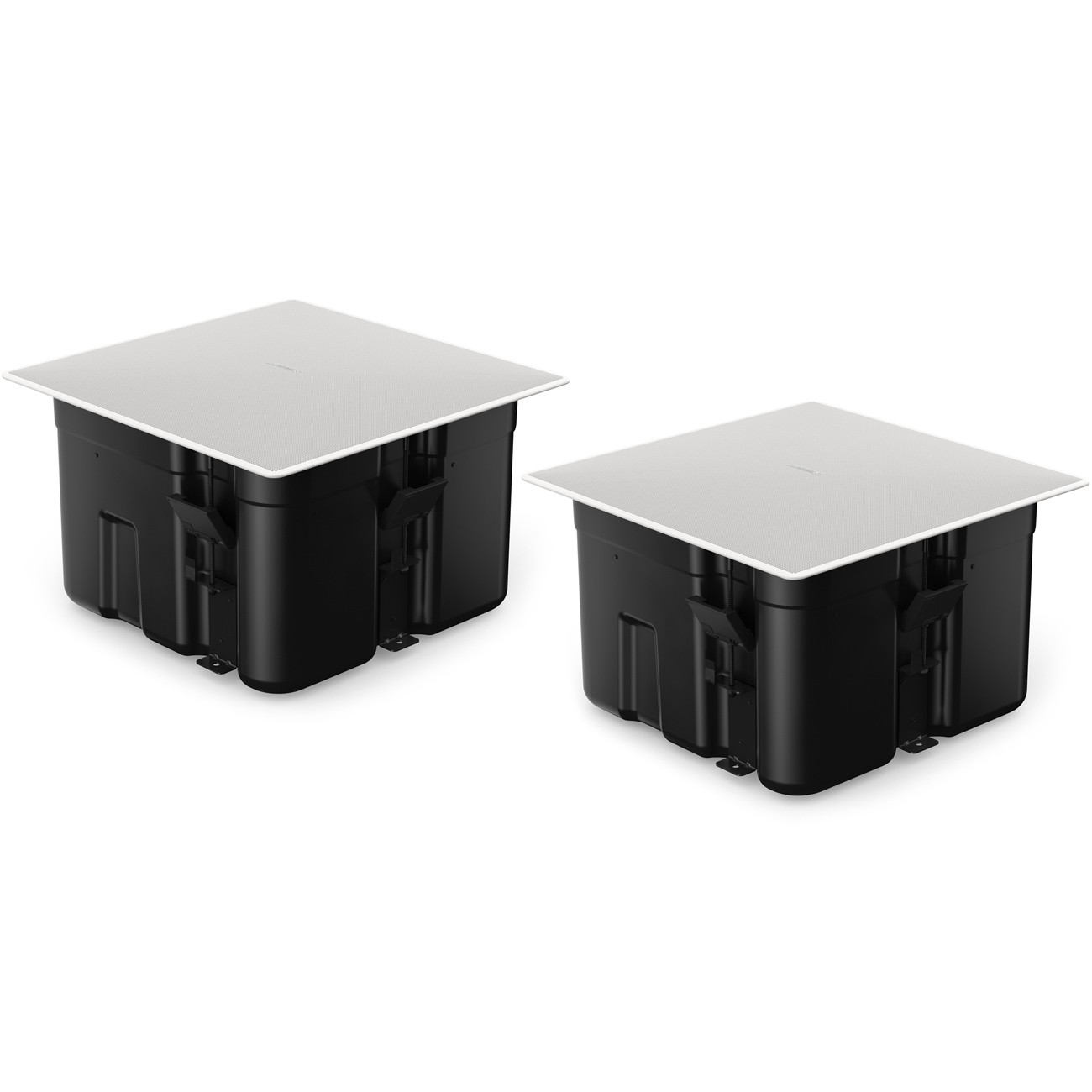

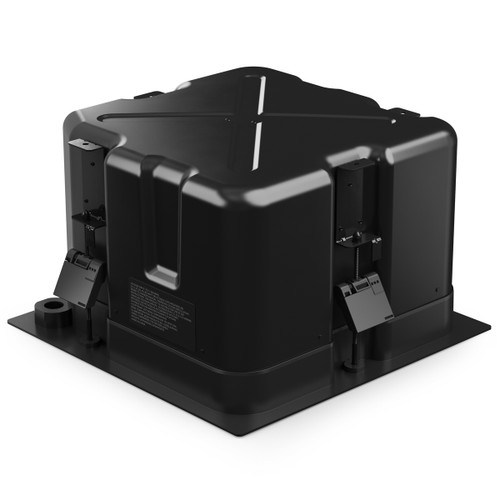

Bose EdgeMax™ EM90 Premium In-Ceiling Loudspeakers

The Bose EdgeMax™ EM90 in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide® technology to create a category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax™ loudspeakers provide improved audio quality and coverage, while reducing the number of required units. Bose Professional EdgeMax™ Premium In-Ceiling Speakers are ideal for applications such as retail stores, restaurants, hospitality venues, hotels, offices, meeting rooms and architectural custom sound design applications. They feature magnetically attached white grilles for quick access to wiring, and 8Ω or 70/100V transformer tap settings, as well as auto-hold, spring-loaded mounting arms for fast and easy installations, and they ship with an accompanying tile bridge. They are UL1480 listed for air-handling plenum space code requirements.

Pure Resonance Audio MA30BT 7-Channel Commercial Mixer Amplifier with Bluetooth

This 7-channel mixer-amplifier from Pure Resonance Audio with built-in 70V/100V transformer technology provides a simple to operate and reliable 6-input solution with a built in Bluetooth media player for installation in commercial applications. Balanced and unbalanced inputs 70 Volt, 100 Volt, 8 ohm or 4 ohm outputs, and a compact size and interface are all combined to make this mixer-amp an easy choice for any application in need of background music and general announcements. It is perfect for use in restaurants, retail stores, offices, schools, hospitality, etc. and is equipped with paging and MOH (Music On Hold).

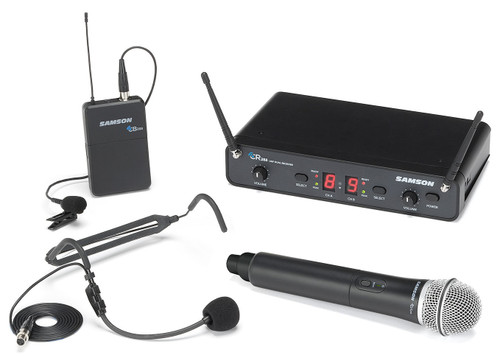

Samson Concert 288 All-In-One Dual Channel Wireless System

Samson takes the worry out of wireless with the Concert 288 All-In-One Wireless System. Offering easy setup, flawless operation and premium sound, it’s the ideal high-performance UHF wireless solution for vocal performances, presentations, Q&A sessions, house of worship, educational applications and more where two users are needed. The dual-channel, frequency-agile Concert 288 All-In-One provides a best-in class 300’ wireless range and can support the simultaneous operation of up to 24 systems/48 performers (region dependent). The system’s rack-mountable CR288 Wireless Receiver utilizes a true diversity, dual-antenna design to avoid dropouts. To reduce interference, the CR288 offers 32 selectable frequency options between the two performers. Tone Key technology further prevents stray RF interference from affecting performance. The CR288 provides fast and easy setup with IR technology that wirelessly matches the operating channels of the transmitters to the receiver, as well as a dual 7-segment LED to monitor the channels. The Concert 288 All-In-One features a CH288 Handheld Transmitter with a Q6 Dynamic Microphone capsule, as well as a CB288 Beltpack Transmitter. To pair with the CB288, system also includes both an LM5 Lavalier Microphone and an HS5 Headset Microphone (both with locking connectors). These mic options bring maximum versatility to any dual-user application, particularly duet performances, as well as audience participation and interview situations. The transmitters, which can operate for up to eight hours on two AA batteries each, are engineered to the finest detail to provide the ultimate in sound reproduction.

Features

Features

Bose EdgeMax EM90 In-Ceiling Loudspeakers:

  • PhaseGuide technology produces unique asymmetrical vertical pattern for room-filling sound
  • Provides nominal 90° horizontal coverage from center ceiling-wall locations
  • Full-frequency range 60 – 18,000 Hz (-10 dB)
  • Maximum SPL up to 119 dB continuous and 125 dB peak
  • 2-way system combines Bose 1.3"-diaphragm compression driver and 8" woofer
  • Passive crossover with 8 Ω or 70/100V transformer taps

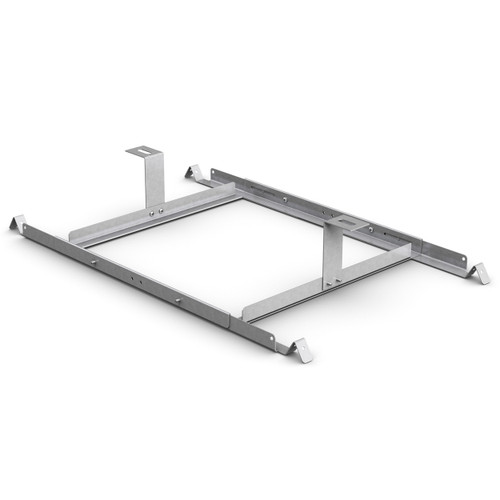

  • New auto-hold, spring-loaded mounting arms for fast, easy installs; ships with tile bridge
  • UL1480 listing for air-handling (plenum) space installation

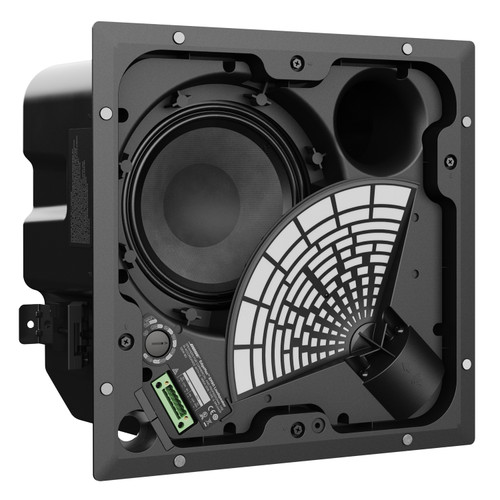

  • Magnetically attached white grille for quick access to wiring and tap settings
  • Black grilles and rough-in pan accessories available

Pure Resonance Audio MA30BT 7-Channel Bluetooth Mixer Amplifier:

  • 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
  • Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
  • MP3 Player, FM Radio & Bluetooth (with IR remote control)
  • USB and SD inputs on front panel
  • Power output rating 30 Watts
  • Built-in 70V/100V transformer
  • Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
  • Mic 1 of balanced XLR input (with phantom power)
  • Mic 2-3 microphone or line switchable
  • Line 1-2 input of RCA inputs
  • DIP switches for Mic/Line, phantom power and microphone priority
  • Unbalanced 6.3 mm phone jack input
  • One RCA line output (0.775 line level 0 dBV)
  • Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
  • LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
  • Short-circuit, clip, overload and high temp protection
  • 24 VDC Emergency backup supply
  • 115V 60 Hz & 24V DC both operation system

Samson Concert 288 All-In-One Dual Channel Wireless System:

  • Dual-channel, high-performance UHF wireless system
  • 1/4" audio cable, AC adapter and rackmount kit included
  • Multiple frequency options for interference-free performance in any environment
  • Up to 24 systems can be operated simultaneously (region dependent)
  • Separate Volume controls for each wireless signal
  • Dual balanced XLR outputs for routing signals to two separate mixer channels
  • 1/4" unbalanced mix output to combine signals to one output channel
  • Q6 Dynamic Microphone capsules
  • Offers up to eight hours of battery life using two AA batteries
  • 300' operating range
System Includes

System Includes

  • (2) Bose EdgeMax EM90 In-Ceiling Loudspeakers with 90 Degree Coverage
  • (1) Pure Resonance Audio MA30BT 7-Channel Bluetooth Mixer Amplifier
  • (1) Samson Concert 288 All-In-One Dual Channel Wireless System
  • (50') West Penn 225 Audio Speaker Cable
