Spend less time setting up your gear and more time enjoying it. The new L1 Model 1S portable line array system delivers a potent combination of portability and performance. It's compact and light enough to make setup quick and easy, yet powerful enough to fill a mid-sized venue. Includes one B2 bass module for more flexibility and even greater power at the low end.
Put your PA behind you
The vertical configuration of the system's small, closely spaced drivers allows the L1 Model 1S system to project sound forward and to the sides—delivering 180-degree coverage—but very little up and down, reducing unwanted reverberation. This produces consistent tonal balance as sound spreads more evenly across the stage and into the audience, and the volume level drops off much more slowly than with a conventional speaker.
Unique Bose® technologies enable the system to serve as both PA and monitor. It can be positioned behind or to the side of the performer—and you hear just what the audience hears. You're in control, and there's no need for conventional monitors, mixers and PA systems.
Convenience to go
The three components of the L1 Model 1S system—upper array, lower extension and power stand—connect quickly and easily without the need for separate speaker stands. Setup and breakdown take just minutes. And everything stores neatly into the included carry bags, making transport easy, too.
Full, flexible bass

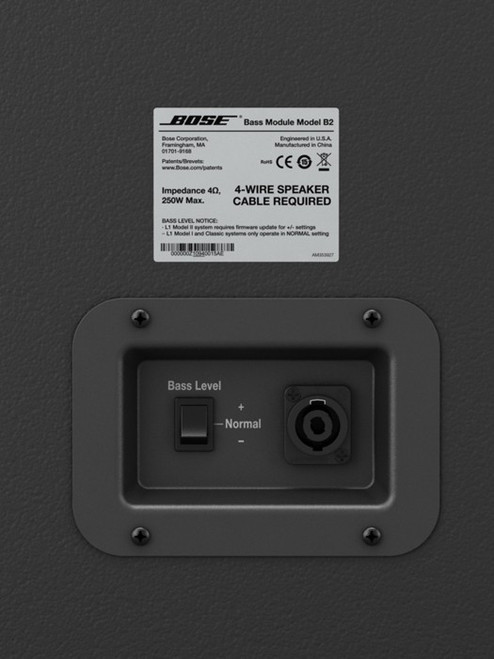

The high-performance B2 bass module delivers greater low-frequency output when you need more powerful bass for larger audiences. The module includes three settings for increased flexibility. The normal setting is ideal for bass guitar or when miking a kick drum. A higher setting is designed for DJ/music playback applications. And the lower setting works well for acoustic guitar and vocals.
Multichannel flexibility
The optional T1 ToneMatch audio engine adds four more channels, so you can expand the system and connect additional instruments and microphones. You can also use the ToneMatch engine to fine-tune your sound with powerful, proprietary tone-shaping tools.- Features
Features
L1 Model 1S System
- Compact, lightweight enclosure
- Recommended for audiences up to 300
- 12-speaker articulated line array delivers 180-degree horizontal sound coverage
- Produces consistent tonal balance with less volume drop-off over distance
- Easy transport, setup and breakdown
- Spatial Dispersion™ and Articulated Array® speaker technology

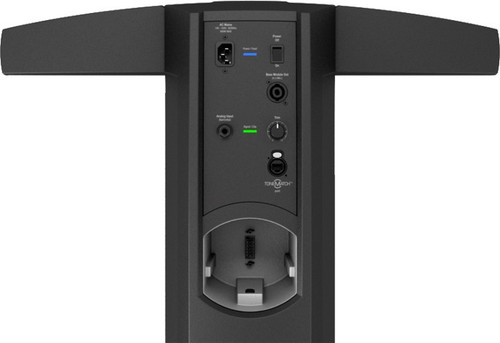

- Integrated power amplifiers
- ToneMatch® port
- Analog input, trim control and signal/clip LED
- Bass module out
- Interlocking design
- Retractable legs

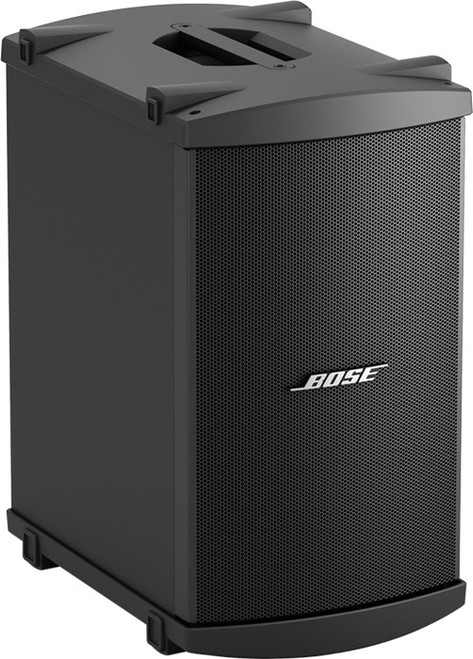

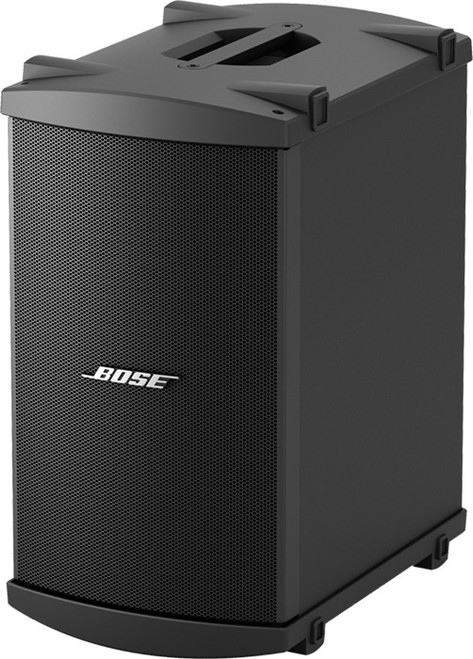

B2 Bass Module
- Performance, flexibility, and portability
- Two 10" (13.3 cm), high-output, high-excursion drivers
- Automatically sensed and equalized
- Interlocking end caps securely stack two or more modules together on their sides
- Specification
L1 Model 1S System System Type Self powered, two-way Frequency Response (+/-3 dB) 40 Hz - 12 kHz Frequency Range (-10 dB) 32 Hz - 14 kHz Nominal Dispersion 195° H x 10° V Maximum SPL @ 1 m 112 dB SPL (118 dB SPL peak) Crossover Frequency 200 Hz (24 dB / octave) Weight Top Array 23.7 lb (10.7 kg) Bottom Extension 8.5 lbs (3.8 kg) Power Stand 23.7 lbs (10.7 kg) Dimensions Top Array (H x W x D) 43.5" (111 cm) x 3.5" (9 cm) x 4" (10.5 cm) Bottom Extenstion (H x W x D) 39.63" (100.6 cm) x 4.15" (10.6 cm) x 4.13" (10.5 cm) Power Stand (H x W x D) 5" (12.8 cm) x 10" (26.2 cm) x 27" (69.2 cm) B2 Bass Module Impedance 4 Ohms Driver Two 10" (13.3 cm) Dimensions (H x W x D) 2.67" (6.76 cm) x 6.5" (16.6 cm) x 8.25" (20.9 cm) Weight 45 lbs (20.41 kg) Total System Weight 102.4 lbs (46.45 kg) - Documents
- In the Box
In the Box
- L1 Model 1S power stand and cord
- L1 Model 1S top array and bottom extension
- Loudspeaker carrying bag
- Power stand carry bag
- B2 bass module and cable
- B2 slip cover
