- Description
Details

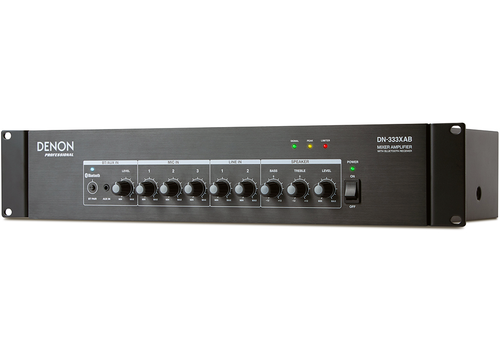

The Bluetooth enabled DN-333XAB forms the heart of a complete commercial audio system by mixing and amplifying wireless, microphone and line input sources. This rackmount mic/line mixer with integrated amplifier is ideal for the education, fitness, restaurant and hospitality markets. Perfect for driving in-ceiling or wall-mounted speaker systems, the DN-333XAB features 120 watts of built-in Class D amplification at ultra-low distortion for exceptional clarity. Dedicated mixing controls for three XLR+1/4-inch combination microphone inputs, two pairs of stereo line level RCA jack inputs, and a front-panel 1/8-inch (3.5mm) auxiliary input gives users the ability to create a seamless blend of audio from a plethora of source types. A front-panel Bluetooth pairing control with LED status indicator provides a fast and simple wireless connection to smartphones and tablets. A quick-responding limiter eliminates the negative audible effects of excessively high input signals from microphones or playback material.
The DN-333XAB output section offers detachable Euroblock 70V and 100V outputs with a 4-ohm transformer bypass output, as well as Chime, Alarm, and push-to-talk mic facilities. An RCA line-level send and return connector lets the installer integrate external audio processors, if desired. The compact 2RU unit fits neatly with other rack-mounted equipment for an integrated system appearance, or may sit on a shelf via the attached rubberized feet.
More than ever before, commercial installations require utmost flexibility without compromising sound quality or increasing complication. That's why Denon developed the DN-333XAB. It fuses comprehensive source mixing and simple, intuitive operation with professional amplification, in a compact and affordable package that works with virtually every mobile device imaginable.
*This product is available only in the U.S and Canada.
- Features
Features
- Audio mixer with Bluetooth receiver and 120W amplifier
- Accepts & mixes all common audio input types
- Independent volume controls for mic, line and Bluetooth inputs
- (3) XLR+1/4” combo mic inputs with selectable +15V phantom power
- (2) RCA line level stereo inputs; front panel 1/8” (3.5 mm) Aux input
- Built-in limiter automatically prevents erratic audio sources from clipping
- Front panel Bluetooth pairing control with LED status indicator
- Master level control with system Bass and Treble adjustments
- Euroblock connections for common, 4Ω transformer bypass, 70V, 100V, microphone PTT, Alarm and Chime outputs
- RCA line-level send-return connections
- Stereo RCA Aux outputs
- Space-saving 2RU design
- Specification
Inputs Mic In 3 XLR-TRS connector Line In 2 RCA connectors Aux In 1/8" TRS input Outputs Aux Out RCA connector Speaker Out Euroblock connector
4 Ω, 70V Line, 100V LineAlarm/Chime/MI1 Output Euroblock connector Frequency Response Line 60 Hz - 20 kHz (-3 dB) Mic 120 Hz - 20 kHz (-3 dB) S/N Ratio >90dB THD <0.1% Power Amplifier 120W (RMS) Class D Aux Output Level 0 dBV Bluetooth Version 3.0 Supported Profiles A2DP Maximum Transmission Power Class 3, +4 dBm Transmission Frequency 2.4 GHz Transmission Range Up to 100 feet / 30.5 meters Receiver Sensitivity < -70 dBm @ 0.1% BER Power Connection Standard IEC (switching power supply) Input Voltage 100-240V AC, 50/60Hz Dimensions (H x W x D) 3.75” (95 mm) x 19” (483 mm) x 8.25” (210 mm) Weight 12.85 lbs (5.8 kg) - Documents
