- Description
Details

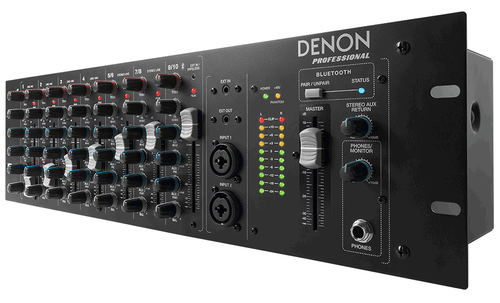

The Bluetooth®-enabled DN-410X 3RU rackmount mixer is ideal for event spaces, restaurants, night clubs and hospitality use. It enhances any audio system’s capabilities with premium sound quality, flexible signal routing and wireless streaming capability, letting you quickly play back virtually any audio source, including content from smartphones and tablets—ideal in this ‘Bring Your Own Device’ (BYOD) era.
The DN-410X provides you with a wealth of inputs to accommodate every popular type of audio device including A/V sources, microphones and instruments. Channels 1-4 each provide an XLR mic input with available +48v phantom power; a balanced 1/4" (6.3 mm) TRS line input, plus a TRS 1/4" insert jack for incorporating additional effects (optional). Channels 5-8 have been set as stereo pairs, offering 1/4" left and right inputs. Channels 7-8 also provide left and right RCA inputs.
You can stream a wireless stereo audio signal from any Bluetooth device to Channels 9-10 of the DN-410X. Single-button pairing makes connecting an audio source simple, so you can play music during breaks in the presentation, stream audio from a computer during a multimedia event, or even play a specific track from a smartphone to handle a special situation. The articulating Bluetooth antenna provides optimum reception while a dedicated volume control conveniently integrates additional audio sources at the touch of a button.
This is a mixer with a "flexibility-first" approach. With two front-panel XLR inputs, you can quickly adapt to performance changes on the fly without reaching behind their rack of A/V equipment. The DN-410X puts an end to snaking cables from front to back, reaching around to the back and blindly guessing at the input, or worst of all, un-mounting the mixer to get at the jacks you need.- Features
Features
- 4 XLR inputs; 2 in the front for convenience
- Pre-fader and post-fader aux sends; stereo aux return
- Dual multi-segmented LED meters and a Master output fader allow you to easily monitor and control your levels
- Convenient front panel jacks add versatility
- Space-saving 3U rackmount design is perfect for venues and mobile rigs
- Bluetooth streaming with simple single-button pairing
- 4 high-gain mic/line preamps with inserts
- 2-band high and low shelving EQ on every channel
- Specification
Inputs Channels 1-4 (Mono) Mic: XLR with switchable phantom power
Line: 1/4" Mono
Insert: 1/4" TRS
Front: XLR+1/4" combo jacks
Channels 1 and 2 only—overrides rear jacksChannels 5-6 (Stereo Pair) Line: 1/4" Left, Right Channels 7-8 (Stereo Pair) Line: 1/4" Left, Right
RCA: Left, RightChannels 9-10 (Stereo Pair) Bluetooth: Stereo Streaming In
Ext: 1/8" Stereo (front panel)
Aux Return: 1/4" TRS Balanced Left, RightOutputs Main: 1/4" TRS Balanced Left, Right
Monitor: 1/4" Left, Right
Aux Send 1: 1/4"
Aux Send 2: 1/4"
Headphones: Stereo 1/4"
Ext: 1/8" Stereo (front panel)Design 3U Rackmount chassis
Detachable power cableFrequency Response 20 Hz – 50 KHz, ±0.5 dB Dynamic Range 108 dB THD+N < 0.005% (Mic/Line Input to Main Out) Maximum Gain 70 dB (Mic Input to Main Out) Headroom 24 dB Bluetooth Version: 3.0
Maximum Transmission Power: Class 3, +4 dBm
Transmission Frequency: 2.4 GHz
Transmission Range: Up to 100 feet / 30.5 meters
Receiver Sensitivity: < -70 dBm @ 0.1% BER
Supported Profiles: A2DPPower Input Voltage 115 VAC, 60 Hz; 230 VAC, 50 Hz
Rear panel voltage selectorFuse 115 VAC, 60 Hz: T630 mAL 250 V
230 VAC, 50 Hz: T315 mAL 250 VDesign 3U Rackmount chassis
Detachable power cableDimensions (H x W x D) 5.25" (133 mm) x 19" (483 mm) x 6.25" (159 mm) Weight 8.9 lbs (4 kg) - Documents
Documents
- In The Box
In The Box
- DN-410X
- Power Cable
- User Guide
- Safety & Warranty Manual
