JBL Control 14C/T Compact 4" Ceiling Loudspeakers - Pair

JBL Control 14C/T Compact 4" Ceiling Loudspeakers - Pair

More Views

JBL Control 14C/T Compact 4" Ceiling Loudspeakers - Pair

Part # CONTROL 14C/T

Model # Control 14C/T-PAIR

The JBL Control 14C/T is designed to provide excellent sound quality for a wide variety of low to medium volume applications.

Availability:

*Color

* Required Fields

Pro Acoustics Price Price $234.00

Qty:

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

JBL Control 14C/T Compact 4" In-Ceiling Speakers

The speaker is designed to provide excellent sound quality for a wide variety of medium volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.

The 120° coverage delivers consistent sound quality for listeners located both off and on axis. The high technology 4" low frequency driver is designed with a lightweight, high temperature anodized aluminum voice coil former and high temperature grade voice coil for stable performance and reliability under long-term high power working conditions. The butyl rubber surround provides long term durability and excellent sonic damping while the polypropylene cone is water and humidity resistant. The FEA-optimized motor construction and cone geometry, along with linear suspension spider design, allows for a smooth frequency response and more consistent off-axis performance. The 0.75" high frequency driver features a highly damped treated silk dome for clear and warm sound, a lightweight Kapton™ voice coil for better high frequency response and excellent reliability, low viscosity liquid cooling for power handling and reliability, and a wide dispersion waveguide design to produce wide coverage and smooth frequency response.

The removable locking connector has screw terminals for secure wire termination and "loop through" terminals. A dual strain relief assembly provides clamping for use with cable or flex conduit.

Features

Features

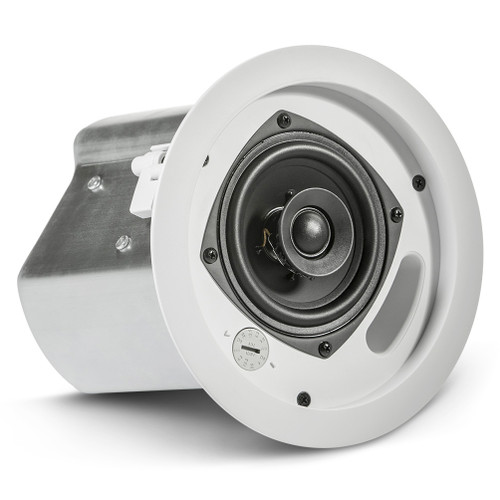

4" High output driver with polypropylene cone and butyl rubber surround
0.75" Soft-dome liquid-cooled tweeter
Blind-mount backcan for quick and easy install
Dual conduit/cable clamps
Combined 70V/100V and low impedance direct operation
30 Watts at 8Ω nominal setting
25 Watts multi-tap at 70V/100V
74 Hz – 20 kHz bandwidth with wide 120° coverage

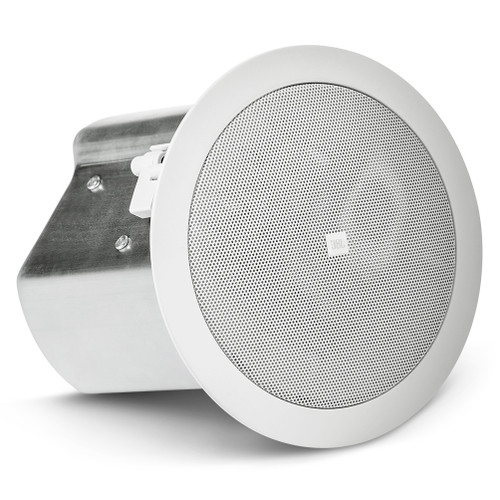

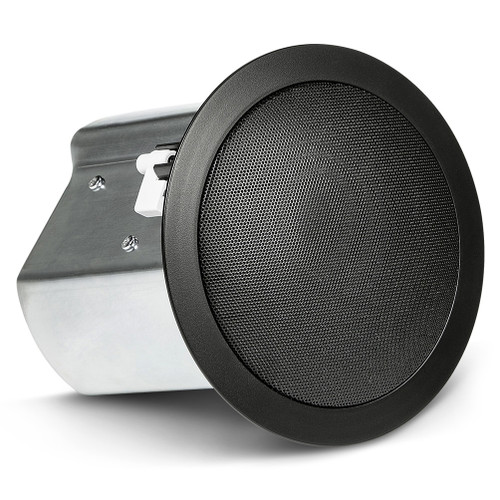

Available in colors white or black
Sold in pairs (all mounting hardware included)

Specification

Frequency Range (-10 dB)	74 Hz – 20 kHz
Power Capacity (at Low-Z)	60 Watts Continuous Program Power; 30 Watts Continuous Pink Noise
Transformer Taps	25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only)
Frequency Response (±3 dB)	100 Hz – 20 kHz
Nominal Sensitivity	87 dB
Nominal Coverage Angle	120° Conical Coverage
Directivity Factor (Q)	7.6
Directivity Index (DI)	8.1 dB
Rated Maximum SPL	102 dB @ 3.3 ft (1 m) Average, 108 dB Peak
Nominal Impedance	8 Ohms (In Direct/Bypass 8Ω Setting)
Crossover Network	12 dB/oct (2nd Order) Low-Pass to LF Driver,12 dB/oct (2nd Order) High-Pass to HF Driver
LF Driver	100 mm (4.0 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
HF Driver	19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide

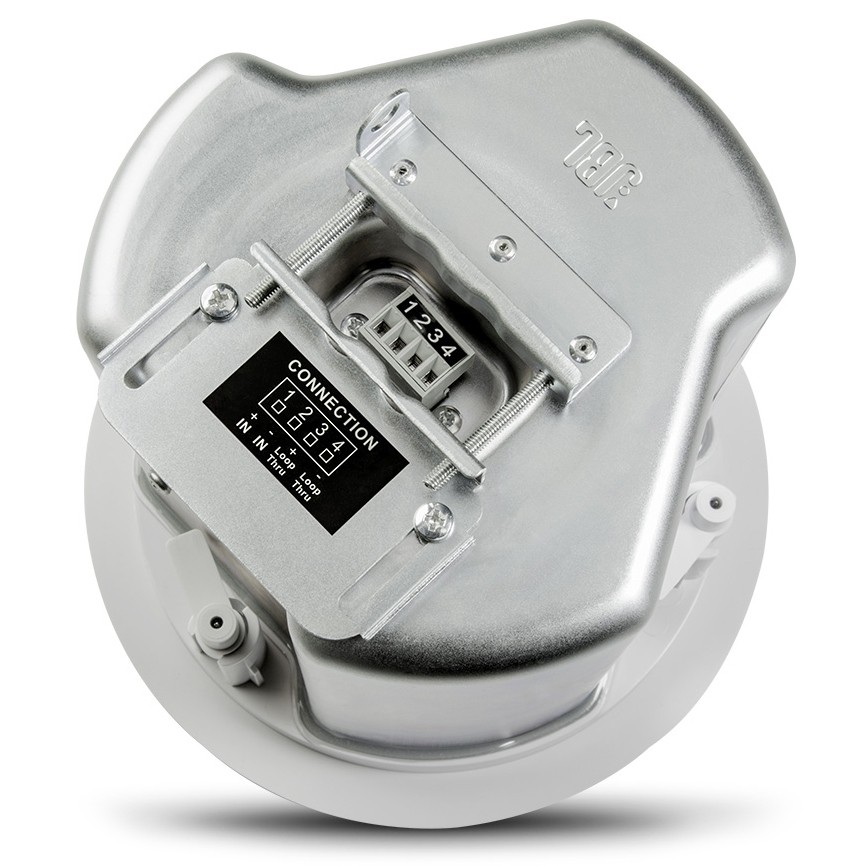

Input Connector	Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm)
Connector Wiring	Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain Reliefs	Strain Relief for 2 Cables or 2 Flex Conduits Via Coupled Clamping Mechanism
Materials	ABS Baffle with UL94-V0 and UL94-5VB Flame Class Fire Rating. Zinc-plated Steel Backcan
Safety Agency	UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Cutout Ceiling Size	Circular Cutout with 6.7" (170 mm) Diameter (Cardboard Cutout Template Included)
Ceiling Thickness Range	Up to 1.4" with Stock Dog-Ears. MTC-TCD Thick-Ceiling Dog-Ears Available Up to 2.2" Ceiling Thickness
Safety Seismic Attachment	One Point, Top Surface
Dimensions (Dia x D)	7.7" (196 mm) x 7.1" (181 mm)
Net Weight (ea)	4.8 lbs (2.2 kg)
Shipping Weight (pair)	17.9 lbs (8.2 kg)
