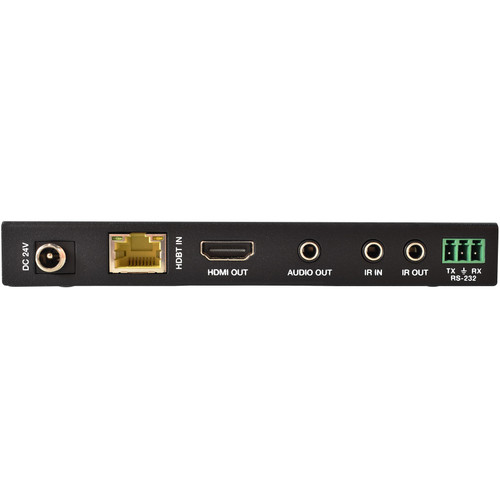

The ALF-SUK4T is an 18 Gbps HDMI 1x4 HDBaseT splitter kit that distributes a single HDMI source to four displays through HDBaseT outputs, with an additional local HDMI loop output. It supports video resolutions up to 4K @ 60 Hz 4:4:4 and transmits HDMI signals over a single CAT 6 or CAT 7 cable up to 328 ft (100 m) at 4K resolution or 492 ft (150 m) at 1080p. Four HDBaseT receivers are included for connecting remote displays.
The kit supports video downscaling, allowing a 4K input signal to be converted to 1080p output where required. Its local HDMI loop output can be used for monitoring or cascading additional splitters to distribute signals to more displays. Audio de-embedding and EDID management provide additional flexibility for integrating the system into professional AV installations.
For system control and integration, the ALF-SUK4T supports IR pass-through, RS-232 control, and IR and RS-232 cascade control. Its 24V Power over Cable (PoC) feature allows the included HDBaseT receivers to receive power from the splitter over the HDBaseT connection, helping simplify installation.
Most Alfatron products come with a 7-year limited warranty. Register your product with Alfatron to receive an additional 3-year extended warranty on eligible products, for 10 years of total coverage.
| HDMI Compliance | HDMI 2.0b |
|---|---|
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 594 MHz/18 Gbps |
| Video Resolution | Up to 4k2k @ 60 Hz 4:4:4 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p @ 60 Hz) 8-bit (4K2K @ 60 Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K @ 60 Hz YCbCr 4:2:2/4:2:0) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDR | Support HDR, HDR10+, HLG, Dolby vision |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| Coaxial Audio Formats | PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 |
| Analog Audio Formats | PCM 2.0 CH |
| ESD Protection | Human body model-±8 kV (Air-gap discharge) & ±4 kV (Contact discharge) |
| Input | 1x HDMI Type A (19-pin female) |
| Output | 1x HDMI Type A (19-pin female) 4x HDBaseT OUT [RJ45] 1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [5-pin phoenix connector] |
| Control | 1x RS-232 (3-pin phoenix connector) 1x EDID DIP switch [5-pin] 1x IR IN [3.5 mm Stereo Mini-jack] 1x IR OUT [3.5 mm Stereo Mini-jack] |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Power Supply | Input: AC100 - 240V 50/60 Hz, Output: DC 24V/2.7A |
| Power Consumption | 35W |
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 ~ 90% RH (non-condensing) |
| Certifications | US/EU standards, CE/FCC/UL certified |
| Dimensions (H x W x D) | Transmitter: 1.57" (40 mm) x 8.66" (220 mm) x 5.12" (130 mm) Receiver: 0.71" (18 mm) x 5.51" (140 mm) x 2.56" (65 mm) |
| Weight | Transmitter: 1.88 lbs (0.85 kg) Receiver: 0.54 lbs (0.24 kg) |
