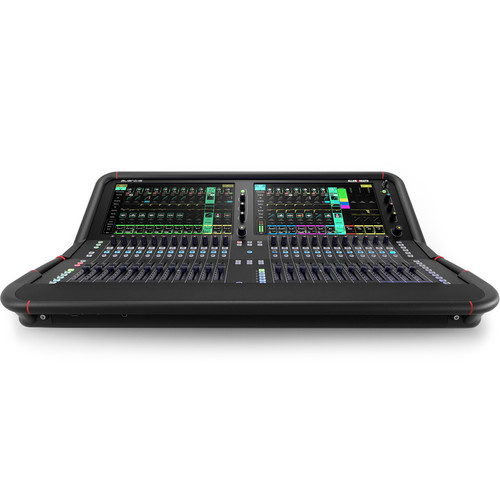

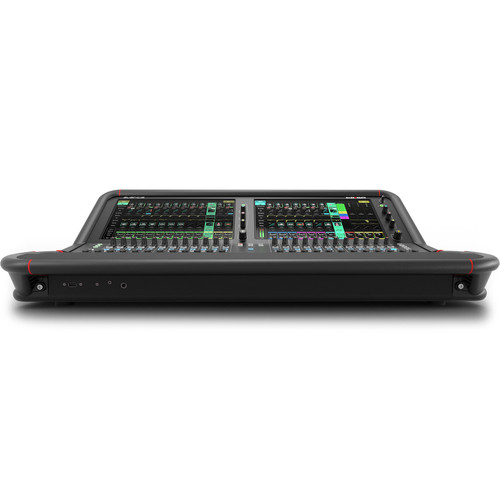

With a massive 206 square inches of screen space operating at a crisp 1080p Full HD resolution, Continuity UI allows you to see and instantly interact with more of what matters, enabling a seamless connection between the physical controls and the displays. The faders react on touch to immediately highlight the active channels for instant visual feedback. The channel rotaries let you work gains or pans, then at the touch of a button, dynamically fold the display to show EQ or compressor parameters across the whole bank. Each screen also features a FastGrab tab on the right-hand side, giving you split-second access to key freely-assignable parameters like aux sends, EQ, compressor and FX on the currently selected or specific channel. The whole system is set up to dynamically surface the information you need at any moment and put control right at your fingertips.
A Complete Ecosystem of Remote Expanders
Whether you're an owner/operator looking to build a compact system, or a rental company with existing Allen & Heath stock, the SLink connection on Avantis allows true flexibility by connecting to the entire range of Allen & Heath audio expander hardware. Add a Dante card to your system and you've got even more options, with our dedicated Dante expanders, DT168 and DT164-W.
Super-Strong and Built to Last
You've probably noticed that Avantis is not just another dull grey box mixer with plastic sides. Part-inspired by the tubular exo skeletons of the latest generation of superbikes, those sleek curves are all metal - super tough - but lightweight. Because every part of Avantis was designed in pursuit of performance and reliability, we subjected it to some of the most rigorous testing we've ever embarked upon. And it took it all.
12 Dedicated FX Rack Slots. With No Compromises
Trust us, these are not your usual built-in effects. Allen & Heath has a well-earned reputation for crafting FX emulations that rival the very best third party plug-ins, but with none of the associated hassle. With a passion bordering on obsession, we've created a suite of FX inspired by some of the most revered outboard equipment, including pristine reverbs, detailed delays, and wonderful classic modulation effects. Best of all, we offer our 12 FX slots with no compromises. Each effect takes up just one of the 12 slots, and each of the 12 FX slots has a dedicated stereo return - so you don't need to waste your input channels.
Dante. Waves. And So Much More.

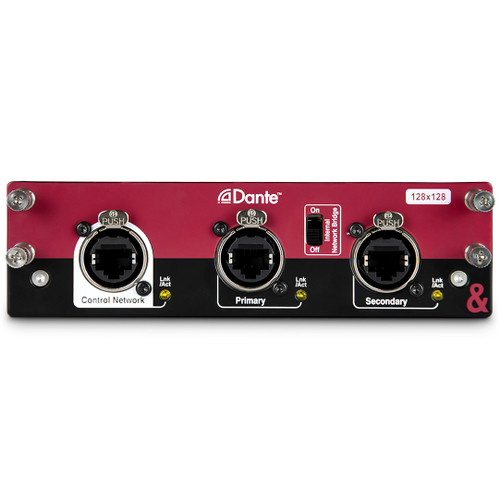

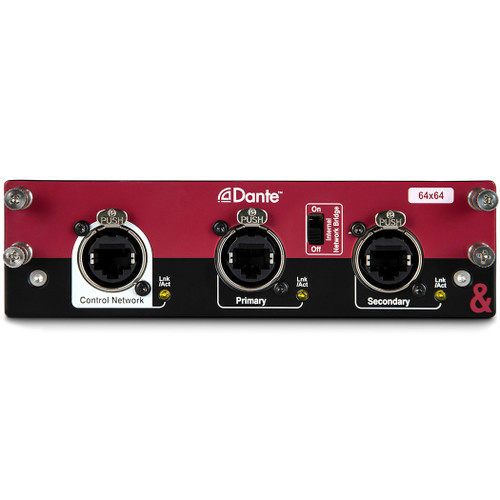

For local I/O, Avantis is well equipped with 12 XLR analog inputs, 12 XLR analog outputs, plus AES (Stereo In, 2x Stereo Out). Two additional I/O Ports allow Avantis to benefit from the full range of current dLive option cards, including Dante (64x64 and 128x128), Waves, gigaACE, MADI and more, expanding the scope for system integration, FoH / monitor splits and multitrack recording.
| Dimensions (H x W x D) | 10.6" (269 mm) x 36.1" (917 mm) x 24.7" (627 mm) |
|---|---|
| Weight | 57.4 lbs (26 kg) |
| Shipping Dimensions (H x W x D) | 16.7" (425 mm) x 43.3" (1100 mm) x 33.5" (850 mm) |
| Shipping Weight | 75 lbs (34 kg) |
