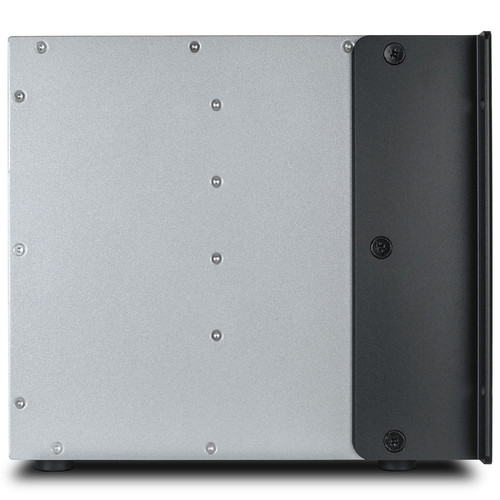

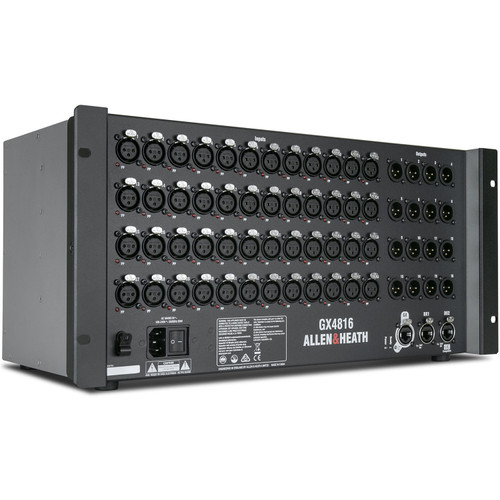

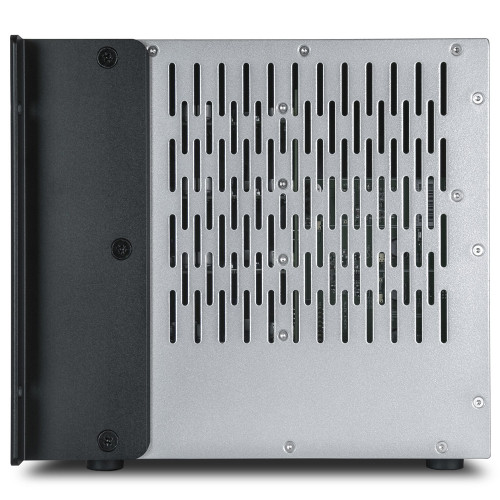

Allen & Heath GX4816 48 XLR Input / 16 XLR Output Portable GX Expander with DX Sockets
GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis and dLive* mixing systems.
Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket.
GX4816 connects via a single Cat5e cable to an SLink socket on a SQ or Avantis, or to a gigaACE audio network card on a dLive system.
Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.
*dLive compatibility due in Firmware V1.9
| Dimensions (H x W x D) | 9" (229.5 mm) x 10" (255 mm) x 18.9" (481.6 mm) |
|---|---|
| Weight | 17.6 lbs (8 kg) |
| Shipping Dimensions (H x W x D) | 12.2" (310 mm) x 15.2" (385 mm) x 22" (560 mm) |
| Shipping Weight | 22 lbs (10 kg) |
