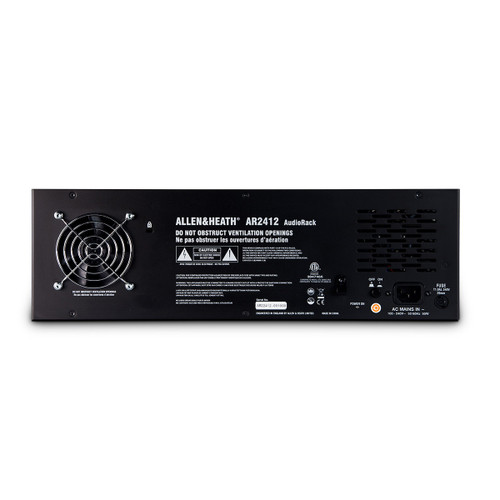

Allen & Heath AR2412 AudioRack dSNAKE I/O for Expansion
Write a Review
Allen & Heath AR2412 AudioRack dSNAKE I/O for Expansion
Part #:
AR2-2412-BLK
Model #:
AR2412
MSRP:
$2,399.00
$1,899.00
Availability:
Usually arrives in 5-9 business days.
Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio Expertise
FREE Custom System Design
Get Expert Help Fast
Description
The Allen & Heath AR2412 is an audio interface rack for the Allen & Heath GLD and Qu digital mixing systems. It provides 24 remote controlled mic/line preamps and 12 XLR line outputs. It connects to the mixer over a single Cat5 cable using the Allen & Heath dSNAKE protocol. An AR84 or AB168 AudioRack can be connected to the AR2412 to expand the number of system inputs and outputs. A dedicated Monitor port allows connection to Allen & Heath ME personal mixing system.
The AR2412 is simply an audio interface. It cannot be used by itself. It must connect to the GLD or Qu mixer which is where the audio is processed.
The AR2412 is not compatible with Allen & Heath iLive Series components or ACE connection.
Features
- 24 XLR Mic/Line input
- 12 XLR Line output
- Cat5 dSNAKE port to connect to GLD or Qu Mixers
- Monitor port - AviomTM compatible
- Port to connect an AR84 AudioRack Expander
Specifications
| Inputs | |
|---|---|
| XLR Mic/Line Inputs | Balanced, (All XLR on GLD-80 and AudioRacks) |
| Mic/Line Preamp, Input Sensitivity, Analogue Gain, Pad | Fully recallable, -60 to +15dBu, +5 to +60dB, ~1dB steps, -20dB |
| Maximum Input Level, Input Impedance | +32dBu, >4kΩ (Pad out), >10kΩ (Pad in) |
| Mic/Line Channel noise, Mic EIN | 20-20kHz, Direct Out @ unbalanced out, -127dB with 150Ω source |
| Unity gain (Pad in), Low gain (5dB, Pad out), Mid gain (30dB, Pad out) | -90dBu, -93dBu, -89dBu |
| Mic/Line Channel THD+N | 20-20kHz, Direct Out @ unbalanced out |
| Unity gain (Pad in) | 0.005% -86dBu @ 1kHz, 0dBu output |
| Low gain (5dB, Pad out) | 0.003% -89dBu @ 1kHz, 0dBu output |
| Mid gain (30dB, Pad out) | 0.004% -88dBu @ 1kHz, 0dBu output |
| RCA Line Inputs, Input Sensitivity, Trim | Unbalanced (GLD-80), -24 to +24dBu, nominal 0dBu, +/-24dB, recallable |
| Maximum Input Level, Input Impedance, RCA channel Noise | +18dBu, >10kΩ, -92dBu 20-20kHz |
| RCA channel THD+N | 0.0035% -90dBu @ 1kHz, 0dBu output |
| Outputs | |
| XLR Outputs, Output Impedance, Nominal Output | Balanced, Relay protected, |
| Maximum Output Level, Residual Output Noise | +22dBu, -91dBu (muted, 20-20kHz) |
| RCA Line Outputs, Output Impedance, Nominal Output | Balanced, Relay protected, |
| Maximum Output Level, Residual Output Noise | +18dBu, -94dBu (muted, 20-20kHz) |
| Digital Output | 48kHz sampling rate |
| SPDIF | RCA, 600mV, coax terminated input 75Ω |
| AES3 2 ch XLR output | XLR, 2.5Vpp balanced terminated 110 Ω |
| System | |
| Dynamic Range, System Signal to Noise | 112dB, -90dB |
| Frequency Response | 0/-0.25dB @ 20Hz, 0/-0.5dB @ 20kHz |
| System peak level THD+N | 0.0055% -68dBu @ +17dBu output, 1kHz |
| System Line level THD+ N | 0.0022%, -84dBu @ +9dBu output, 1kHz |
| Headroom, Internal operating Level | +18dB, 0dBu |
| dBFS Alignment | +18dBu = 0dBFS (+22dBu at XLR output) |
| Meter Calibration | 0dB meter = -18dBFS (+4dBu at XLR out) |
| Meter Peak indication | -3dBFS (+19dBu at XLR out) |
| Meter Type | Fast (peak) response |
| Sampling Rate, ADC, DAC | 48kHz +/-100PPM, 24-bit Delta-Sigma, 24-bit Delta-Sigma |
| Latency | 1.49 ms (GLD-80 local XLR in to XLR out) 0.68ms (GLD-80 local XLR in to digital out) |
| USB Playback, USB Record | 2 channel, WAV, MP3, M4A, FLAC, 2 channel, 44.1kHz / 16bit - WAV |
| I/O Port | 64 channel bi-directional |
| Card Options | A&H ACE, MADI, Dante, ES, Waves, MMO |
| Operating Temperature Range | 0 deg C to 35 deg C (32 deg F to 95 deg F) |
| Mains Power | 100-240V AC, 50/60Hz, 70W max |
| Dimensions (H x W x D) | 5.4" (137 mm) x 19" (483 mm) x 8.6" (220 mm) |
| Shipping Dimensions (H x W x D) | 9.8" (250 mm) x 23.6" (600 mm) x 13.7" (350 mm) |
| Weight | 11 lbs (5 kg) |
| Shipping Weight | 14 lbs (6.4 kg) |
