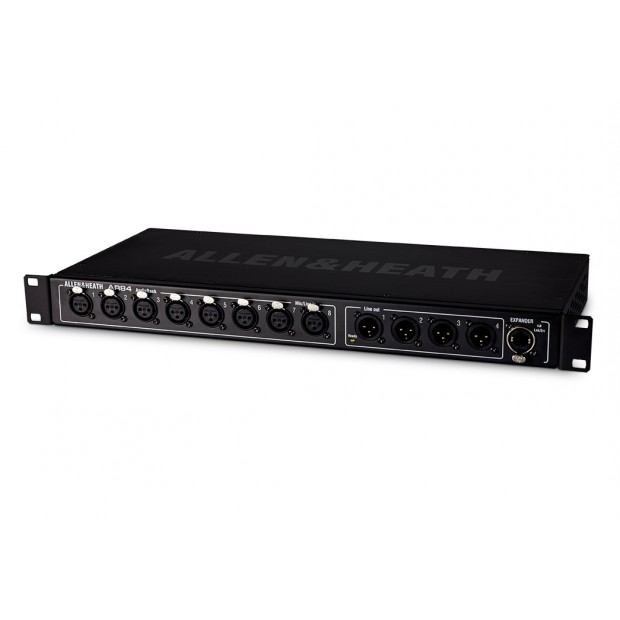

The Allen & Heath AR84 is an expander audio interface rack for the Allen & Heath GLD and Qu digital mixing systems. It provides 8 remote controlled mic/line preamps and 4 XLR line outputs. Up to two AR84 AudioRacks can be added to a GLD system. The AR84 can connect directly to the mixer or to the AR2412 AudioRack to expand the number of system inputs and outputs.
The AR84 is simply an audio interface. It cannot be used by itself. It must connect to the GLD or Qu mixer which is where the audio is processed.
The AR84 is not compatible with Allen & Heath iLive Series components or ACE connection
| Inputs | |
|---|---|
| XLR Mic/Line Inputs | Balanced, (All XLR on GLD-80 and AudioRacks) |
| Mic/Line Preamp, Input Sensitivity, Analogue Gain, Pad | Fully recallable, -60 to +15dBu, +5 to +60dB, ~1dB steps, -20dB |
| Maximum Input Level, Input Impedance | +32dBu, >4kΩ (Pad out), >10kΩ (Pad in) |
| Mic/Line Channel noise, Mic EIN | 20-20kHz, Direct Out @ unbalanced out, -127dB with 150Ω source |
| Unity gain (Pad in), Low gain (5dB, Pad out), Mid gain (30dB, Pad out) | -90dBu, -93dBu, -89dBu |
| Mic/Line Channel THD+N | 20-20kHz, Direct Out @ unbalanced out |
| Unity gain (Pad in) | 0.005% -86dBu @ 1kHz, 0dBu output |
| Low gain (5dB, Pad out) | 0.003% -89dBu @ 1kHz, 0dBu output |
| Mid gain (30dB, Pad out) | 0.004% -88dBu @ 1kHz, 0dBu output |
| RCA Line Inputs, Input Sensitivity, Trim | Unbalanced (GLD-80), -24 to +24dBu, nominal 0dBu, +/-24dB, recallable |
| Maximum Input Level, Input Impedance, RCA channel Noise | +18dBu, >10kΩ, -92dBu 20-20kHz |
| RCA channel THD+N | 0.0035% -90dBu @ 1kHz, 0dBu output |
| Outputs | |
| XLR Outputs, Output Impedance, Nominal Output | Balanced, Relay protected, |
| Maximum Output Level, Residual Output Noise | +22dBu, -91dBu (muted, 20-20kHz) |
| RCA Line Outputs, Output Impedance, Nominal Output | Balanced, Relay protected, |
| Maximum Output Level, Residual Output Noise | +18dBu, -94dBu (muted, 20-20kHz) |
| Digital Output | 48kHz sampling rate |
| SPDIF | RCA, 600mV, coax terminated input 75Ω |
| AES3 2 ch XLR output | XLR, 2.5Vpp balanced terminated 110 Ω |
| System | |
| Dynamic Range, System Signal to Noise | 112dB, -90dB |
| Frequency Response | 0/-0.25dB @ 20Hz, 0/-0.5dB @ 20kHz |
| System peak level THD+N | 0.0055% -68dBu @ +17dBu output, 1kHz |
| System Line level THD+ N | 0.0022%, -84dBu @ +9dBu output, 1kHz |
| Headroom, Internal operating Level | +18dB, 0dBu |
| dBFS Alignment | +18dBu = 0dBFS (+22dBu at XLR output) |
| Meter Calibration | 0dB meter = -18dBFS (+4dBu at XLR out) |
| Meter Peak indication | -3dBFS (+19dBu at XLR out) |
| Meter Type | Fast (peak) response |
| Sampling Rate, ADC, DAC | 48kHz +/-100PPM, 24-bit Delta-Sigma, 24-bit Delta-Sigma |
| Latency | 1.49ms (GLD-80 local XLR in to XLR out) 0.68ms (GLD-80 local XLR in to digital out) |
| USB Playback, USB Record | 2 channel, WAV, MP3, M4A, FLAC, 2 channel, 44.1kHz / 16bit - WAV |
| I/O Port | 64 channel bi-directional |
| Card Options | A&H ACE, MADI, Dante, ES, Waves, MMO |
| Operating Temperature Range | 0 deg C to 35 deg C (32 deg F to 95 deg F) |
| Mains Power | 100-240V AC, 50/60Hz, 20W max |
| Dimensions (H x W x D) | 1.9" (48 mm) x 19" (483 mm) x 8.6" (220 mm) |
| Shipping Dimensions (H x W x D) | 5.6" ( 143 mm) x 23.6" (600 mm) x 12.9" (330 mm) |
| Unpacked weight | 6.6 lbs (3 kg) |
| Packed weight | 9.7 lbs (4.4 kg) |
