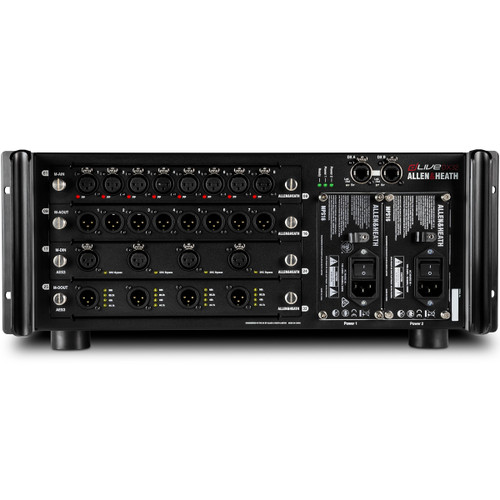

Allen & Heath dLive DX32 96kHz Modular Expander
The DX32 is a fully modular expander for adding extra inputs and outputs to a dLive system. Each DX32 features 4 slots for 8 channels of high end, low noise microphone preamps, 8 analog outputs, 8 AES/EBU (32-192kHz sample rate, stereo) digital inputs & 8 AES/EBU (44.1, 48, 88.2, 96kHz switchable per output) digital outputs. The DX32 has slots for 1 or 2 hot-swappable redundant power supplies. A unique auto firmware matching feature keeps the DX32 in sync with the rest of the dLive system.
The DX32 Expander adds remote, modular I/O to a dLive, Avantis or SQ system. It provides 4x 8 channel slots to fit a selection of analog or digital I/O.
The DX32 connects via a single Cat5e cable to the dLive Surface, MixRack, SQ SLink port, Avantis SLink port or DX Hub via a secure etherCON port. Two cables can be used for redundant connection to compatible dLive hardware.
With dLive
Up to 2 DX32 Expanders can be connected directly to a dLive MixRack, and a further DX32 can be connected to the Surface. More units can be added to a dLive system via a DX Link card or DX Hub.
With Avantis
A single DX32 can connect directly to an Avantis SLink port. Up to 8 DX32s can be added to an Avantis system via DX Hub and/or DX Link cards.
With SQ
A single DX32 can connect directly to an SQ SLink port. Up to 4 units can be added to an SQ system via a DX Hub.
| Inputs | |
|---|---|
| Mic/Line XLR Inputs | Balanced XLR, +48V phantom power |
| Mic/Line Preamp | Fully recallable |
| Input Sensitivity | -60 to +15dBu |
| Analog Gain | +5 to +60dB, 1dB steps |
| Pad | -20dB Active PAD |
| Maximum Input Level | +30dBu (PAD in) |
| Input Impedance | >4kΩ (Pad out), >10kΩ (Pad in) |
| Mic EIN | -127dB with 150Ω source |
| Phantom Power Indication | Per socket, internal or external phantom power sensing, triggered at 24V |
| Digital Inputs | AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω SRC on each pair, range 32k - 192kHz, with bypass option |
| Outputs | |
| Analog XLR Outputs | Balanced, Relay protected |
| Output Impedance | |
| Nominal Output | +4dBu = 0dB meter reading |
| Maximum Output Level | +22dBu |
| Residual Output Noise | -92dBu (muted, 20-20kHz) -90dBu (muted, 20-40kHz) |
| Digital Outputs | AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω 96kHz sampling rate, switchable to 48kHz, 44.1kHz |
| System | |
| Sampling Rate | ADC: 24-bit Delta-Sigma DAC: 24-bit Delta-Sigma |
| Latency | + 8 samples, DX32 to Mixrack or DX32 to Surface (DX hop) |
| System Latency | 0.7 ms (MixRack XLR in to XLR out, Input to Mix) + 5 samples, Surface to Mixrack (GigaACE hop) |
| Operating Temperature Range | 0 deg C to 35 deg C (32 deg F to 95 deg F) |
| Power | |
| Mains Voltage Operating Range | 100-240V AC, 50/60Hz |
| Mains Power Consumption | 300W max (MPS16 V1 300W) 250W max (MPS16 V2 250W) MPS16 power consumption is printed under AC inlet |
| Temperature | |
| Operating Temperature Range Fitted with | MPS16 V1 300W: 0°C to 35°C (32°F to 95°F) MPS16 V2 250W: 0°C to 40°C (32°F to 104°F) |
| Dimensions (H x W x D) | 6.97" (177 mm) x 17.05" (433 mm) x 11.42" (290 mm) |
| Weight | 23 lbs (10.5 kg) |
