Allen & Heath DX012 12 XLR Output Analog/AES Portable DX Expander

By Allen & Heath

Allen & Heath DX012 12 XLR Output Analog/AES Portable DX Expander

Name: Allen & Heath DX012 12 XLR Output Analog/AES Portable DX Expander
Brand: Allen & Heath
SKU: AH-DX012
Price: 1599 USD
Availability: InStock

Write a Review

Part #:

DX012

Model #:

DX012

Current Stock:

MSRP: $1,999.00

$1,599.00

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

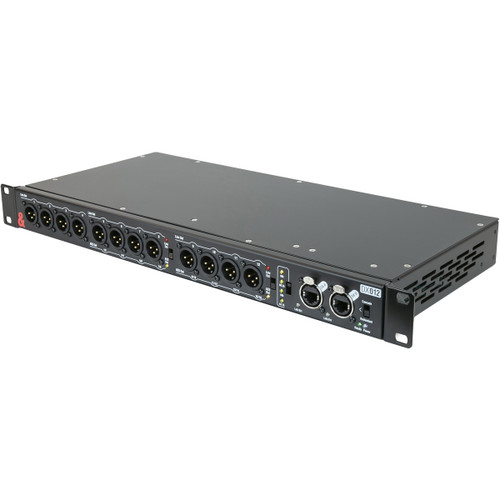

The Allen & Heath DX012 provides remote output expansion for SQ, Avantis and dLive. Perfect for feeding IEM systems and amplifier racks, the DX012 offers both analog and AES digital output options in a compact 1U form factor.

Description

Allen & Heath DX012 12 XLR Output Analog/AES Portable DX Expander

Need to get more out of your system? DX012 provides remote output expansion for SQ, Avantis and dLive.

Perfect for feeding IEM systems and amplifier racks, DX012 offers both analog and AES digital output options in a compact 1U form factor.

The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, Avantis mixer, SQ mixer or upstream DX expander via a secure EtherCon port.

A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX expander for additional remote I/O.

Features

Compatible with SQ, Avantis and dLive systems
12 XLR Outputs:

1-4 Analogue Line Out
5-8 Analogue Line out or AES Digital out (switchable)
9-12 Analogue Line out or AES Digital out (switchable)

AES outputs globally switchable between:

44.1kHz
48kHz
88.2kHz
96kHz

Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port
Redundant DX connection to compatible hardware
Multiple DX012 can be added to a system:

Up to 16 DX012 units can be added to a SQ system
Up to 16 DX012 units can be added to an Avantis system
Up to 46 DX012 units can be added to a dLive S Class system
Up to 22 DX012 units can be added to a dLive C Class system

Rack-mounted (1U) or shelf/floor operation
Plug and Play – no IP addressing required
Compatible with CAT5e (or higher) cables of up to 100m
Locking EtherCon ports

Specifications

Power
Digital Outputs	AES3 2 Ch XLR, 2.5V balanced, terminated 110Ω
Sample Rate	44.1kHz, 48kHz, 88.2kHz, 96kHz
Analog XLR Outputs	Balanced, Relay protected
Output Impedance
Nominal Output	+4dBu = 0dB meter reading
Maximum Output Level	+22dBu
Residual Output Noise	-95dBu (22Hz-22kHz)
THD+N	-98dB (0dBu, 1kHz)
Operating Temperature Range	32°F to 104°F (0°C to 40°C)
Mains Voltage Operating Range	100-240V AC, 50/60Hz
Mains Power Consumption	35W max
Dimensions (H x W x D)	1.9" (48.2 mm) x 19" (482.6 mm) x 8.5" (214.7 mm)
Shipping Weight	9 lbs (4.1 kg)
