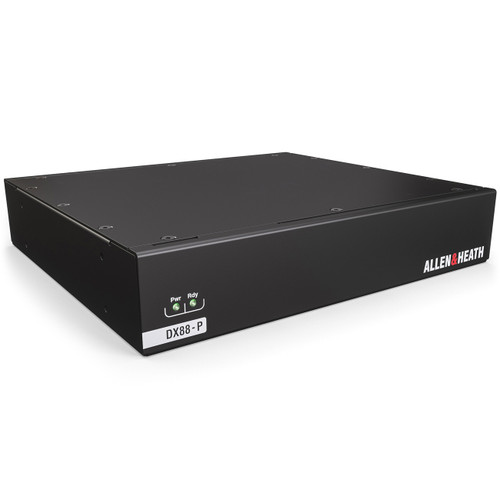

The DX88 is a 96kHz DX expander enabling convenient placement of 8 mic/line inputs and 8 line outputs – via standard Phoenix / Euroblock connectors – wherever you need to get additional analog audio in and out of a fixed install.
The DX88-P can be placed up to 100m away from the mixer for maximum flexibility of positioning. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via the DX A port. A second RJ45 port, DX B, is provided for daisy-chaining to a downstream DX Expander for additional remote I/O.
Rack Mount Kit
An optional rack mount kit is available for installation of up to two DX88-P units in a 1U 19″ slot to interface with analog equipment such as an AV switcher.
The DX88-P can also be rack mounted alongside a DX Hub or GPIO module by combining the optional rack kit with the DX Hub / GPIO rack kit.
| Inputs | |
|---|---|
| Mic/Line XLR Inputs | Balanced Phoenix, +48V phantom power |
| Mic/Line Preamp | Fully recallable |
| Input Sensitivity | -60 to +15dBu |
| Analog Gain | +5 to +60dB, 1dB steps |
| Pad | -20dB Active PAD |
| Maximum Input Level | +30dBu (PAD in) |
| Input Impedance | >4kΩ (Pad out), >10kΩ (Pad in) |
| Mic EIN | -127dB with 150Ω source |
| Sample Rate | 96kHz |
| Outputs | |
| Output Impedance | |
| Nominal Output | +4dBu = 0dB meter reading |
| Maximum Output Level | +21dBu |
| Residual Output Noise | -92dBu (muted, 20-20kHz) -90dBu (muted, 20-40kHz) |
| System | |
| Operating Temperature Range | 0 deg C to 40 deg C (32 deg F to 104 deg F) |
| Power | 12V DC via external PSU, 3.3A max, 39.6W max |
| Dimensions (H x W x D) | 1.69" (42.8 mm) x 8.52" (216.5 mm) x 7.69" (195.4 mm) |
| Weight | 3.33 lbs (1.51 kg) |
