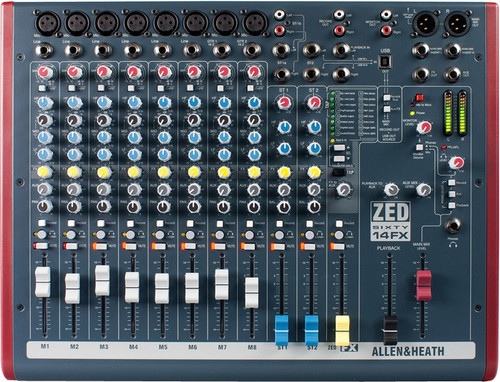

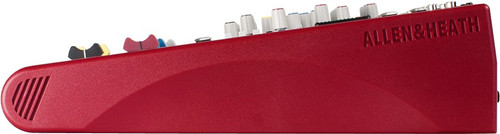

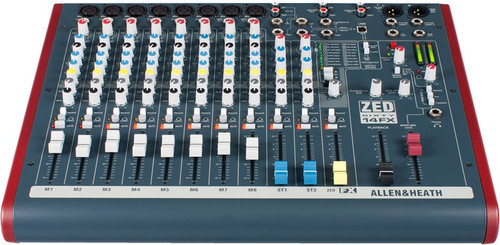

Live or in the studio, the Allen & Heath ZED60-14FX Multipurpose Mixer is a compact, portable mixer that is ideal for small bands. This mixer is a guitarist’s dream. Two of the 8 mono channels have high impedance jack inputs that can take a normal line level or a low level input from a guitar pickup, so guitars can be plugged straight into the mixer without the need for DI boxes. These inputs have been crafted to recreate the sound of a classic tube preamp in a combo or head amp for incredible definition and warmth. Two stereo inputs are provided for MP3/CD players or keyboards.
ZED60-14FX comes with configurable USB audio in/out, making it easy to capture a stereo recording at the gig or in the studio. The mixer is equipped with professional XLR main stereo outputs, a flexible monitoring section with headphone and speaker feed outputs, and 16 stunning FX. Most important of all, ZED60-14FX lives up to the audio and build quality standards that have made Allen & Heath one of the most trusted names in professional audio for more than 40 years.
| Mono channel (XLR) Input | -10 to –60dBu for nominal (+11dBu in max) |
|---|---|
| Mono channel Line Input (Jack socket) | +10 to –40dBu (+31dBu maximum) |
| Stereo Input (Jack or phono sockets) | 0dBu nominal (control = Off to +15dB) |
| L/R Outputs ( XLR) Normal/DI out | 0dBu/-30dBu +21dBu/-9dBu maximum |
| Aux & FX Outputs (Jack sockets) | 0dBu nominal. +21dBu maximum |
| Record & Monitor Outputs (phono sockets) | 0dBu nominal. +21dBu maximum |
| Mic in to Mix L/R Out, 30dB gain | +0.5/-1dB 10Hz to 30kHz |
| Line in to Mix L/R out 0dB gain | +0.5/-1dB 10Hz to 25kHz |
| Stereo in to Mix L/R out | +0.5/-1dB 10Hz to 30kHz |
| Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out | 0.002% |
| Mic in to Mix L/R Out, 30dB gain 1kHz | 0.01% |
| Line in to Mix L/R out 0dB gain 0dBu 1kHz | 0.003% |
| Stereo in to Mix L/R out 0dB gain +10dBu 1kHz | 0.002% |
| Gtr Input to Mix L/R Out, 0dBu, Boost OUT | 0.015% |
| Gtr Input to Mix L/R Out, 0dBu, Boost IN | 2% Second Harmonic |
| Analogue Headroom from nominal (0Vu) | 21dB |
| USB in & out headroom from nominal (0Vu) | 14dB |
| Mic Pre EIN @ max gain 150R input Z 22-22kHz | -127dBu |
| Mix L/R out, L/R faders = 0, Levels min, 22-22kHz | -93dBu |
| USB Audio In/Out | USB 1.1 compliant 16bit |
| Sample Rate | 32, 44.1, or 48kHz |
| Dimensions (H x W x D) | 17.3" (440 mm) x 3.7" (95 mm) x 13.6" (346 mm) |
| Weight Unpacked | 13.6 lbs (6.2kg) |
| Weight packed | 15 lbs (6.8kg) |
