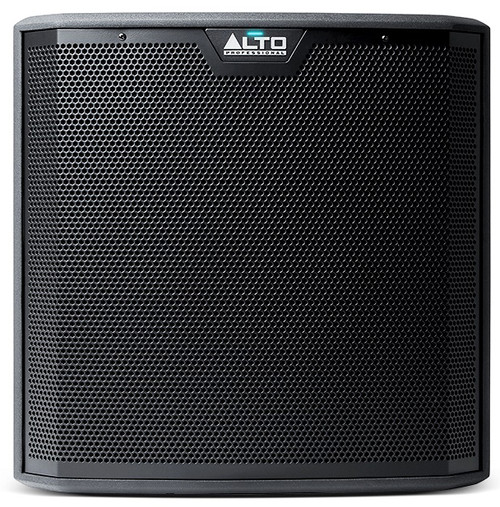

Alto TRUESONIC 2 TS212S 1250W 12" Powered Subwoofer (Discontinued)

Description

For those performance situations where additional low-frequency output and punch are required, even beyond the already-impressive bass capability of the TS2 full-range speakers, the new TS2 powered subwoofers are the perfect solution.

Pair TS212S with any full-range speaker system to extend the bass response and dramatically enhance the overall impact of the music being played.

Features

• 1250 watts of peak power output
• Custom engineered high-efficiency Class D amplifiers with passive cooling design – no fan means the speaker runs cleaner, quieter and has greater long-term reliability
• 12-inch high-excursion woofer
• (2) XLR+1/4-inch combo inputs + (2) balanced XLR line outputs
• Polarity Reverse, Full-Range Output and Extended LF controls
• Electronic clip, thermal and transducer overdrive protection
• Rugged, internally-braced front-ported plywood cabinet
• Integrated 35mm speaker pole socket

Specifications

Output Power	1250W Peak, 625W Continuous
Transducer Low	12" (305 mm) Woofer, 3" (76 mm) Voice Coil
Frequency Response	42–100 Hz (-10 dB)
Connections	(2) XLR+1/4" (6.35 mm) Inputs; (2) XLR Outputs; (1) IEC Power Cable Input
Input Level	Line +4 dBu (Nominal)
External Controls	Volume Control, Signal/Clip Limiter with LED, Polarity-Reverse Switch, High-Pass Filter Bypass Switch with LED, Extended Low-Frequency Switch with LED, Power Switch with LED
Electronic Protections	Electronic Clip, Thermal and Transducer Overdrive Protection
Enclosure	Internally Braced Plywood Cabinet; 35 mm Mounting Pole Socket on Top Panel
Power	Connection: Standard IEC Cable Input Voltage: 110–120, 220–240 VAC; 50/60 Hz Consumption: 450W Fuse: T6.3AL AC250V (110–120 V) or T3.15AL AC250V (220–240 V)
Dimensions (H x W x D)	20" (508 mm) x 18" (456 mm) x 17.75" (451 mm)
Weight	45 lbs (20 kg)

DOCUMENTS

In The Box

• (1) TS212S 12'' Powered Subwoofer
• (1) Power Cable
• User Guide
• Safety & Warranty Manual
