Athletic Field Sound System with 2 JBL AWC82 Weatherproof Speakers, 240W Bluetooth Mixer Amplifier and Microphone

Part #:
STSS-2AWC82RMA240BT
Model #:
STSS-2AWC82RMA240BT
Availability: Some Components are Backordered - Contact Us for Comparable Solutions Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

Deliver clear, intelligible play-by-play announcements and paging throughout your athletic facility with this JBL outdoor PA sound system. Featuring two IP56-rated JBL AWC82 8" all-weather speakers, a Pure Resonance Audio RMA240BT 240W Bluetooth mixer amplifier, and a UC1S handheld microphone with desktop stand, this 70V system provides wide 120° x 120° sound coverage for Little League, baseball and softball fields, school stadiums, sports complexes, and multi-sport parks. Bluetooth also allows convenient music playback between announcements.

System Highlights:
- Budget: Under $2,500
- Crowd Size: Small | Medium | Large
- Music Quality: Good | Better | Best
- Wired Handheld Mic &
   Bluetooth Mixer Amplifier

Description

Inside the Design

Make every game-day announcement clear and easy to hear with this JBL athletic field PA sound system. Designed for Little League baseball and softball fields, school stadiums, sports complexes, multi-sport parks, football and soccer fields, and other outdoor athletic facilities, this complete 70V system provides a dependable solution for play-by-play commentary, player introductions, paging, and spectator announcements. Featuring two JBL AWC82 8" all-weather loudspeakers, a Pure Resonance Audio RMA240BT 240W Bluetooth mixer amplifier, and a UC1S handheld microphone with an adjustable AtlasIED desktop stand, this system prioritizes excellent speech intelligibility, wide sound coverage, and straightforward operation. Built-in Bluetooth also allows convenient music playback before games, during breaks, and between announcements.

The two JBL AWC82 weatherproof loudspeakers feature a high-efficiency coaxial design with consistent 120° x 120° coverage to help distribute clear, intelligible speech throughout designated athletic fields and spectator areas. Their IP56-rated construction provides reliable weather resistance for outdoor installations, while the RMA240BT amplifier and microphone can be conveniently operated from a protected press box, scoring station, or equipment room. For this 240W amplifier system, we recommend setting both JBL speakers to 100W at 70V, creating a combined 200W speaker load with 40W of rated amplifier capacity remaining. For smaller or quieter locations, both speakers can alternatively be set to 50W each for a combined 100W load. The JBL AWC82 speakers are also available in black, please contact us if you would prefer the black finish for this system.

Key System Features

  • Complete 70V athletic field PA sound system designed for play-by-play commentary, paging, player announcements, and game-day communication
  • Ideal for Little League baseball and softball fields, school stadiums, football and soccer fields, sports complexes, and multi-sport parks
  • Two JBL AWC82 8" all-weather coaxial loudspeakers provide exceptional speech intelligibility with wide 120° x 120° coverage
  • Highly weather-resistant IP56-rated speakers feature durable enclosures, corrosion-resistant grilles, and protective terminal covers for outdoor installations
  • Selectable 70V transformer taps allow flexible output levels, with both speakers recommended at 100W each for a combined 200W load on the 240W amplifier
  • Pure Resonance Audio RMA240BT 240W Class D mixer amplifier features Bluetooth streaming, USB and TF card playback, an FM tuner, and multiple audio inputs
  • Pure Resonance Audio UC1S handheld microphone with a quiet On/Off switch provides clear vocal reproduction for paging and live announcements
  • AtlasIED DS7E adjustable-height desktop microphone stand provides stable, convenient positioning for announcers at press boxes and scoring stations
  • Includes microphone connection cables and 100 feet of AQ227 12/2 Aquaseal direct burial speaker wire for outdoor installation

About the System Components

JBL AWC82 8" All-Weather 2-Way Coaxial Loudspeakers

The two JBL AWC82 all-weather loudspeakers are engineered to deliver outstanding vocal clarity and consistent sound coverage in demanding outdoor environments. Featuring an 8" Kevlar-reinforced woofer and 1" compression driver, each speaker provides intelligible speech reproduction with smooth, natural midrange performance and a wide 120° horizontal by 120° vertical coverage pattern. This makes the AWC82 an excellent choice for play-by-play commentary, athletic field announcements, paging, and occasional music playback at stadiums, sports facilities, racetracks, fairgrounds, rodeos, skating rinks, water parks, and other outdoor venues. The IP56-rated enclosure, corrosion-resistant steel grille, and included U-bracket provide reliable outdoor performance when properly installed with a minimum 5° downward aiming angle. Each speaker features selectable 70V/100V transformer taps, with 100W at 70V recommended for this system. The AWC82 is available in gray or black, so customers interested in the black finish can contact us to request that option.

Pure Resonance Audio RMA240BT 240W Bluetooth Rack-Mount Mixer Amplifier

The Pure Resonance Audio RMA240BT 5-channel commercial mixer amplifier delivers 240 watts of efficient Class D power for athletic field paging, public address announcements, and distributed audio applications. Its compact 1U rack-mount design makes it ideal for protected press boxes, equipment rooms, and announcer stations where centralized audio control is needed. Featuring Bluetooth streaming, USB and TF card playback, an FM tuner, and multiple microphone and auxiliary inputs, the RMA240BT allows operators to make live announcements and play pre-recorded messages or music between games. Individual input level controls, bass and treble adjustments, and master volume control provide convenient sound management, while the included IR remote operates the built-in media player. Forced-air cooling and built-in protection circuitry support dependable performance during extended use. The amplifier must be installed in a dry, protected location with adequate ventilation.

Due to the possibility of FM radio interference and the variables involved, FM radio is not recommended as the primary audio source.

Pure Resonance Audio UC1S Handheld Microphone and AtlasIED DS7E Desktop Stand

The Pure Resonance Audio UC1S Ultra-Clear dynamic handheld microphone provides clear, intelligible vocal reproduction for play-by-play commentary, player introductions, paging, and other game-day announcements. Its unidirectional cardioid pickup pattern helps isolate the announcer's voice while reducing unwanted background noise, and its rugged construction, built-in pop filter, and quiet On/Off switch provide dependable everyday operation. The included AtlasIED DS7E adjustable-height desktop microphone stand features a stable cast iron base and convenient 8" to 13" height adjustment for comfortable positioning at press boxes and scoring stations. A 15 ft XLR microphone cable and 3 ft XLRF-3-PREP patch cable provide the necessary connection to the mixer amplifier.

Installation Note: JBL recommends a 45 Hz high-pass filter with a 24 dB/octave slope when operating the AWC82 at its 100W transformer tap. The recommended filtering should be evaluated for the intended installation, particularly when operating at high sound levels.

Features

JBL AWC82 All-Weather 8" 2-Way Loudspeakers

  • Highly weather-resistant IP56-rated construction with reinforced enclosures and corrosion-resistant grilles provides dependable outdoor performance
  • High-efficiency 8" Kevlar-reinforced woofer and 1" compression driver deliver exceptional speech intelligibility for live announcements and paging
  • Consistent 120° x 120° coverage provides wide sound dispersion for athletic fields, stadiums, sports complexes, and spectator areas
  • 80 Hz - 20 kHz frequency range and 94 dB sensitivity (2.83V/1m) provide clear, efficient speech and music reproduction
  • 250W average continuous power handling with high sensitivity supports clear, high-output public address applications
  • Built-in 70V/100V multi-tap transformer with 8Ω bypass provides flexible installation options, with 100W at 70V recommended per speaker for a combined 200W load
  • Includes heavy-duty U-brackets and protective terminal covers for secure outdoor installation with a minimum 5° downward tilt for IP56 weather resistance
  • Available in gray or black finishes; contact us to request the black version for your athletic field sound system

Pure Resonance Audio RMA240BT 5-Channel 240W Bluetooth Rack-Mount Mixer Amplifier

  • Compact 1U rack-mount design delivers 240W of high-efficiency Class D power for athletic field paging and public address applications
  • Supports 70V and 4-16Ω speaker outputs for flexible installation with compatible commercial loudspeaker systems
  • Built-in Bluetooth streaming, USB and TF card MP3 playback, and FM tuner with an included IR remote control
  • Multiple microphone and auxiliary inputs accommodate handheld microphones, external media players, and other audio sources
  • Individual input level controls, bass and treble adjustments, and master volume control provide convenient sound management
  • Dedicated Emergency (EMC) priority input overrides other audio sources when connected to compatible external priority equipment
  • Variable-speed forced-air cooling with side-entry airflow helps maintain reliable performance during extended operation
  • Built-in short-circuit and overheating protection helps ensure dependable performance in demanding commercial environments

Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch

  • Professional dynamic handheld microphone delivers clear speech reproduction for play-by-play commentary, announcements, and public address applications
  • Unidirectional cardioid pickup pattern focuses on the announcer's voice while helping reduce unwanted background noise
  • 50 Hz - 16 kHz frequency response with enhanced midrange presence provides natural, intelligible vocal reproduction
  • Rugged construction with a heavy-duty housing and ultra-quiet On/Off switch provides reliable everyday microphone operation
  • Built-in wind and breath pop filter helps minimize unwanted noise during speech and vocal applications
  • Includes a durable microphone clip for convenient mounting on the supplied adjustable-height desktop microphone stand

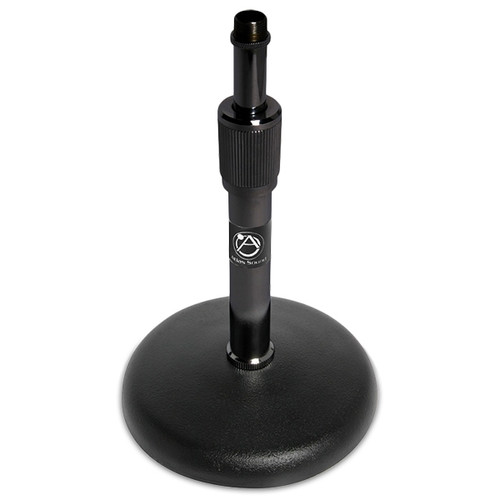

AtlasIED DS7E Adjustable-Height Desktop Microphone Stand

  • Adjustable 8" to 13" height provides convenient microphone positioning for announcers at press boxes and scoring stations
  • Heavy-duty cast iron base provides excellent stability during announcements, commentary, and everyday microphone use
  • Grip-action clutch allows quick and secure height adjustments for comfortable microphone positioning
  • Non-reflective ebony finish provides a professional appearance for commercial and athletic facility installations

System Includes

  • (2) JBL AWC82 All-Weather 8" 2-Way Loudspeakers
    • (2) Heavy-Duty U-Brackets
    • (2) Protective Terminal Compartment Covers
    • (2) Cable Glands
  • (1) Pure Resonance Audio RMA240BT 5-Channel 240W Bluetooth Rack-Mount Mixer Amplifier
    • (1) IR Remote Control
    • (1) Power Cord
  • (1) Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch
    • (1) Microphone Clip
  • (1) AtlasIED DS7E Adjustable-Height Desktop Microphone Stand

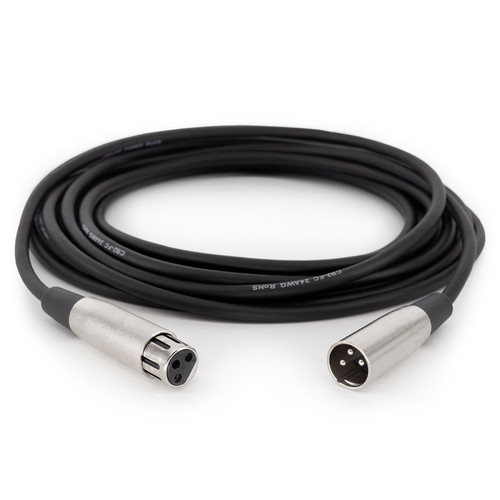

  • (1) Pure Resonance Audio XLR-15 Microphone Cable - 15 ft

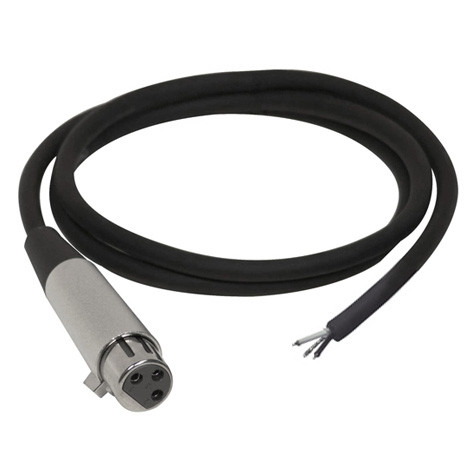

  • (1) Pure Resonance Audio XLRF-3-PREP Female XLR to Prepped Wire Patch Cable - 3 ft
  • (100') West Penn AQ227 12/2 Aquaseal Direct Burial Speaker Wire - Black
