Small Athletic Field Sound System with 2 JBL All-Weather Compact Loudspeakers and GreenEdge Mixer Amplifier and Wired Microphone

Part #:
STSS-2AWC82CSMA2120
Model #:
STSS-2AWC82CSMA2120
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

This small athletic field sound system features two JBL AWC82 8" all-weather loudspeakers, a JBL CSMA 2120 GreenEdge mixer amplifier, and a Pure Resonance Audio UC1S wired microphone for clear play-by-play announcements, paging, and music. Ideal for little league baseball fields, softball fields, school athletic facilities, and multi-sport parks, the system includes a desktop microphone stand and installation cables.

System Highlights:
- Budget: Under $3,000
- Crowd Size: Small | Medium | Large
- Music Quality: Good | Better | Best
- Includes: Wired Handheld Mic &
  GreenEdge Mixer Amplifier



Description

Inside the Design

This small athletic field sound system is designed for little league baseball fields, softball fields, school athletic facilities, and multi-sport parks requiring dependable speech reinforcement and music playback. Featuring two JBL AWC82 8" all-weather compact loudspeakers, a JBL CSMA 2120 GreenEdge commercial mixer amplifier, a Pure Resonance Audio UC1S wired handheld microphone, and an AtlasIED DS7E adjustable desktop microphone stand, this outdoor PA system provides sound reinforcement for play-by-play announcements, paging, pre-recorded messages, and music during sporting events.

The JBL AWC82 loudspeakers feature a compact two-way coaxial design with an 8" Kevlar-reinforced woofer, a 1" compression driver, and a wide 120° x 120° coverage pattern for consistent sound distribution across small athletic fields and spectator areas. Each speaker features a built-in 70V/100V multi-tap transformer with an 8Ω bypass and an IP56-rated enclosure for outdoor installations when mounted according to JBL's requirements. The JBL CSMA 2120 provides two independently powered 120W amplifier channels with configurable input routing and integrated 70V/100V speaker outputs. For example, selecting the 50W transformer tap on each AWC82 creates a combined 100W nominal speaker load when both loudspeakers are connected in parallel to one 120W amplifier channel at 70V, leaving 20W of nominal amplifier capacity. The amplifier also allows the two speakers to be connected to separate output channels when configured appropriately for the installation.

The GreenEdge mixer amplifier features eight audio inputs, independent input and output level controls, bass and treble adjustments, priority muting, VOX ducking, and optional remote volume control capability for managing announcements and music from a press box or other protected equipment location. The UC1S Ultra-Clear dynamic handheld microphone provides focused vocal pickup with an ultra-quiet On/Off switch, while the AtlasIED DS7E desktop stand offers adjustable microphone positioning from 8" to 13". The microphone connects through the included Pure Resonance Audio XLR-25 25ft male-to-female microphone cable and XLRF-3-PREP 3ft female XLR-to-prepped-wire patch cable. The XLRF-3-PREP connects to the male end of the XLR-25, with its prepared wire ends terminated at a compatible balanced Euroblock microphone input on the CSMA 2120.

The system also includes 100ft of West Penn 225 16/2 gray speaker wire for compatible speaker connections. This cable features stranded bare copper conductors and a CMR-rated PVC jacket intended for indoor riser installations. It is not rated for direct outdoor exposure, so exposed outdoor speaker wiring requires an appropriately rated alternative or a compliant protected wiring method. The amplifier and microphone equipment should be installed in a dry, protected location, while the AWC82 loudspeakers must be mounted with a minimum 5° downward aiming angle to maintain their specified IP56 weather-resistant rating. Final speaker transformer tap settings, wiring routes, and amplifier output connections should be determined according to the installation requirements.

Sound System Features

  • Complete small athletic field sound system for little league baseball fields, softball fields, school sports facilities, multi-sport parks, and outdoor public address applications
  • Two JBL AWC82 8" all-weather coaxial loudspeakers provide clear speech reproduction and full-range music playback
  • Highly weather-resistant IP56-rated speakers feature wide 120° x 120° coverage for consistent sound distribution
  • 8" Kevlar-reinforced woofers and 1" high-frequency compression drivers provide vocal clarity and smooth midrange reproduction
  • 250W average continuous pink-noise power handling per speaker with integrated 70V/100V multi-tap transformers and 8Ω bypass
  • JBL CSMA 2120 GreenEdge mixer amplifier provides two 120W output channels with eight mixer inputs and configurable output routing
  • Integrated 70V and 100V speaker outputs support distributed audio installations without requiring a separate external transformer
  • Example 70V configuration with both AWC82 loudspeakers set to 50W creates a combined 100W nominal load on one 120W amplifier channel
  • Independent input and output level controls with bass and treble adjustments allow convenient management of microphone and music sources
  • Priority muting, VOX ducking, and switchable phantom power provide flexible microphone and announcement management
  • Optional remote volume control capability using a compatible JBL CSR-V wall controller, sold separately
  • Pure Resonance Audio UC1S Ultra-Clear dynamic handheld microphone features a cardioid pickup pattern and ultra-quiet On/Off switch

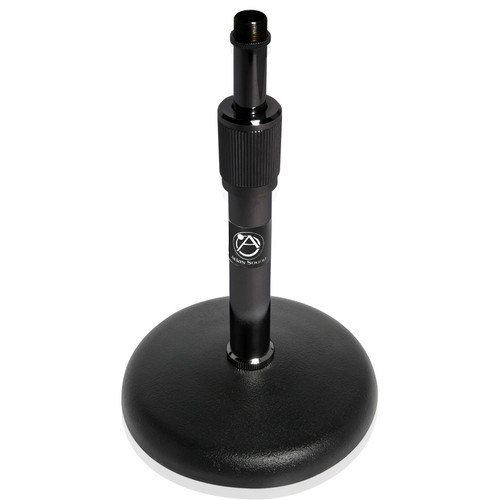

  • AtlasIED DS7E desktop microphone stand features adjustable height from 8" to 13", a grip-action clutch, and a weighted cast iron base

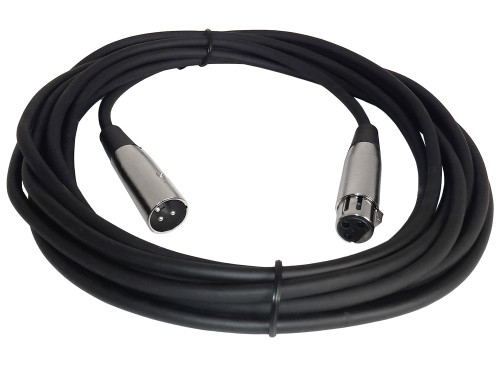

  • Includes one Pure Resonance Audio XLR-25 balanced male-to-female microphone cable, 25ft

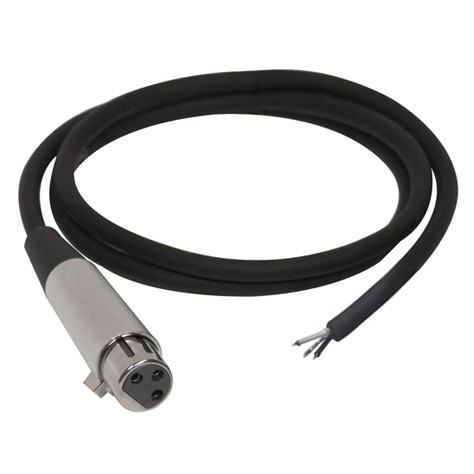

  • Includes one Pure Resonance Audio XLRF-3-PREP female XLR-to-prepped-wire patch cable, 3ft, for connection to a compatible Euroblock microphone input
  • Includes 100ft of West Penn 225 16/2 gray speaker wire with stranded bare copper conductors and a CMR-rated PVC jacket for suitable protected wiring applications

About the System Components

JBL AWC82 All-Weather 8" 2-Way Loudspeakers

The JBL AWC82 is a compact, two-way coaxial all-weather loudspeaker designed for clear speech reproduction and music reinforcement in outdoor athletic facilities, stadiums, schools, parks, and other commercial environments. Its 8" Kevlar-reinforced woofer features a 2" voice coil, while the 1" exit compression driver uses a high-temperature polymer diaphragm for reliable high-frequency performance. A wide 120° x 120° coverage pattern and advanced high-slope crossover network provide consistent coverage and smooth, natural midrange reproduction. The AWC82 offers 250W average continuous pink-noise power handling, an 80 Hz - 20 kHz frequency range (-10 dB), a 100 Hz - 20 kHz frequency response (±3 dB), and a built-in 70V/100V multi-tap transformer with 8Ω bypass. Its rugged ABS and glass-fiber enclosure, corrosion-resistant protective grille, and IP56 weather-resistant rating make it suitable for outdoor installation when mounted with the required minimum 5° downward aiming angle. Each speaker includes a heavy-duty U-bracket for mounting and a covered terminal compartment with a cable gland to help protect the connections.

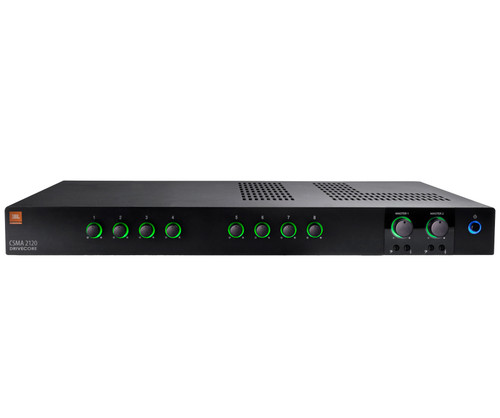

JBL CSMA 2120 2-Channel 120W GreenEdge Commercial Mixer Amplifier

The JBL CSMA 2120 is a high-efficiency commercial mixer amplifier that provides two independently powered 120W output channels for music, paging, and installed public address applications. Built with Crown DriveCore technology and manufactured under HARMAN's GreenEdge environmental initiative, the CSMA 2120 combines energy-efficient operation with flexible audio routing in a fanless 1U rackmount chassis. The amplifier features eight mixer inputs, balanced Euroblock mic/line connections, unbalanced RCA inputs, independent input and output level controls, and bass and treble adjustments for each output channel. Integrated 70V/100V distributed speaker outputs and 4Ω/8Ω low-impedance operation provide flexible loudspeaker connections without an external transformer. Additional features include configurable output routing, priority muting, VOX ducking, switchable 27V phantom power, and remote volume control capability using an optional JBL CSR-V wall controller. A universal 100-240V AC power supply, illuminated front-panel controls, and included rack-mount hardware support installation in commercial audio systems.

Pure Resonance Audio UC1S Ultra-Clear Dynamic Microphone with On/Off Switch

The Pure Resonance Audio UC1S Ultra-Clear handheld dynamic microphone is designed for play-by-play announcements, paging, public address, and vocal applications in schools, sports facilities, and commercial environments. Its cardioid unidirectional pickup pattern focuses on the primary sound source while reducing pickup of surrounding noise, making it suitable for speech reinforcement in active athletic environments. The UC1S features a frequency response of 50 Hz - 16 kHz with a midrange presence rise tailored for vocal clarity. A heavy-duty housing, durable steel mesh grille, built-in wind and breath pop filter, and ultra-quiet On/Off switch provide dependable performance for frequent announcements. The microphone includes a break-resistant microphone clip for mounting to a compatible microphone stand.

Features

JBL AWC82 All-Weather 8" 2-Way Loudspeakers

  • Highly weather-resistant IP56 rating when installed with a minimum 5° downward aiming angle
  • Consistent 120° x 120° broadband pattern control
  • 8" (200 mm) woofer with Kevlar-reinforced cone and 2" (50 mm) voice coil
  • 1" (25 mm) exit compression driver with patented design and high-temperature polymer diaphragm
  • Extraordinary clarity for speech, with extended frequency response for music
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange
  • 250W average continuous pink-noise power handling with high sensitivity for high SPL capability
  • 200W long-term system power rating over 100 hours
  • High-power passive crossover network
  • SonicGuard high-frequency overload protection
  • 80 Hz - 20 kHz frequency range (-10 dB)
  • 100 Hz - 20 kHz frequency response (±3 dB)
  • 94 dB sensitivity at 2.83V/1 m
  • Maximum SPL of 118 dB at 1 meter with direct 8Ω operation, with peaks of 124 dB
  • Built-in 200W 70V/100V multi-tap transformer or direct 8Ω low-impedance operation
  • 70V transformer taps: 200W, 100W, 50W, and 25W
  • 100V transformer taps: 200W, 100W, and 50W
  • Rugged ABS and glass-fiber enclosure with a corrosion-resistant powder-coated steel grille
  • Covered terminal compartment with cable gland for weather-resistant connections
  • Heavy-duty U-bracket included for mounting
  • M6 secondary safety attachment point on the rear panel

JBL CSMA 2120 Commercial Mixer Amplifier

  • Two independently powered 120W amplifier output channels
  • Eight mixer inputs with configurable output routing
  • Crown DriveCore technology for efficient operation and reliable audio performance
  • Manufactured under HARMAN's GreenEdge environmental initiative
  • Significantly reduced power consumption through high-efficiency amplifier design
  • Fanless, space-saving 1U rackmount design
  • Illuminated front-panel control rings for improved visibility and operation
  • Balanced Euroblock mic/line input connectors and unbalanced RCA inputs
  • Euroblock speaker output connectors
  • Independent bass and treble controls for each output channel
  • Independent input level and master output volume controls
  • Supports 70V and 100V distributed audio systems without requiring a separate external transformer
  • Supports 4Ω and 8Ω low-impedance loudspeaker connections
  • Individual Hi-Z configuration switches for each amplifier output channel
  • Automatic 70 Hz high-pass filter activation in high-impedance output mode
  • Remote volume control capability using an optional JBL CSR-V wall controller and compatible Ethernet cable
  • Priority muting for public address announcements
  • VOX ducking with adjustable activation threshold
  • Switchable 27V phantom power for compatible microphones
  • Configurable output routing allows selected inputs to feed either or both amplifier channels
  • Automatic energy-saving standby mode
  • Universal 100-240V AC, 50/60 Hz power supply
  • Rack-mounting hardware included
  • Lead-free RoHS compliant

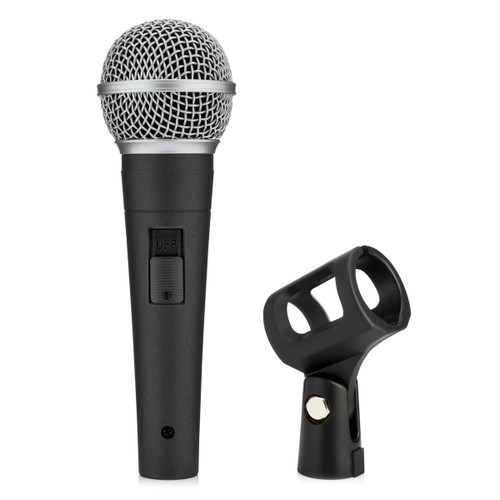

Pure Resonance Audio UC1S Ultra-Clear Microphone with On/Off Switch

  • Super heavy-duty microphone housing
  • Built-in wind and breath pop noise filter
  • Ultra-dependable quiet On/Off switch
  • Durable steel mesh grille
  • SwitchCraft connector
  • Frequency response tailored for vocal reproduction
  • Uniform cardioid unidirectional dynamic pickup pattern isolates the main sound source and minimizes background noise
  • Supplied with a break-resistant microphone stand adapter
  • Frequency response of 50 Hz - 16 kHz
  • Output impedance of 500Ω ±30% at 1 kHz
  • Suitable for indoor and outdoor events when used under appropriate conditions

System Includes

  • (2) JBL AWC82 All-Weather 8" 2-Way Loudspeakers
    • (2) Heavy-Duty U-Brackets
    • (2) Protective Terminal Compartment Covers with Cable Glands
  • (1) JBL CSMA 2120 2-Channel 120W GreenEdge Commercial Mixer Amplifier
    • (1) Rack-Mounting Kit
  • (1) Pure Resonance Audio UC1S Ultra-Clear Dynamic Microphone with On/Off Switch
    • (1) Microphone Clip
  • (1) AtlasIED DS7E Adjustable Height Desktop Microphone Stand
  • (1) Pure Resonance Audio XLR-25 Male-to-Female XLR Microphone Cable - 25ft
  • (1) Pure Resonance Audio XLRF-3-PREP Female XLR to Prepped Wire Patch Cable - 3ft
  • (100') West Penn 225 16/2 Non-Plenum Speaker Wire - Gray
