Atlas Sound APAKSMS Amplifier and Surface Mount Speaker Package System (Discontinued)

By AtlasIED

Atlas Sound APAKSMS Amplifier and Surface Mount Speaker Package System (Discontinued)

Name: Atlas Sound APAKSMS Amplifier and Surface Mount Speaker Package System (Discontinued)
Brand: AtlasIED
SKU: ATLAS-APAKSMS
Price: 950.94 USD
Availability: OutOfStock

Write a Review

Part #:

APAKSMS

Model #:

APAKSMS

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Atlas Sound Outdoor Commercial PA System Weather Resistant consists of a PA amplifier, four speakers and one subwoofer. A robust, flexible amplifier speaker package combo that is perfect for outdoor distributed background sound and music.

Description

The Atlas Sound APAKSMS Amplifier and Surface Mount Speaker Package System consists of a strategy PA601 amplifier, four SM42T ceiling speakers and one SM8SUB70 subwoofer.

The PA601 is a pure and simple amplifier that is perfect for distributed background sound. There is no MOH and advanced mix functionality to worry about, instead AtlasSound has created a unique loudness contour control that automatically gives just the right amount of low frequency.

The four SM42T weather resistant surface speakers provide high performance in a compact package. The full-range frequency response makes these speakers ideal for both indoor and outdoor venues.

And the SM8SUB70 subwoofer rounds out this package by delivering impressive low frequency response and maintaining an even coverage throughout the entire space.

Features

Atlas Sound's proprietary TRX WAVEGUIDE provides constant, accurate directivity at even the high end of the frequency range
The subwoofer's enhanced quality of the 70.7V/100V internal transformer is designed to match and with full range speakers with no additional amplification

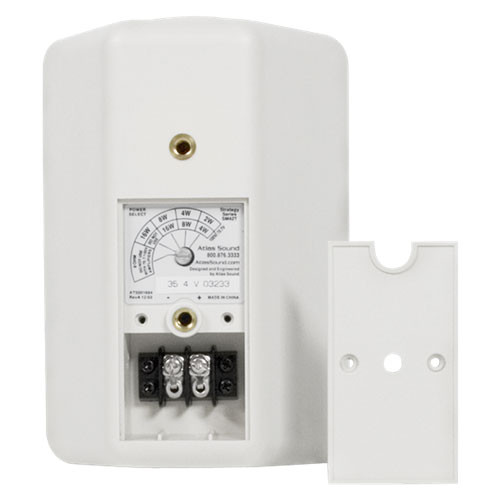

The speakers include a screwdriver-adjustable 30W 70.7V/100V transformers for use with distributed sound applications
Constructed of UV-resistant polypropylene
Weather Resistant
Atlas Sound's proprietary POLYGUARD high-frequency circuit prevents damaging transient signals from damaging the tweeter
Available with black or white speakers

Specifications

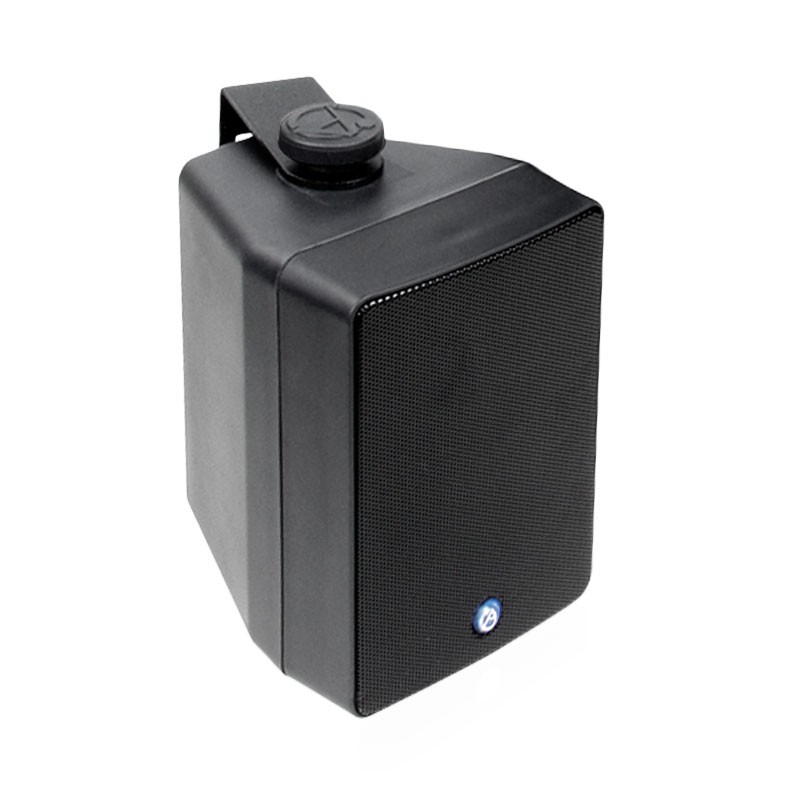

SM42T Speakers
Frequency Response	115 Hz - 16 kHz
Power	30W RMS
Sensitivity	88 dB
Impedance	8 Ohms (Transformer Bypassed)
Low Frequency	Driver 4" (102mm) Polypropylene Woofer
High Frequency	Driver 1" (25mm) Ferrofluid-Cooled Dome Tweeter
Enclosure	UV-Resistant Talc-Impregnated Polypropylene with Powder-Coated Aluminum Grille
Input Connections	Wire Terminal
Environmental	Indoor/Outdoor
Dimensions (H x W x D)	7" (178 mm) x 5" (127 mm) x 5.9" (150 mm)
Weight	1.5 lbs (0.68 kg)

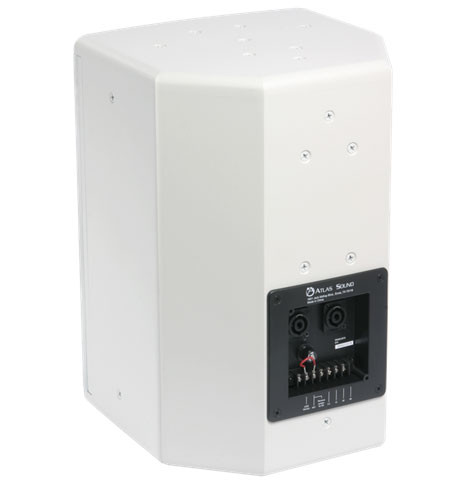

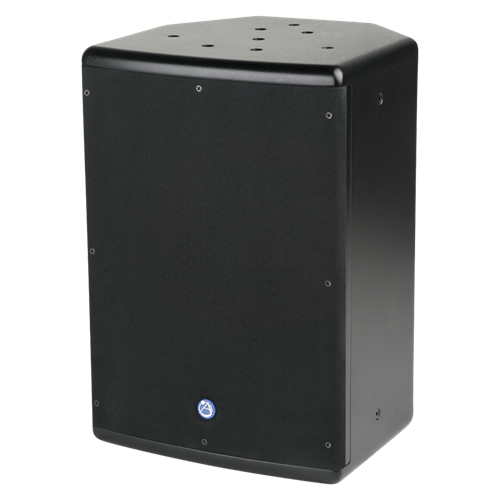

SM8SUB70 Subwoofer
Driver	8" Woofer
Crossover	120 Hz
Frequency Response	55 - 100 Hz
Power	100W
Maximum Sound Pressure Level (SPL)	107 dB
Connectors	Barrier strip for 70.1/100V or parallel 4 pole SpeakOn
Enclosure	915 cubic inch wood
Dimensions (H x W x D)	15.5" (394 mm) x 10.63" (270 mm) x 10.39" (264 mm)
Weight	19 lbs (17.5 kg)

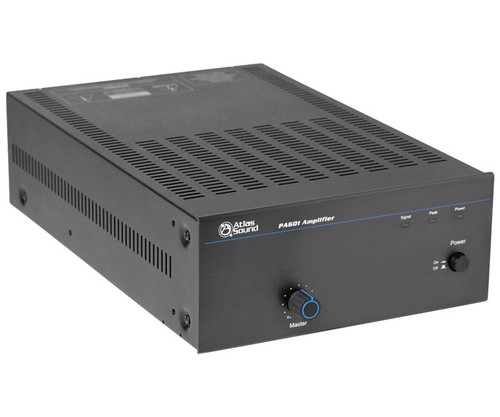

PA601 Amplifier
Power Output	60W RMS
Frequency Response	50 Hz - 20 kHz
THD + N	0.5% or Less @ 1 kHz, Rated Output 0.1% or Less @ 1 kHz, 5W Output
Sensitivity	500mV, 20 kOhms
Signal to Noise Ratio	>55 dB, Balanced >75 dB, Unbalanced

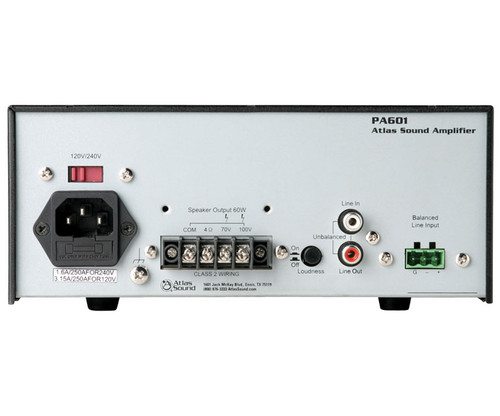

Connectors	1 x Power Input 1 x Line-Level Phoenix Input, Balanced 1 x Line-Level RCA Input, Unbalanced 1 x Line-Level RCA Output, Unbalanced 1 x Screw Terminal Strip Loudspeaker Output
Dimensions (H x W x D)	8.3" (211 mm) x 3.7" (94 mm) x 14" (356 mm)
Weight	14 lbs (6.6 kg)

System Includes

(4) SM42T 4" Ceiling Speakers
(1) SM8SUB70 8" Subwoofer
(1) PA601 60W Amplifier
