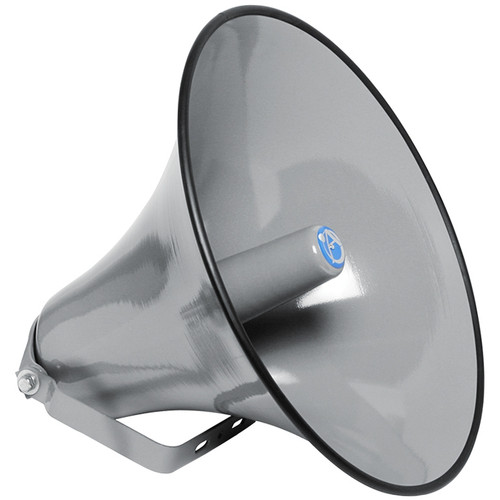

Atlas Sound DR-32 Uniform Dispersion Horn and PD-5VH 16Ω Compression Driver Package
This weather-resistant Atlas Sound DR-32 horn and PD-5VH compression driver package provides superior music and voice communications over distance and ambient noise. Ideal for outdoor applications that require intelligible audio transmission over long distances or through high background noise levels and are consistently recommended for sport facilities, amusement parks, church towers, warehouses, factories, military sites, transportation terminals, and other environmentally demanding locations.
The Atlas Sound DR-32 circular projector is equipped with a resonance damping ring for best response through an extended frequency range and has 95° uniform coverage. Weather-resistant units will accommodate Atlas Sound PD and SD Series compression drivers or any driver with standard 1.38" -18 male thread coupling. The integral "U-type" steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments. This rugged all-metal, exponentially-flared horns are finished in durable grey epoxy.
The Atlas Sound PD-5VH compression driver is a 40-watt driver with 2" voice coil machined to optimum tolerances and has an Alnico V-DG magnet which offers maximum temperature stability and optimizes output for yielding the lowest amplifier power requirements. It also provides terminals for matching direct to the 16 ohm voice coil. PD-5VH offers a plane wave frequency response of 110Hz - 4.1kHz. The durable compression driver mounts easily to large format horns that terminate in the standard 1.38"-18 male coupling thread.
