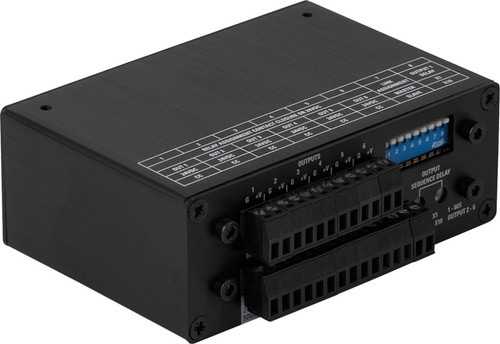

AtlasIED TSD-SEQ6 AC Sequence Controller
AtlasIED TSD-SEQ6 AC Sequence Controller
AtlasIED TSD-SEQ6 AC Sequence Controller
AtlasIED TSD-SEQ6 AC Sequence Controller
By AtlasIED

AtlasIED TSD-SEQ6 AC Sequence Controller

Write a Review
Part #:
TSD-SEQ6
Model #:
TSD-SEQ6
MSRP: $534.99
$431.99
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Atlas Sound TSD-SEQ6 AC Sequencer Controller features 6 outputs that are configurable individually to be either a 24VDC output or Hard Switch Contact Closure (CC). There are two separate output sequence time delay trimmers ranging from 1 second to 10 minutes.

Description
The Atlas Sound TSD-SEQ6 Sequencer Controller features 6 outputs that are configurable individually to be either a 24VDC output or Hard Switch Contact Closure (CC). There are two separate output sequence time delay trimmers ranging from 1 second to 10 minutes. Activation can be done via the front panel or remotely via Hard Switch CC, Momentary Switch or DC Voltage. The TSD-SEQ6 also incorporates an Emergency Power Down (EPD) port for local fire codes. You can link two TSD-SEQ6 units together giving you 12 sequenced outputs.

Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 100mA so any of the available TSD power supplies can be used with the unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.

Features
  • 6 Sequenced Outputs
  • Assignable 24VDC or Hard Switch Contact Closure (CC) per Output
  • Sequence 1 is Adjustable: Delay Time 1 Second to 10 Minutes
  • Sequences 2 - 6 are Adjustable: Delay Time 1 Second to 1 Minute
  • Remote Activation via 5-24VDC, Momentary Contacts, Hard Switch Contacts
  • Status Indicator for Each Output
  • Emergency Power Down "EPD" Port
  • Link Out for Two TSD-SEQ6 Controllers
  • Voltage Output for Remote LED Status Display
  • Separate Wiring Port for Each I/O
  • Removable Phoenix Style I/O Connectors

Specifications
Chassis Construction Black Aluminum
Sequence Status Indicator Green, Qty 1
Output Status Indicator Red, Qty 6
Power Consumption Current 100mA
Dimensions (H x W x D) 1.5" (39 mm) x 4" (101 mm) x 2.75" (70 mm)
Weight 6oz (0.165 kg)
