Audio Enhancement Achiever Classroom Audio System (Discontinued)

By Audio Enhancement

Audio Enhancement Achiever Classroom Audio System (Discontinued)

Name: Audio Enhancement Achiever Classroom Audio System (Discontinued)
Brand: Audio Enhancement
SKU: AE-Achiever

Write a Review

Part #:

1000-0001

Model #:

Achiever

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Description

The Audio Enhancement Achiever Classroom Audio System is powered by Panasonic audio technology that brings a new level of convenience to the classroom. With a revolutionary new patented remote control feature, the teacher is able to control the volume of the student microphone, his or her microphone or the auxiliary input level. Teachers, administrators, and students will appreciate the improved performance and ease of use.

The Handheld Student Microphone creates excitement among students. It is a small, lightweight microphone designed especially for the classroom. It facilitates student to teacher and student to student communication and encourages classroom participation. The Dome Sensor features four selectable frequencies. More than two infrared microphones can be used in the same classroom at the same time. This is a great tool for team teaching, guest speakers, and Itinerate teachers. The Audio Enhancement Advanced Ceiling Speaker powered by Panasonic technology was designed to specifically support the challenging and dynamic multi-media environments in today’s classrooms, while still providing optimum performance for teacher voice reproduction.

Features

Audio Power
Stereo: 2-channel stereo sound
Super heterodyne crystal-controlled Receiver
Signal-to-Noise: >90dB
Up to 7 sensors external sensors

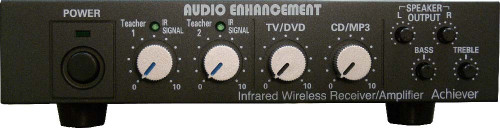

2 teacher controls, 2-band equalizer, 2 speaker volume controls, 1 power switch, 4 auxiliary inputs

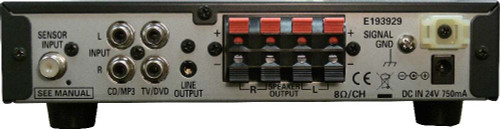

4-stereo auxiliary inputs for TV/DVD, CD, Computer & MP3, line output, 4-8 Ohms speaker connections

Specifications

Microphone Element	Uni-directional Electret
Controls	“PWR” , “MUTE”- Power/Mute: On/Off & Mute
Controls	“SELECT” - Select: Own - Other – Line input for remote control
Controls	Remote volume buttons (up/down)
Internal Controls	Channel selector (1-4) and Function selector switch (1-2)
External Connections	“AUDIO IN” - 3.5mm stereo jack - External audio auxiliary input
External Connections	“AUDIO IN” - 3.5mm stereo jack - External audio auxiliary input
External Connections	“MIC IN” - 3.5mm stereo jack - External lavaliere or headset microphone input
External Connections	“3.3V = IN” - Charging connector
External Indicators	“OWN”, “OTHER”, “LINE” LEDs
IR Channel Frequencies	2.3, 2.8, 3.2, 3.8 MHz
Battery Type	1 – AA, NiMH or Alkaline
Battery Life	8 Hours
Battery Charge Time	Maximum 8 hours
Battery Management	Internal microprocessor monitors battery condition
Battery Management	prevents over-discharge, over-charging and charging of alkaline batteries
Dimensions	3.35 H x 1.97 W x 0.98
Weight	0.18 lbs, (85g)
Microphone Element	Uni-directional Electret
Controls	Power slide switch - On/Off
Internal Controls	Channel selector (1 - 4) switch, 10 position rotary switch
External Connections	“AUDIO IN” - 3.5mm stereo jack - External audio line level input
External Indicators	“3.3V = IN” - Charging connector
Battery power	Green – OK Yellow – caution, low battery Red – battery too low turning unit off
Channel select error	flashing green indicates invalid ch“CHG” LED indicates status
Charging	Charging – Red, continuously lit Charging complete – LED off Charging fault – LED blinking
IR Channel Frequencies	Ch. 1 – 2.3 MHZ; Ch. 2 – 2.8 MHZ;Ch. 3 – 3.2 MHZ; Ch. 4 – 3.8 MHZ:
Battery Type	1 – AA, NiMH or Alkaline
Battery Life	8 Hours
Battery Charge Time	Maximum 8 hours
Battery Management	Internal microprocessor monitors battery condition andprevents
Dimensions (H x W x D)	8.15" (207.01 mm) x 1.61 (40.894 mm) x 1.45 (36.83 mm)
Weight	0.23 lbs, (105g)

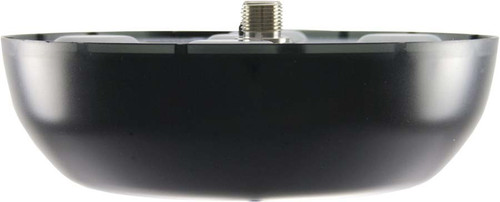

Optical Sensors	6 large aperture, solid-state diodes, with integral lens
Controls	Switch to select IR channels 1-2 or 3-4
Connector	Single “F” connector for signal and power
DC Power supply	Duplex power provided by receiver
Dimensions (Dia x H)	4.5" (114.3 mm) x 1.625" (41.3 mm)
Frequency Range	(-10 dB): 63 Hz to 20 kHz
Frequency Response	( ± 3 dB): 80 Hz to 12 kHz
Power Capacity (1 system)	60 W continuous pink noise
Sensitivity	88 dB (1W, 1m)
Nominal Impedance	8 ohms
Dimensions (Dia x D)	10.8125″ (274.64 mm) x 16.5″ (65.1 mm)
Net System Weight	3 lbs (1.36 kg)
Shipping Weight	32 lbs (14.51 kg)
