The Audio Enhancement Elite II Classroom Audio System provides additional functionality at a value price. This system is designed to meet the challenging needs of today’s multi-media classroom by providing a 30 watt amplifier, and a 5 channel mixer (2 infrared microphone channels, and 3 multi-media inputs).
The Elite II features Audio Enhancement’s industry leading dual channel infrared receiver which allows the use of two infrared microphones simultaneously. This provides the ability for the teacher to be using the system, and allows a handheld microphone to be passed around to the students, facilitating both teacher to student, student to student, and student to teacher communication. The flexible multi-media inputs of the Elite II, including a front panel input, provides the installer the ability to integrate the system with permanent classroom technology components; and provides the teacher with access to connect a music player or other device on the front panel.
| Audio Power | 30W |
|---|---|
| THD | |
| Stereo | 2-channel stereo sound |
| Frequency Response | 40 Hz to 15 kHz |
| Power Requirements | 24 Vdc, 2.5 amps. *Power supply included |
| Receiving Frequencies | Teacher 1: 2.30 MH, Teacher 2: 2.80 MHz |
| Signal-to-Noise | >90db |
| External Sensors | 360 degree sensor; 6 lensed diodes; Up to 7 sensors. *Optional couplers required |
| Front Panel Controls | 2 teacher controls, 2-band equalizer, 2 speaker volume controls, 1 power switch, 3 auxiliary inputs |

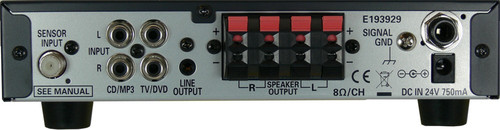

| Connections | 3-stereo auxiliary inputs for TV/DVD, CD, Computer, & MP3, Line Output Terminal |
| Connections | 4 8 ohms speaker connections |
| Microphone Element | Uni-directional Electret |
| Controls | “PWR” , “MUTE”- Power/Mute: On/Off & Mute |
| Controls | “SELECT” - Select: Own - Other – Line input for remote control |
| Controls | Remote volume buttons (up/down) |
| Internal Controls | Channel selector (1-4) and Function selector switch (1-2) |
| External Connections | “AUDIO IN” - 3.5mm stereo jack - External audio auxiliary input |
| External Connections | “MIC IN” - 3.5mm stereo jack - External lavaliere or headset microphone input |
| External Connections | “3.3V = IN” - Charging connector |
| External Indicators | “OWN”, “OTHER”, “LINE” LEDs |
| External Indicators | Blue LED under each label indicates current remote control selection |
| IR Channel Frequencies | 2.3, 2.8, 3.2, 3.8 MHz |
| Battery Type | 1 – AA, NiMH or Alkaline |
| Battery Life | 8 Hours |
| Battery Charge Time | Maximum 8 hours |
| Battery Management | Internal microprocessor monitors battery condition |
| Battery Management | prevents over-discharge, over-charging and charging of alkaline batteries |
| Dimensions | 3.35 H x 1.97 W x 0.98 |
| Weight | 0.18 lbs, (85g) |
| Microphone Element | Uni-directional Electret |
| Controls | Power slide switch - On/Off |
| Controls | Power Push-To-Talk (PTT) momentary switch - On/Off |
| Internal Controls | Channel selector (1 - 4) switch, 10 position rotary switch |
| External Connections | “AUDIO IN” - 3.5mm stereo jack - External audio line level input |
| External Indicators | “3.3V = IN” - Charging connector |
| External Indicators | “BATT” LED indicates status |
| Battery power | Green – OK Yellow – caution, low battery Red – battery too low turning unit off |
| “CHG” LED indicates status | Charging – Red, continuously lit Charging complete – LED off Charging fault – LED blinking |
| IR Channel Frequencies | Ch. 1 – 2.3 MHZ; Ch. 2 – 2.8 MHZ;Ch. 3 – 3.2 MHZ; Ch. 4 – 3.8 MHZ: |
| Battery Type | 1 – AA, NiMH or Alkaline |
| Battery Life | 8 Hours |
| Battery Charge Time | Maximum 8 hours |
| Battery Management | Internal microprocessor monitors battery condition andprevents |
| Battery Management | over-discharge, over-charging and charging of alkaline batteries |
| Dimensions | 8.15 H x 1.61 W x 1.45 D in |
| Weight | 0.23 lbs, (105g) |

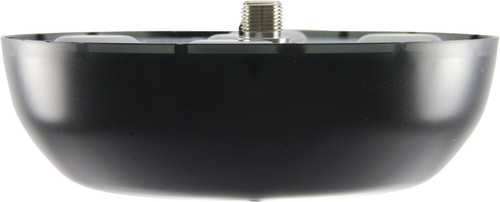

| Optical sensors | – large aperture, sold-state diodes, with integral lens |
| Controls | Switch to select IR channels 1-2 or 3-4 |
| Connector | Single “F” connector for signal and power |
| DC power supply | Duplex power provided by receiver. |
| Dimensions | 4.5 Diameter x 1.625 H inches (114.3 x 41.3 millimeters) |
| Frequency Range | 70 Hz to 15 kHz (-10dB) |
| Frequency Response | 100 Hz to 14 kHz +/- 2dB |
| Power Handling | 50 Watts continuous pink noise |
| Sensitivity | 88 dB 1 Watt/1 meter |
| Impedance | 8 Ohms nominal |
| Type | Vented enclosure |
| Mounting | Integral C-clamp |
| Dimensions (Dia x D) | 8.5" (216 mm) x 5.8" (147.3 mm) |
| Weight | 3.0 lbs (1.36 kg) |
• (1) 30W amplifier/receiver
• (3) Auxiliary inputs
• (1) WMT-IR infrared teacher microphone
• (1) Handheld student microphone/transmitter
• (1) Dome sensor
• (1) Plug in charger for handheld and teardrop microphone
