Audio Enhancement Sentinel CA-60 XD Classroom System (Discontinued)

By Audio Enhancement

Audio Enhancement Sentinel CA-60 XD Classroom System (Discontinued)

Name: Audio Enhancement Sentinel CA-60 XD Classroom System (Discontinued)
Brand: Audio Enhancement
SKU: AE-ST-XD-9001
Price: 1382.6 USD
Availability: OutOfStock

Write a Review

Part #:

ST-XD-9001

Model #:

XD Sentinel System

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Audio Enhancement XD Sentinel System is an affordable option for quality classroom audio. The system components work together flawlessly to improve learning, allow teachers to speak in nurturing tones, and adjust for optimal coverage from small classrooms to cafes, gyms, and other large spaces.

Description

The Sentinel System is an affordable option that provides the latest in classroom security. Without breaking the budget, the Sentinel System is designed specifically to provide classrooms with quality audio and is compatible with the SAFE System, an integrated silent alarm system. The Sentinel System includes the CA-60 amplifier, the XD receiver, and the teacher microphone.

The CA-60 Amplifier is an all-in-one audio solution for teacher voice amplification and the playback of multimedia sources. The CA-60 features Eco mode, which automatically reduces power consumption when no signal is present. This system features a PA voice override, so announcements can always be heard. The Teacher Microphone enables the teacher to control the volume of the student microphone, his or her microphone, and the auxiliary input level.

These systems can be modified to accommodate your specific needs, for more information contact our talented sales engineers at 1-888-256-4112.

Features

CA-60 Amplifier:

50 Watts of power
Powers 4+ speakers
24 VDC power supply
Automatic switching between front and rear panel inputs
Three variable gain line inputs:
Line 1, Line 2, Line 3
One traditional variable gain line output with front panel volume control
RJ45 input for XD Receiver (provides both audio and power)
3-Band Equalization
Slim design and efficient heat dissipation allows for easy mounting in a variety of applications including:

Attached to media carts
Behind interactive whiteboards
Inside cabinetry
Up in the ceiling
Dimensions: 7.5" (H) x 4" (W) x 1.5" (D)

CS-12 Ceiling Speakers:

Frequency range of 70 Hz to 15 kHz (-10dB)
Tuned ported enclosure provides superior bass response
Integral C-clamp mounting

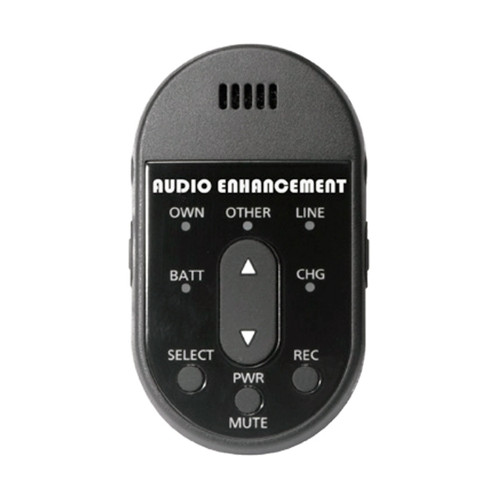

XD Teacher Microphone:

Auxiliary line level input connector allows for playback of any device using a standard 3.5 mm jack
Can be used either with built-in clip or included lanyard
Rechargeable Lithium-Ion Battery

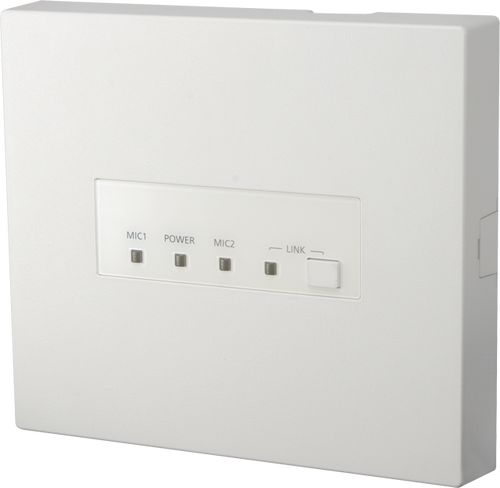

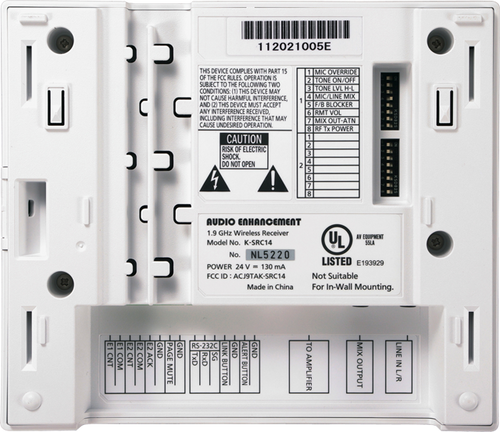

XD Receiver:

Adjustable for optimal coverage from small classrooms to cafes, gyms, and other large spaces
Remote control via Teacher Microphone of both microphones and auxiliary levels
Line level 3.5 stereo mini jack (monaural mix)
RJ45 line level output, line level 3.5 mm stereo output
Feedback blocker on both microphone channels

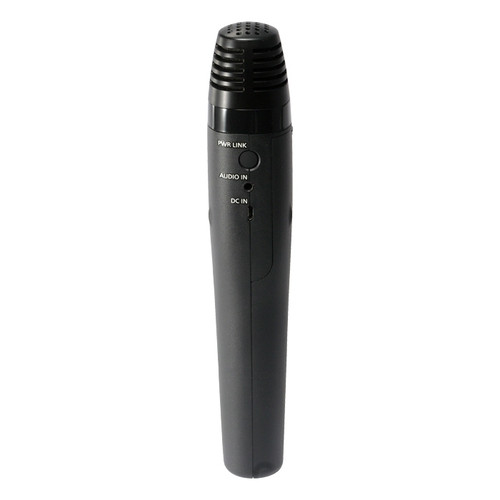

XD Student Handheld Microphone:

Uni-Directional electret capsule increases microphone sensitivity
Auxiliary line level input connector allows for playback of any device using a 3.5 mm jack
Push-to-Talk function allows momentary microphone activation
